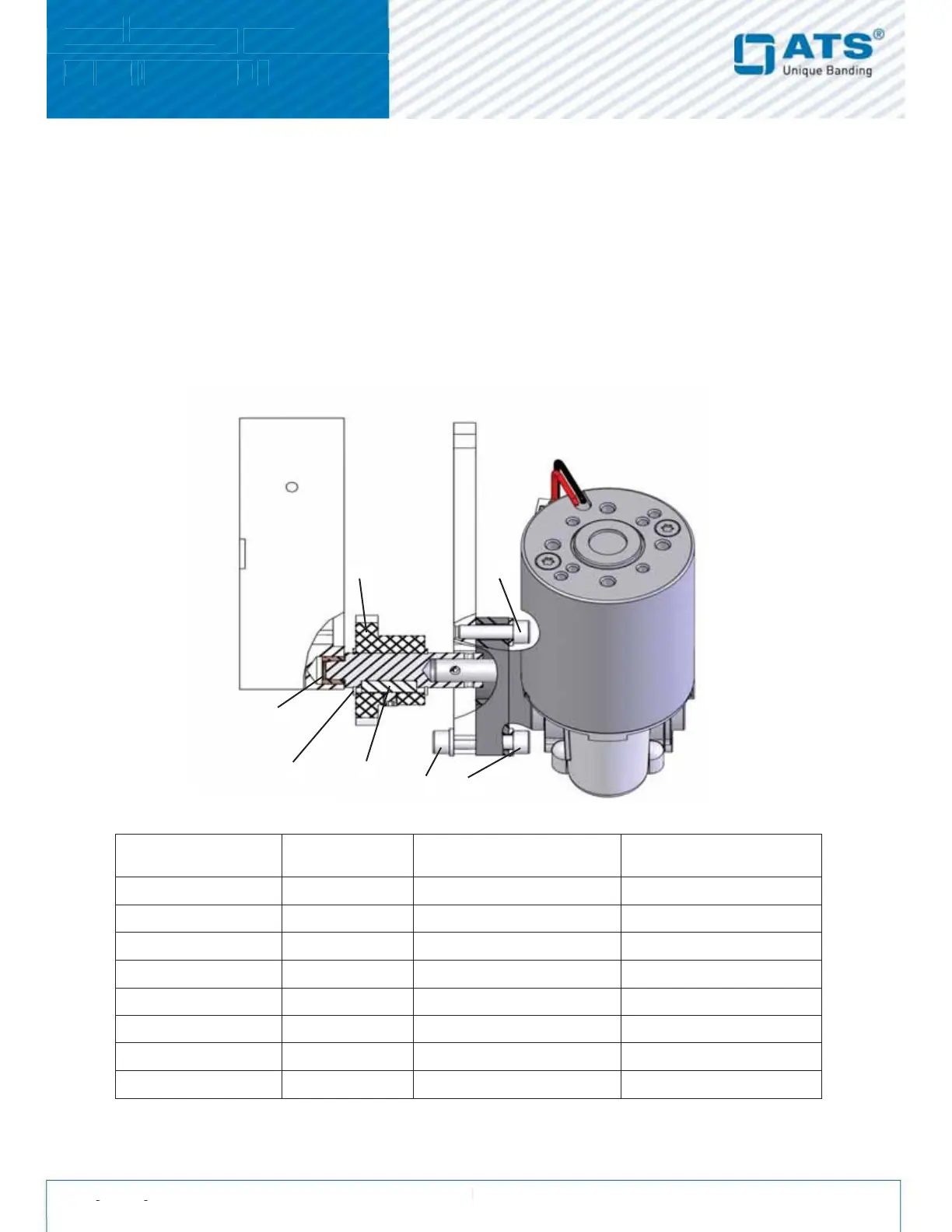

2.8. Bandmotor M2
The tape motor and clutch shaft transport the tape during infeed and draw down. The clutch shaft is driven by a
spur gear wheel (1) attached to the motor shaft.
2.8.1. Replacing the bandmotor
1. Remove the fixing screws (3) on the tape motor and pull it back out of the friction bearing.
2. If necessary, replace the spur gear wheel (1). To do this, first remove the retaining ring (4).
3. Pay attention to the key (5) when taking off the spur gear wheel.
4. To mount the new tape motor, follow the same procedure but in reverse order.
Machine
Band width
Gear ratio
Replacement Part
Number
US-2000 AD
15
i = 5:1
ATS-244065
US-2000 AD
20
i = 5:1
ATS-244065
US-2000 AD
30
i = 5:1
ATS-244065
US-2000 AD
50
i = 5:1
ATS-244158
US-2000 AD
60
i = 5:1
ATS-244265
US-2000 LD
20
i = 10:1
ATS-244166
US-2000 LD
30
i = 10:1
ATS-244166
US-2000 LD
50
i = 10:1
ATS-244165
2.8.2.
M2
gear ratio
(2)
(2)
(2)
(1)
(4)
(3)
(5)
