1 Getting Ready
In order to use the aD5 you’ll need the following (commercially available) items.
Audio
• Headphones or powered speakers
• If you connect the headphone port of your PC or tablet to the AUDIO IN jack, you’ll be able to
play along with songs.
Pads
• Drum pads, cymbal pads, kick triggers, etc.
• Stands, drum sticks, kick pedal, drum throne, etc.

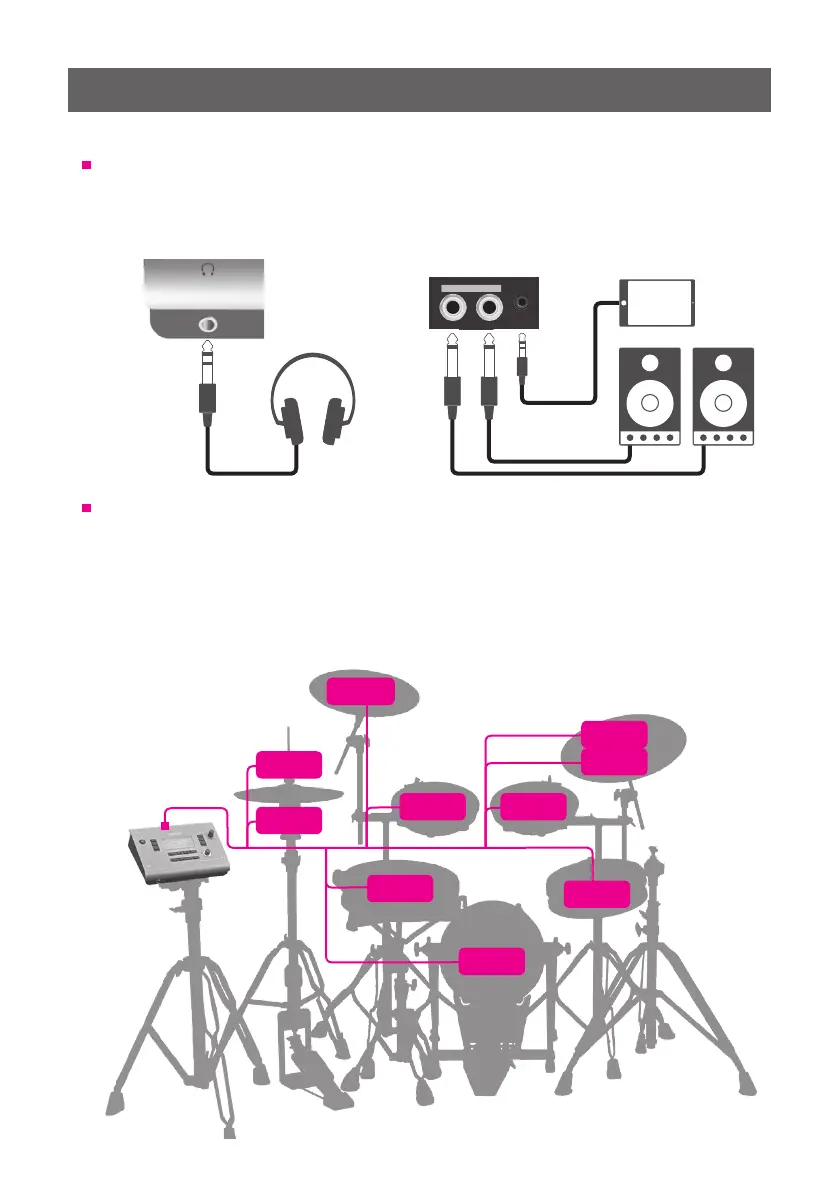

Connect the aD5’s multi-trigger cable to your pads.
Note the connection destination written on each plug of the multi-trigger cable, and connect them
as shown in the illustration.
L R
Stereo phone
Mono phone
Stereo mini
AUDIO IN
USB
SD CARD
DC IN
2
1
AUX
ATV LINK
MULTI TRIGGER
TRIGGER INPUT
R OUTPUT L
T3
SN
T1 T2
RD
CR
HH
CTL
K
BEL
