Connecting the AXIR
CONNECTIONS:

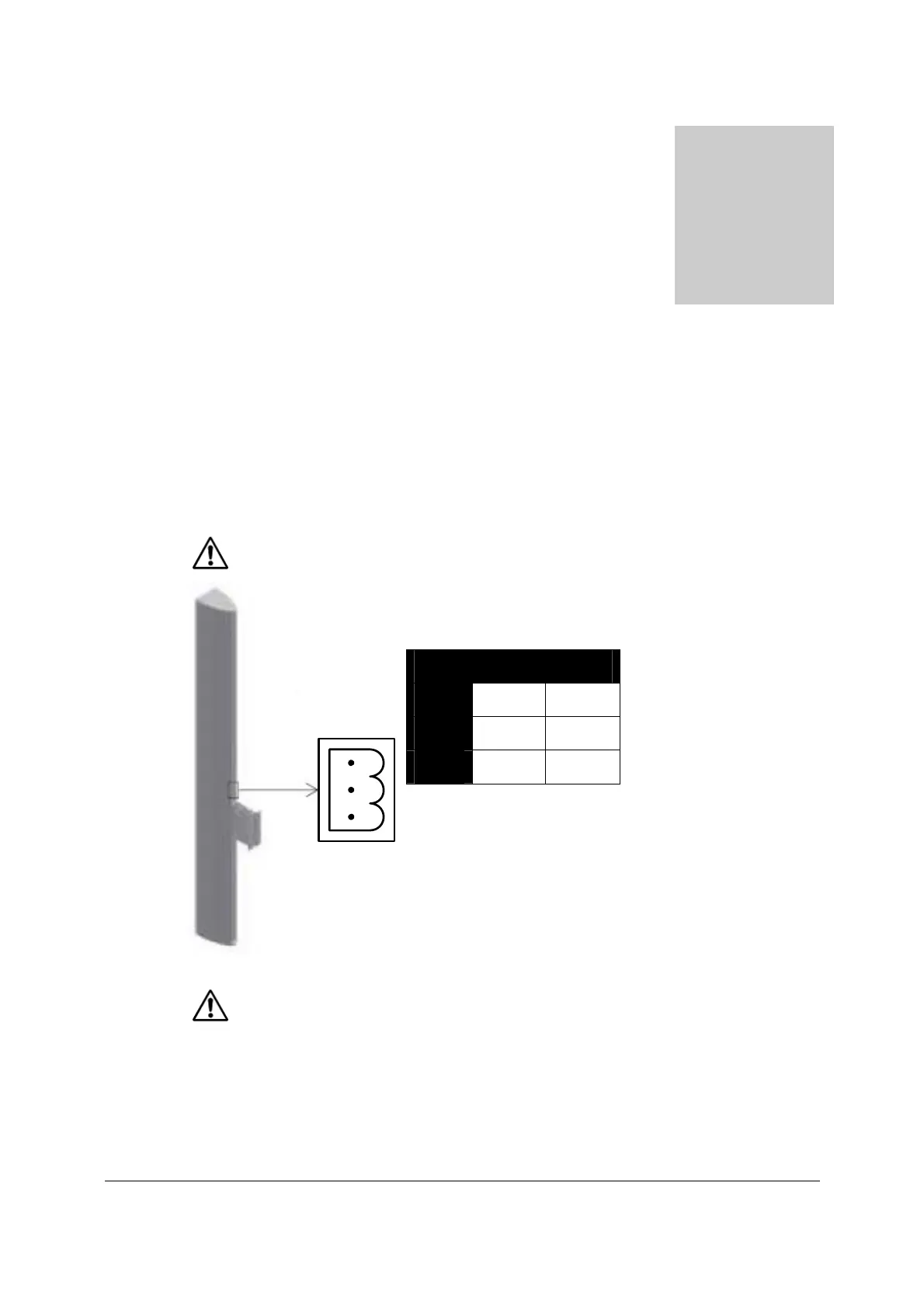

At the back of the AXIR is a 3 pole euro terminal block connector provided to connect
the amplifier with the AXIR column speaker.
Depending of the speaker is used in 100V applications or low impedance applications,
the wiring diagram is different. (This is done for protection reasons of the speaker)
For 100V applications are the two outer pins used (Pin 1 & Pin 3) and for low
impedance applications is the centre pin and one outer pin used (Pin 1 & Pin 2).
Warning: Notice the polarity markings when wiring the loudspeaker cables.
Warning: The AXIR is default set for use in 100V applications, for use in low
impedance applications, the internal switches of the speaker must be switched.
Chapte
r
3
PIN 100V 6 Ω
1 - -
2 N.C. +
3 + N.C.
1
2
3
