Installation
To achieve the best possible intelligibility and sound quality with a column speaker,
there has to be paid extra attention to the proper mounting of the speaker.
The dimensions of the desired listening area has to be determined where out the
correct mounting height and angle can be derived.
A step by step installation procedure describes the method to determine the mounting
height and angle for the AXIR.
DETERMINING LISTENING AREA AND MOUNTING HEIGHT
STEP 1:

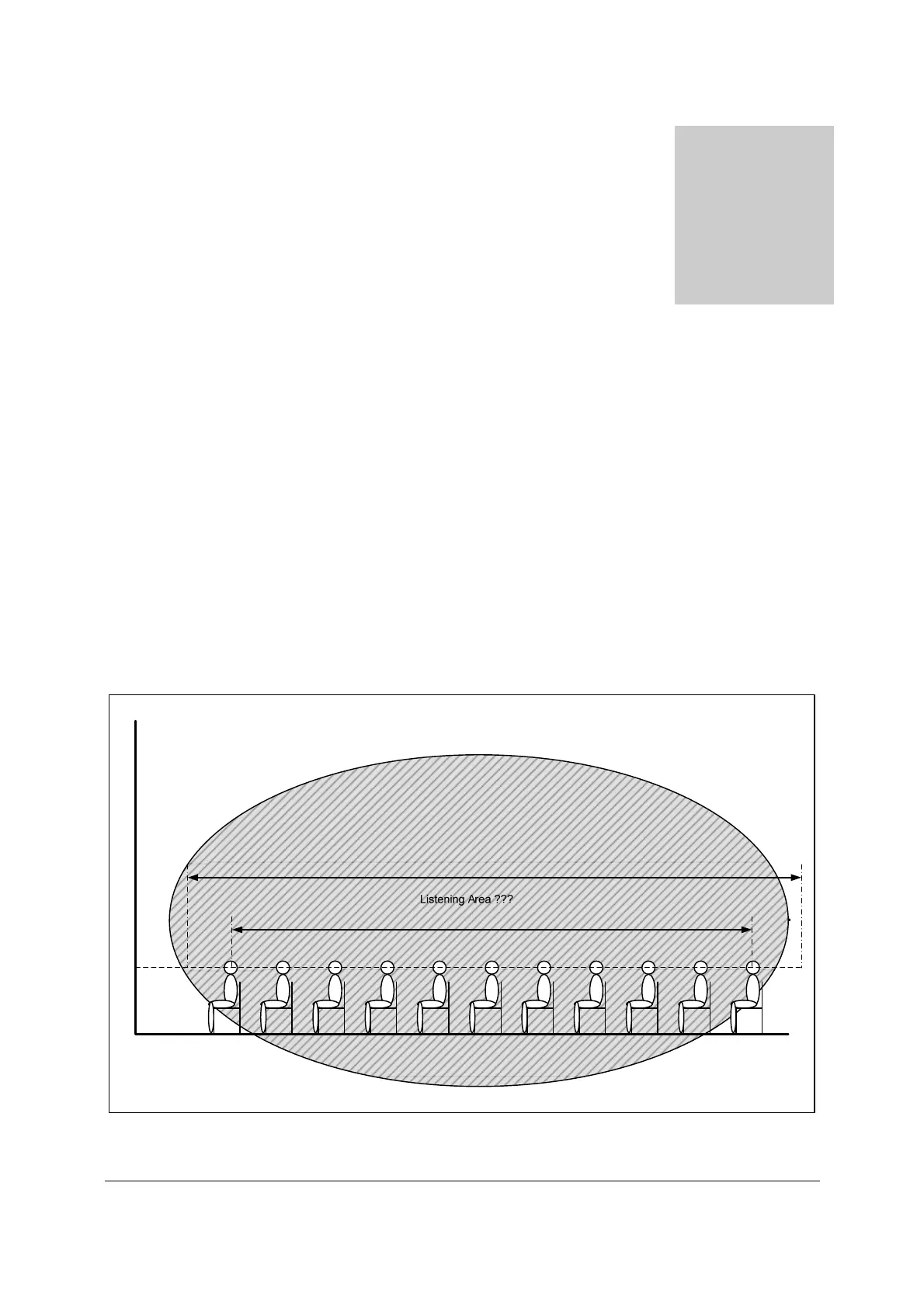

Determine the dimensions of the desired Listening Area. This is a horizontal plane at the
level of the listeners ears. Refer to the dashed line in following figure.
Chapte
2
