10
LINE TRANSFORMER POWER TAPS:
To adjust the power taps of the speaker, the front cover plate with the AUDAC logo
should be removed very carefully. This is best done by carefully sticking a flat object
under the cover plate (e.g. a small flat screwdriver). The cover plate is coming loose,
without performing large forces.

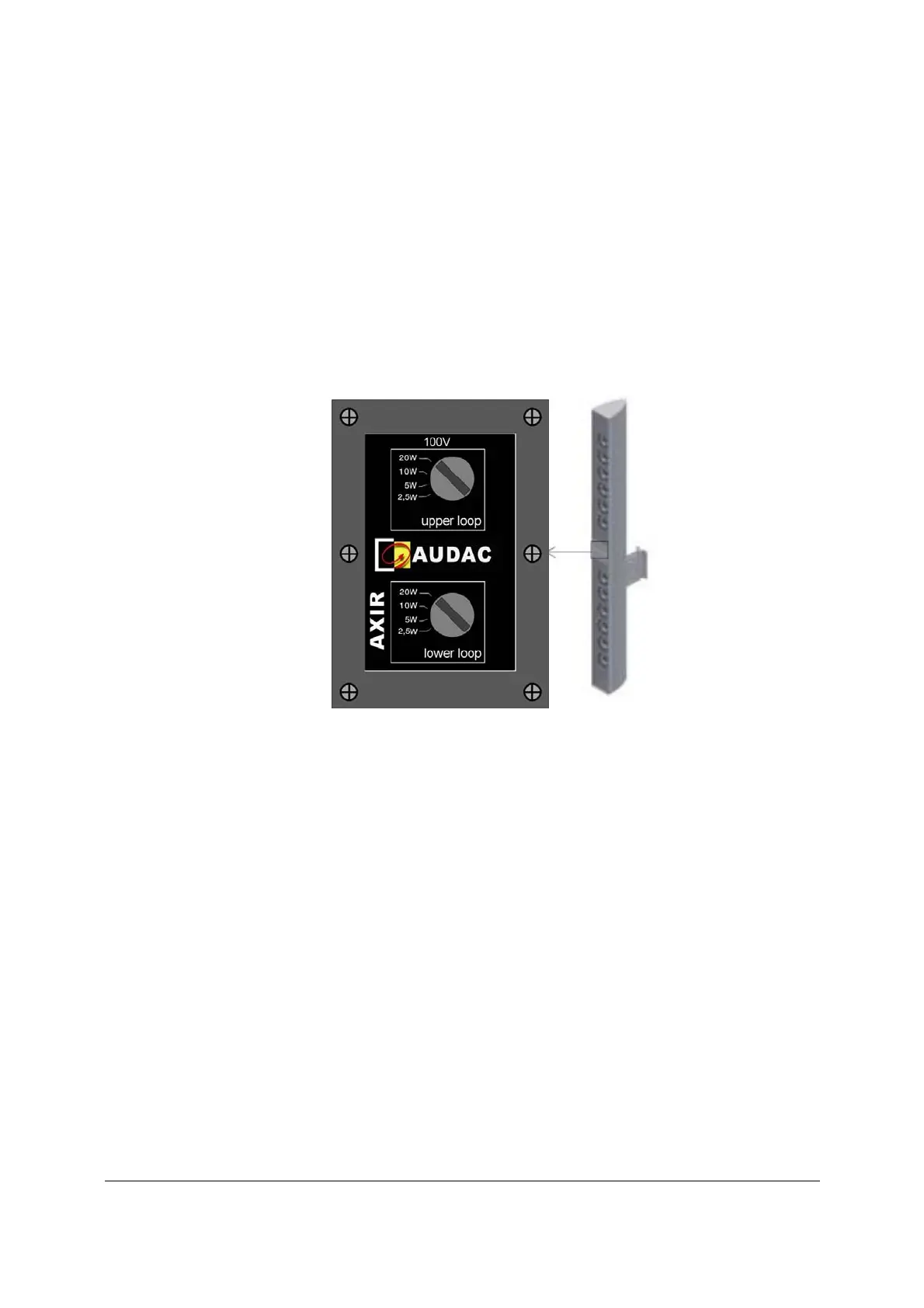

After the cover plate is removed, the two power tap selector switches are visible.
The power taps can be set to 4 different powers for each individual speaker section.
Adjust the power taps by using a screwdriver to turn the rotary switch.
1. 20W
2. 10W
3. 5W
4. 2,5W
