Connections

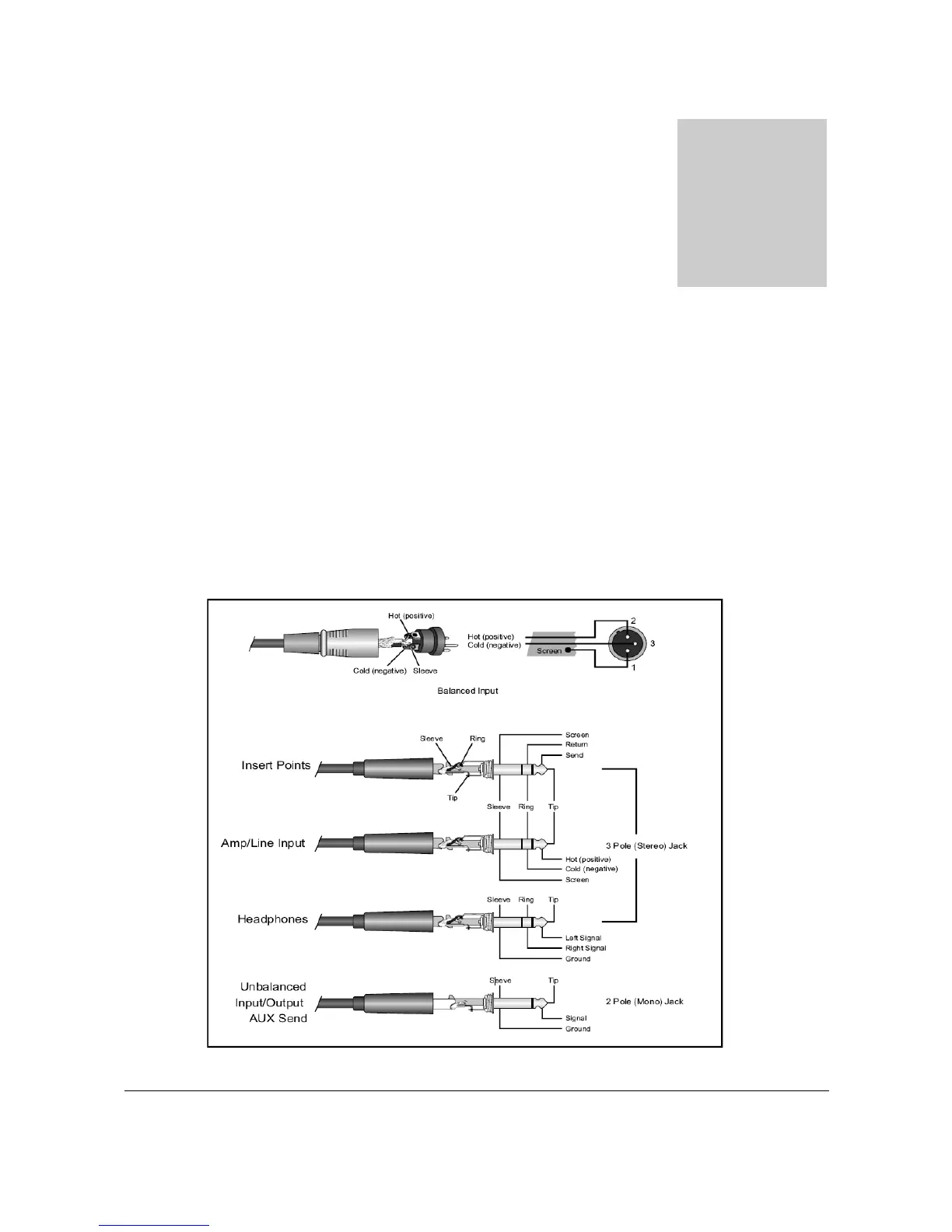

AUDAC products are wired to reflect accepted wiring practices used throughout the world.
Balanced XLR connectors are wired as described:
Pin #1 Shield
Pin #2 Positive
Pine #3 Negative
Balanced 1/4” TRS connectors are wired as described:
Tip is Positive
Ring is Negative
Sleeve is Shield
