Chapter 1
Pin connections and connectors
CONNECTION STANDARDS
The in- and output connections for AUDAC audio equipment are performed corresponding to international wiring
standards for professional audio equipment.

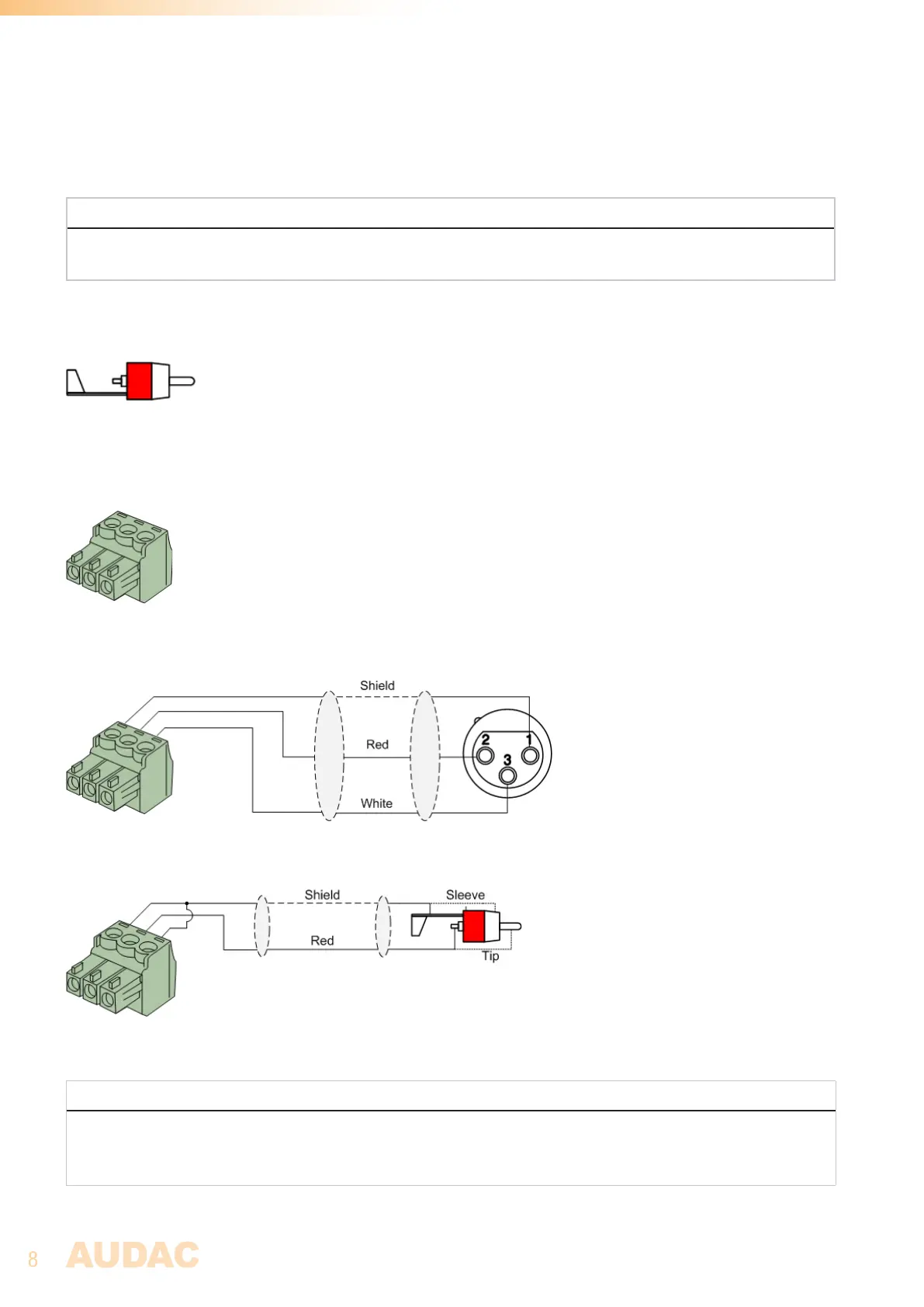

Cinch (RCA):
For unbalanced line input connections.
Tip: Signal Sleeve: Ground
White: Left Red: Right
3-Pin Terminal block:
For balanced signal input connections
Left: Signal - (XLR Pin 3)
Center: Signal + (XLR Pin 2)
Right: Ground (XLR Pin 1)
For balanced signal input connections
:
For unbalanced signal input connections
RS232 / RS485 / TCP/IP
The MFA has RS232, RS485 and TCP/IP ports which all accept the same commands. The complete command
set to control the MFA is available in the MFA commands user manual which is freely downloadable on https://
manuals.audac.eu/mfa208
