ATTENTION
The twisted pair cabling must always be ‘straight’. In case of self
made cabling, it must be wired as described in this chapter to make
the system work properly.

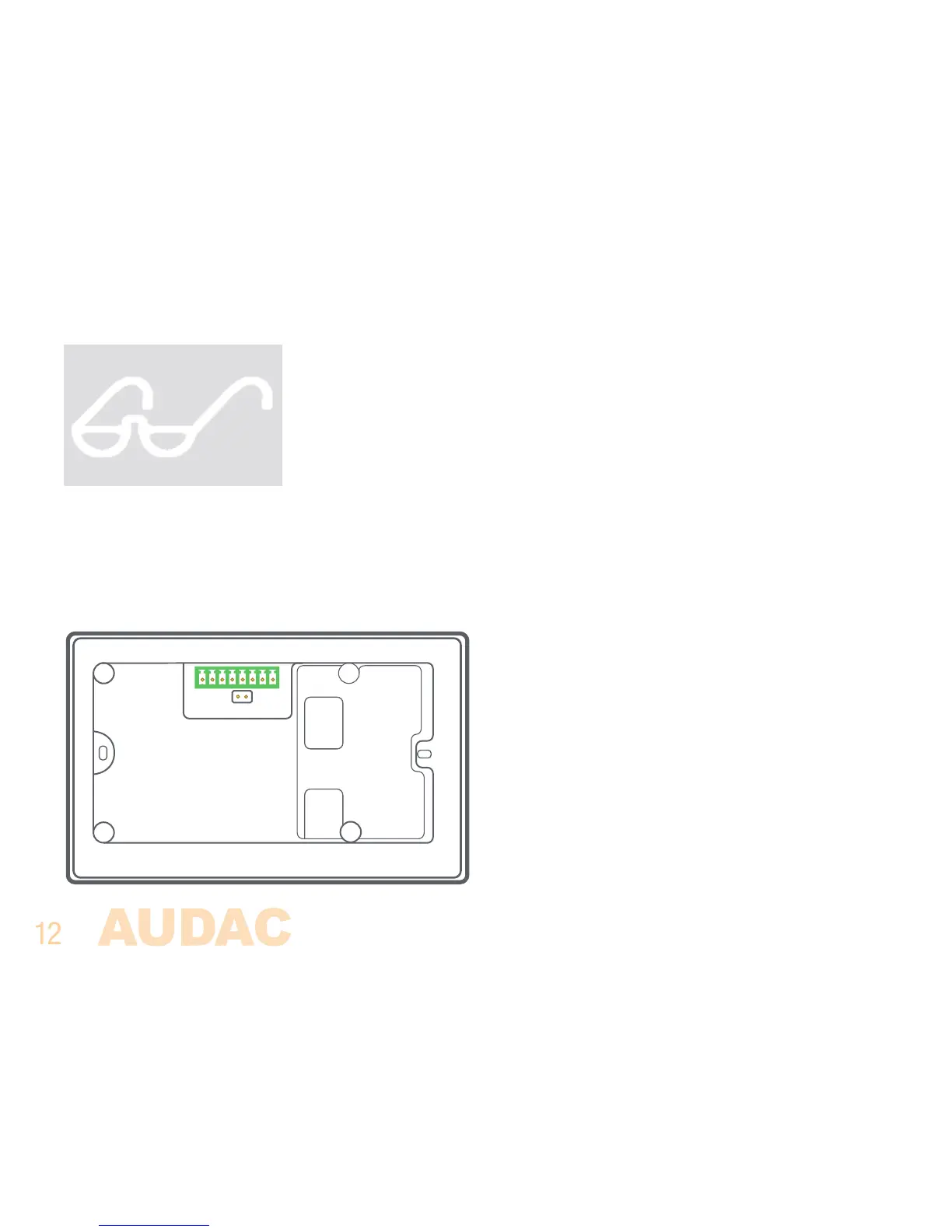

The twisted pair cable should be connected to the 8-pin Euro-Terminal Block connector on the
rear side of the wall panel. The connector starts with Pin1 on the left side to Pin8 on the right side.
These Pin’s should be connected to the corresponding Pin’s of the RJ45 connector.
Pin 1 White-Orange
Pin 2 Orange
Pin 3 White-Green
Pin 4 Blue
Pin 5 White-Blue
Pin 6 Green
Pin 7 White-Brown
Pin 8 Brown
