6.1) DMS-2021A
• Click on the TAB SpeakerLine -
• Double click on the rst free row in the main window.

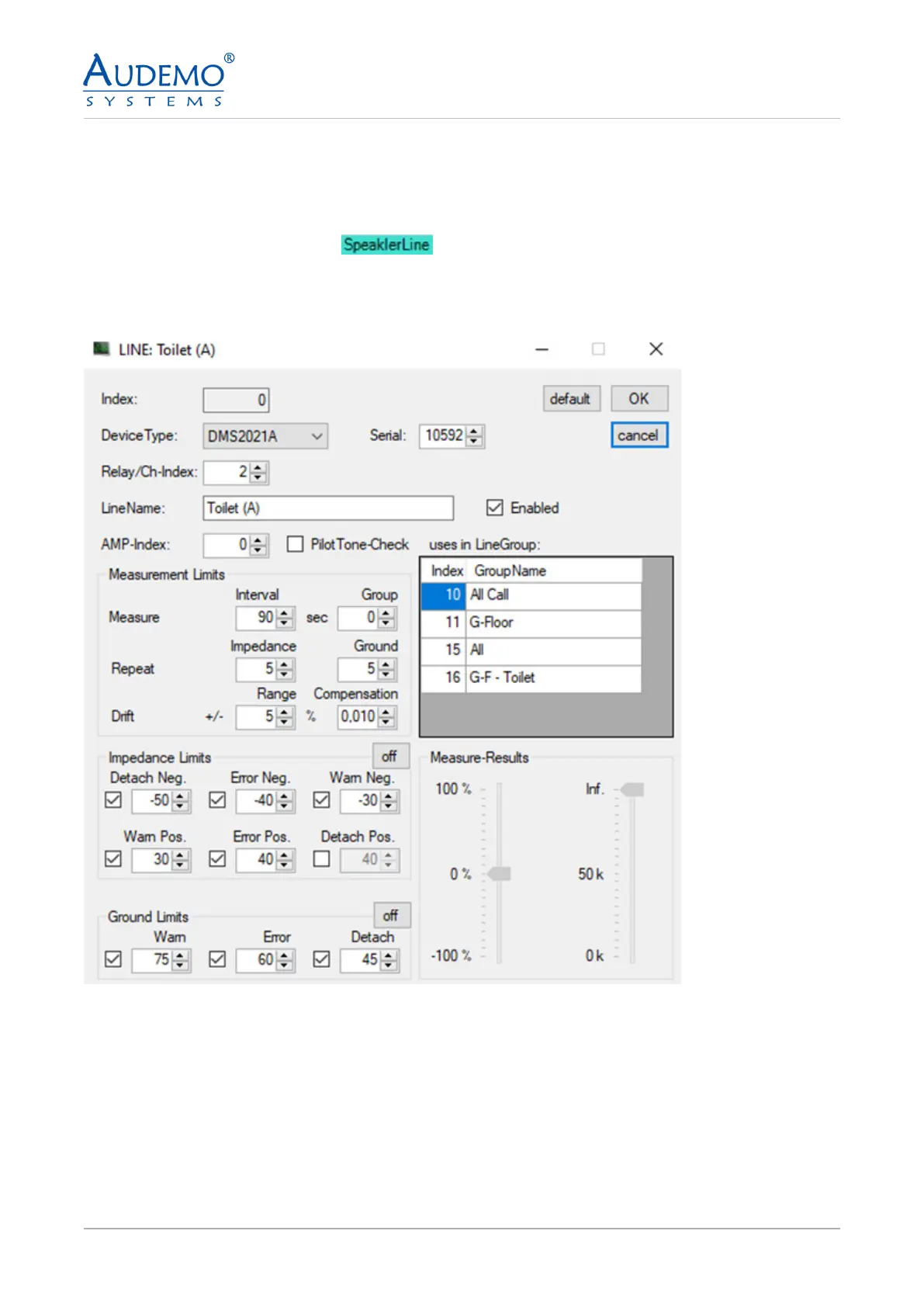

• The following window appears:
• Look for your device under Device Type. In this case DMS-2021A
• Enter a serial number if it was not recognized by the system.
• For Relay/Ch-Index, enter the position on the relay to which this line is connected
• Give the line a unique name for “Line Name”.
• Enter the index number of your amplier under AMP index
6. Setting up speaker lines (Speaker Line)
