6.2) DMS-2061A

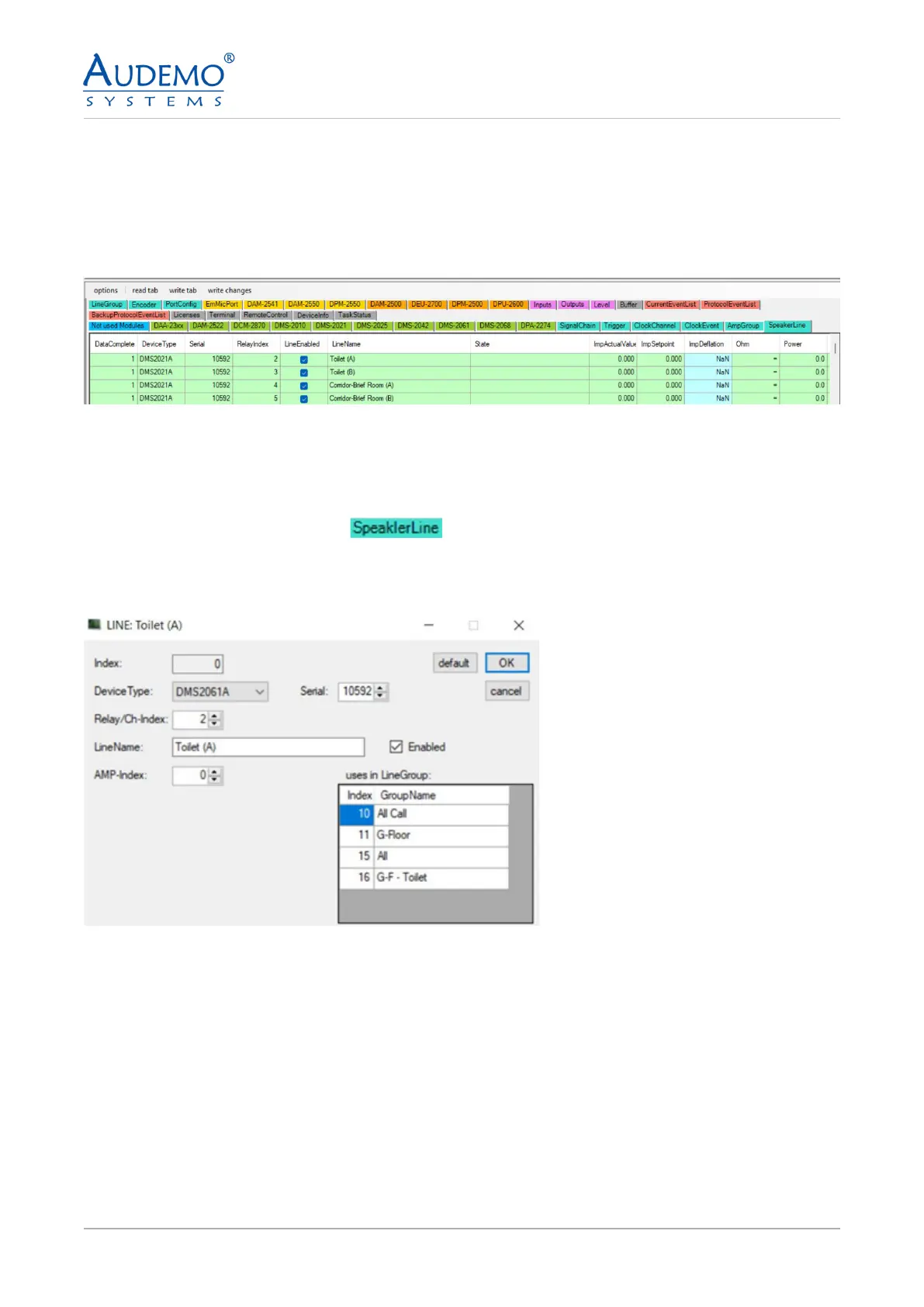

• Click on the TAB SpeakerLine -
• Double click on the rst free row in the main window.
• The following window appears:
• Look for your device under Device Type. In this case DMS-2061A
• Enter a serial number if it was not recognized by the system.
• For Relay/Ch-Index, enter the position on the relay to which this line is connected
• Give the line a unique name for “Line Name”.
• Enter the index number of your amplier under AMP index
• Check “Enabled” to activate the line you have congured.
• Note: The “uses in LineGroup” display does not show any line groups when speaker lines are set up for
the rst time. This only lls up when you have created line groups, see point 7.
• Click OK to apply your settings.
• Check “Enabled” to activate the line you have congured.
• Note: The “uses in LineGroup” display does not show any line groups when speaker lines are set up for
the rst time. This only lls up when you have created line groups, see point 7.
• Click OK to apply your settings.
Example image: After setting up several speaker lines
Note: Repeat the process as described in point 6.1 until you have set up all your speaker lines.
