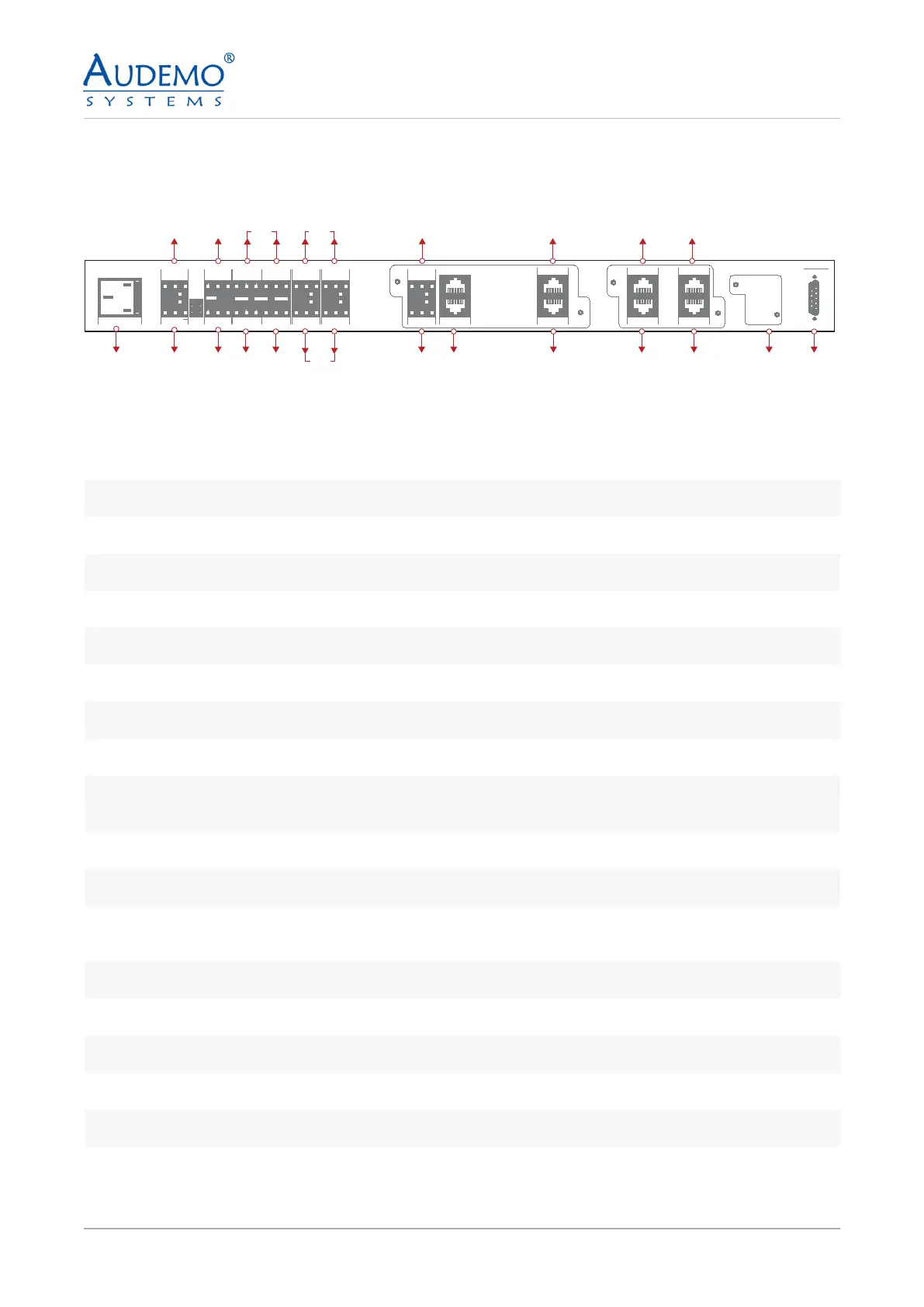

Rear Panel:
01 02
03
AC 230V
FUSE 13.15A
PF
-
24V
+
DPM-2500M
AUDEMO
S Y S T E M S
®
RS-232
SPDIF IN
+
-
REM-SWITCH
IN 1 IN 2 IN 3
IN 4 IN 5
COM
REL 1 REL 2
NC
COM COM
NO NC NO
+24V
SIG
GND
DCF-77
GND
LIFT
ERROR
NO
COM
NC
SHLD
MIC 3
+
-
SHLD
MIC 5
+
-
SHLD
MIC 3 MIC 4
+
-
SHLD
+
-
SHLD
EMERG-MIC 2
EMERG-MIC 1
REM-MIC
NETW.
NF OUT 2
+
-
SHLD
+
-
SHLD
NF OUT 1 IO-MOD
04
04
09 12 14 16
06 07 09 10 11 13 15 17 18
05 08
08
1 240AC 50/60Hz MAIN POWER SUPPLY
2 +24VDC SECONDARY POWER SUPPLY
3 SPDF IN
4 PROGRAMMABLE CONTROL INPUTS(5 INPUTS-NO/NC)
5 PROGRAMMABLE RELAY OUTPUTS
6 GPS PORT
7 ERROR OUTPUT
8 PROGRAMMABLE LINE/MIC INPUTS
9 PROGRAMMABLE LINE OUTPUTS
10
IO-MOD(2 Nos):CONTROL THE DAM-2525 AND DAA-237X RANGE OF AMP+CONTROL AND POWER
FOR(DMS-2021A+DMS-2022A)
11 PRIMARY DANTE PORT(DMS-2034A)
12 SECONDARY DANTE PORT(DMS-2034A)
13
WALL MOUNT MICROPHONE (PRIMARY PORT TO DRIVE DAISY CHAIN OF REMOTE PAGING MICRO-
PHONES)
14 SECONDARY PORT TO DRIVE DAISY CHAIN OF REMOTE PAGING MICROPHONES
15 ETHERNET PORT (INTEGRATION WITH MODBUS)
16 THIRD PORT TO DRIVE REMOTE PAGING MICROPHONES OR TO DRIVE PoE MICROPHONES
17 PROVISION TO DRIVE PERIPHERAL DEVICES LIKE DPA 2274A /B AND DMS-2041A
18 SERIAL LINK FOR PROGRAMMING
DPM-2500 A
