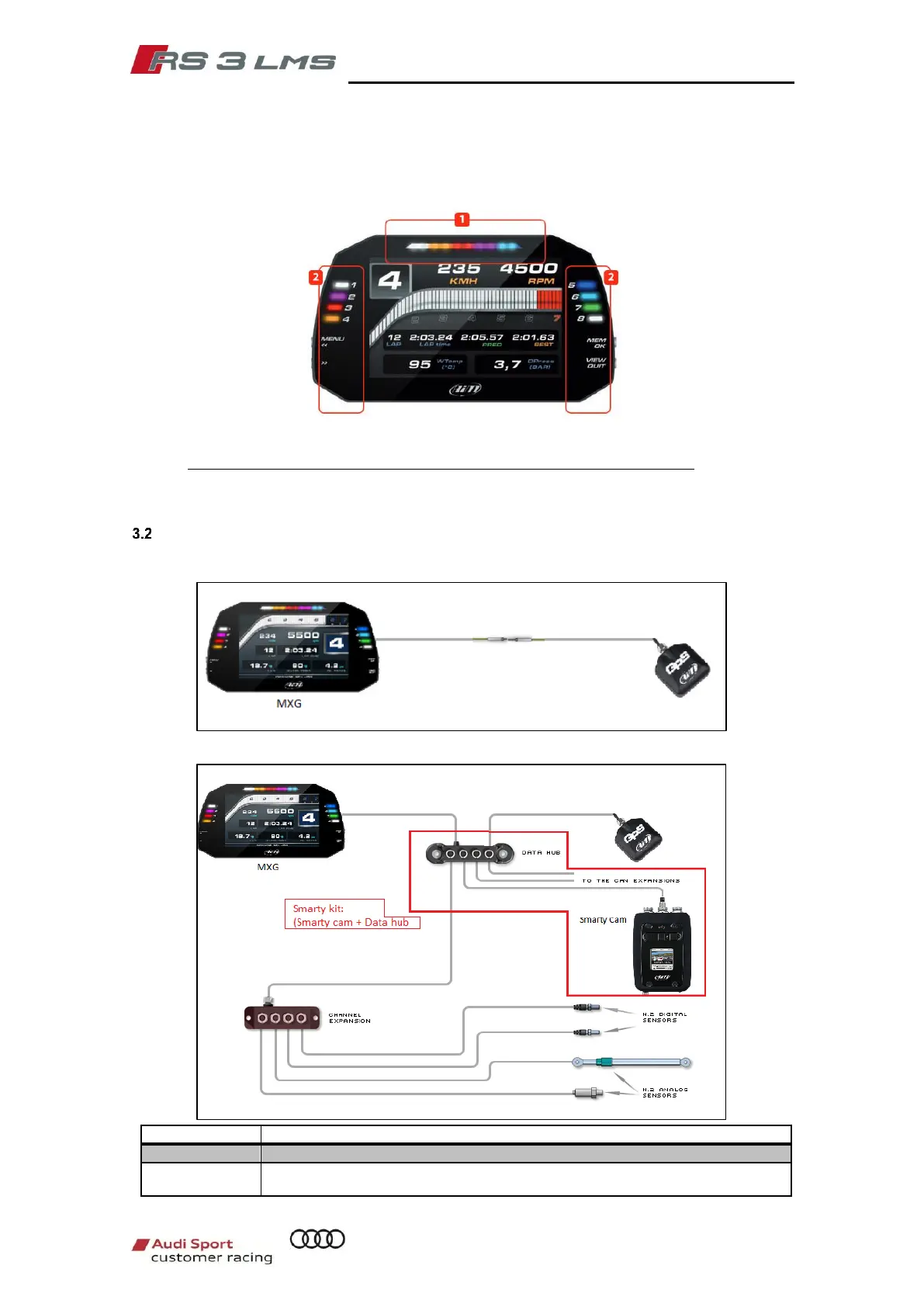

1. On the top of the display there are ten gear flash leds that can be freely configured. The rpm value
at which to turn it on and the colour can be defined. Gear dependent lights can be also defined.
2. On both sides of the screen there are eight alarm leds that can be freely configured. The conditions
to turn them on and off and the colour can be defined. Also messages on a red ribbon in the lower
part of the screen and completely screen pop-up messages can be defined.
Note:
ļ IMPORTANT: the change of the alarms or shift lights is under user responsibility. Car is delivered
with Audi Sport recommendation. Before changing them it is advisable to do a backup of the
standard configuration.
MXG connection schemes
Scheme 1: Data-logger standard connection scheme (car delivery).
Scheme 2: Data-logger connection scheme with Smarty-cam and expansion module (example).
Through the RaceStudio3 software is possible to activate all the circuits in the world.
It is also possible to create and load a new circuit.
