EVO 8 includes a dedicated Instrument input to directly connect
instruments such as guitars and basses. The Instrument input is sometimes
also known as a DI (Direct Injection) and provides a high input impedance,
which enables you to get the best tone from your instruments.

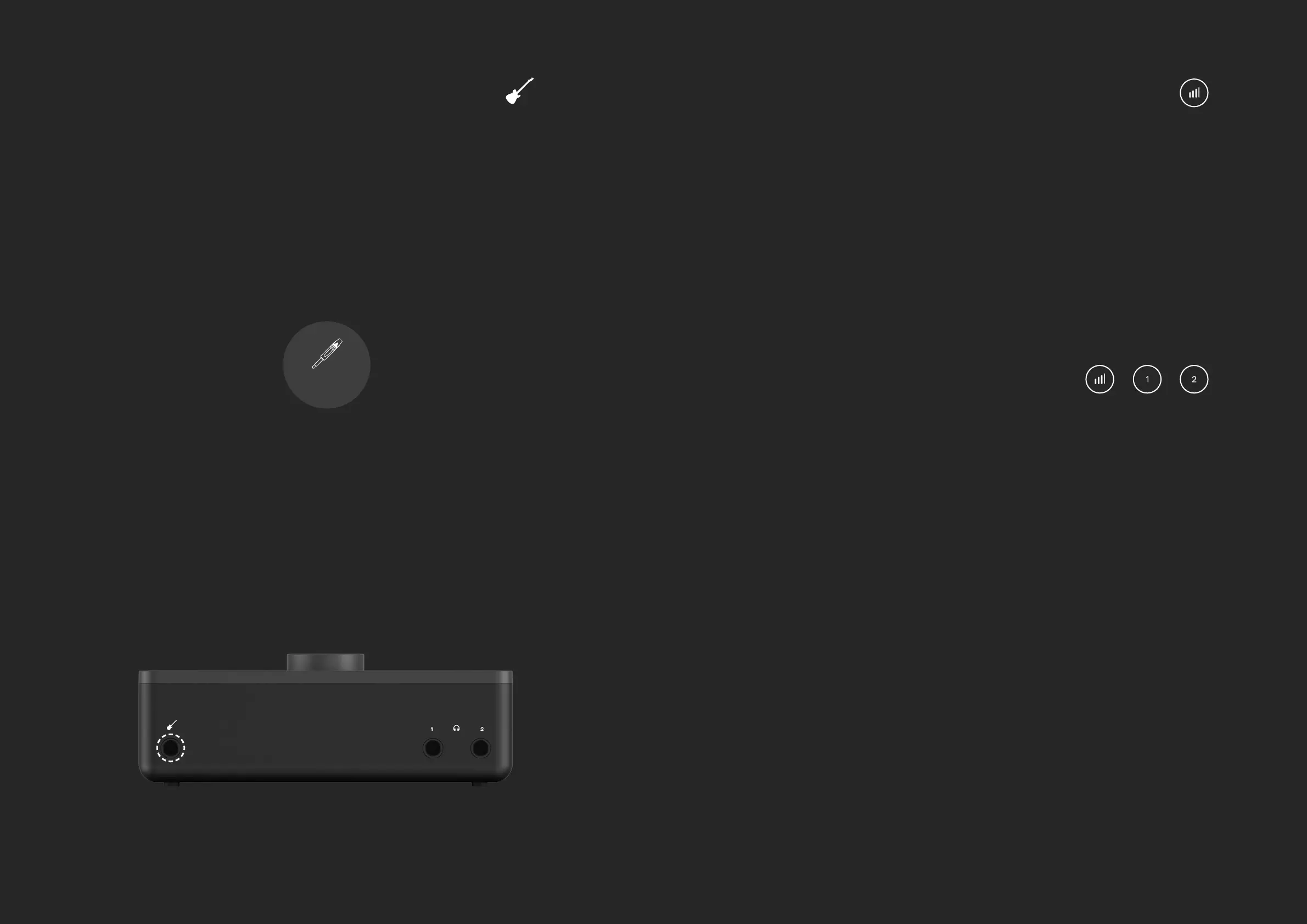

The DI port is found on the front of EVO 8 and accepts an unbalanced TS
jack, just like the ones you’d plug into a guitar amp.
Instrument Input
When a guitar Jack is plugged into the Instrument Input, the signal is sent
to Input Channel 1 and overrides what is currently connected to the Mic/
Line input for Channel 1.
You would then simply set your gain as you would with the Mic/Line
inputs, either using Smartgain or the main knob.
HARDWARE HARDWARE
Instrument
Input
EVO 8 allows you to quickly Mute both the Outputs and the four inputs.
Simply press and hold any of the channel buttons or either of the Output
volume buttons to quickly mute them.
The button will then ash to indicate it is muted. To unmute it, simply press
and hold it again.
This is useful to quickly mute a microphone during a podcast or to mute the
sound to your speakers to quickly take a phone call for example.
EVO 8 provides you with two separate controls for the two sets of outputs.
Pressing the Volume Control 1 button will adjust the volume of the 1+2 speaker
outputs or the rst headphone output and pressing the Volume Control 2 will
allow you to separately adjust the volume for Speaker Outputs 3+4 or the
second headphone output.
To adjust the output volume, simply tap the output you wish to adjust and
turn the control knob. The Meter ring will illuminate to show the current
volume level.
Volume Control
Muting
TS 1/4”
Jack
