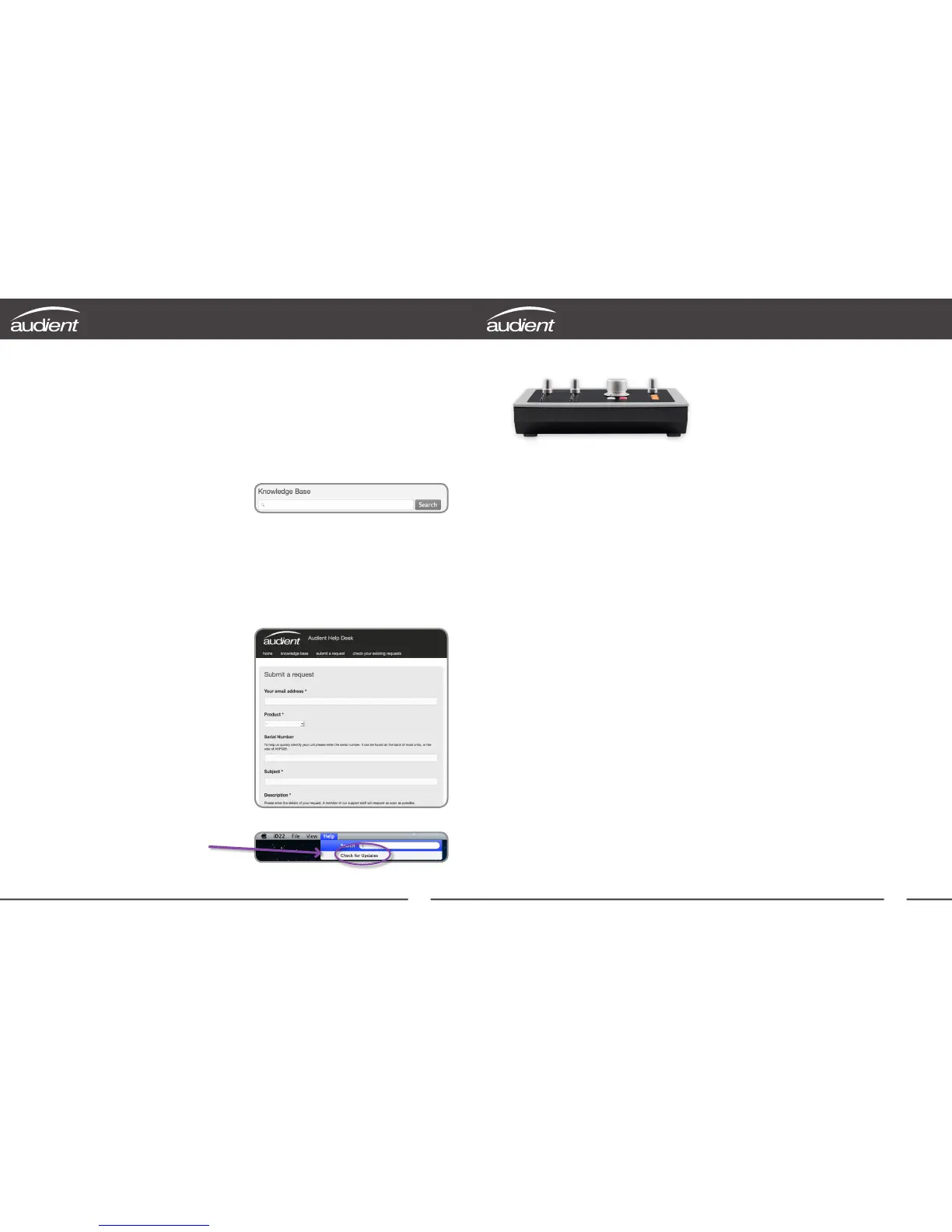

Troubleshooting & FAQ
Troubleshooting
• How do I reset the iD22 mixer
application to it’s default state?
To reset the mixer application, close the
mixer and then navigate to the following
folder and delete the state.xml file (it will
replenish upon a fresh launch and closure
of the application, storing your default
setup):
Macintosh HD > User > Library > Application
Support > Audient > iD22 > state.xml
Do not delete the parent folder as this will
also contain your iD22 mixer presets.
• I’m getting random crashes and bugs,
how do I make sure I have the latest
version of iD firmware/software?
To check for the latest updates to the
iD desktop mixer application please visit:
www.audient.com/iD22 download the
package and install.
To update the iD22 firmware to the
latest version please use the Help
menu in the application bar and select
Check for Updates, refer to page 8 in
this user manual for more information
regarding firmware update.
FAQs
For more information and bug support,
please search our online Knowledge Base
which can be found here:
www.audient.com/support
For technical support please create
a ticket in our online support system,
Zendesk which can also be found in the
support section of our website
(see link above).
Specifications
MICROPHONE PREAMPLIFIERS:
(measured to insert send)
ADC LINE INPUTS (Insert Returns):
(measured at optical output under AES-17)
DAC OUTPUTS (1-4):
(measured from optical input under AES-17)
HEADPHONE OUTPUT (5&6):
(measured from optical input under AES-17)
USB2.0 HIGH SPEED:
DIGITAL i/o:
POWER SUPPLY:
D.I (Channel 2):
(measured to insert send)
INSERT SENDS (Mic Pre Out):
MIC GAIN: -10 to +60 dB (-10dB Pad)
LINE GAIN: -20 to +40 dB (-10dB Pad)
PHANTOM POWER: 48v +/-4v @ 10mA/Channel
MIC EIN: <-125dBu
CMRR: >80dB @ 1kHz
MAXIMUM INPUT LEVEL: +22dBu (+32dBu with Pad)
INPUTIMPEDANCE(Mic): >3kΩBalanced
INPUTIMPEDANCE(Line): >10kΩBalanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 100kHz
CROSSTALK: <-90dBu @ 1kHz & 10kHz
THD+N @ 0dBu (1kHz): 0.0015% (-96dBu)
SNR: 96dB
HPF: -3dB @ 100Hz, 2nd Order
(12dB/Octave)
XLR: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
MAXIMUM INPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
INPUTIMPEDANCE:  >10kΩBalanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to Fs/2
CROSSTALK: -100dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz): <0.002% (-94dB)
THD+N @ -6dBFS (1kHz): <0.0015% (-97dB)
DYNAMIC RANGE: 117dB un-weighted
120dB A-weighted
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
MAXIMUM OUTPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
OUTPUTIMPEDANCE: <100ΩBalanced
FREQUENCY RESPONSE: +/-0.5dB 5Hz to Fs/2
CROSSTALK: -110dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz) : <0.0008% (-101dB)
DYNAMIC RANGE: 110dB un-weighted
114dB A-weighted
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
MAXIMUM OUTPUT LEVEL: +18dBu
DIGITAL REFERENCE LEVEL: 0dBFS = +18dBu
OUTPUTIMPEDANCE: <100ΩBalanced
FREQUENCY RESPONSE: +/-0.5dB 5Hz to Fs/2
CROSSTALK: --110dBu @ 1kHz & 10kHz
THD+N @ -1dBFS (1kHz) : <0.0008% (-101dB)
DYNAMIC RANGE: 110dB un-weighted
114dB A-weighted
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
D.I GAIN: -16 to +54 dB (-10dB Pad)
MAXIMUM INPUT LEVEL: +16dBu (typical), +22dBu
INPUTIMPEDANCE:  1MegΩUnbalanced
FREQUENCY RESPONSE: +/-0.5dB 10Hz to 50kHz
THD+N @ 0dBu (1kHz): <0.03% (-70dBu)
SNR: 93dB
1/4” JACK: TIP (Hot) & SLEEVE (Shield)
MAXIMUM OUTPUT LEVEL: +22dBu
OUTPUTIMPEDANCE: <100ΩBalanced
1/4” JACK: TIP (Hot), RING (Cold) & SLEEVE (Shield)
ADAT 8 CHANNELS 44.1 - 48kHz
ADAT 4 CHANNELS 88.2 - 96kHZ
STEREO S/PDIF 44.1 - 96kHz
No. of INPUT CHANNELS 10
(2 Analogue, 8 Digital)
No. of OUTPUT CHANNELS 14
(6 Analogue, 8 Digital)
12VDC Centre Positive DC Adapter - >1.5Amps
Internally conditioned to provide +48VDC, +/-15VDC &
low voltage rails for digital processing core & converters.
iD22 cannot be bus powered for quality reasons.
