Audio Technica AT-LP120XUSB User Manual

4
1
Dust cover
2
Feet
Adjust the level of the product.
3
Pre-amplifier selector switch
If using an amplifier with a PHONO input jack, set this switch to
the PHONO position. If connecting to the AUX jack of an amplifier,
set this switch to the LINE position.
4
Stereo output terminals
Connect the RCA audio cable. Connect it to either the amplifier's
PHONO input jack or its line input jack. The red terminal is the
right channel and the white terminal is the left channel.
5
Ground (earth) terminal
Connect the amplifier's ground (earth) terminal to this terminal
using the RCA audio cable's ground line.
6
USB output
Use this output to connect your turntable to the USB input of your
computer.
7
Power input jack
Connect the AC adapter.
Part names and functions

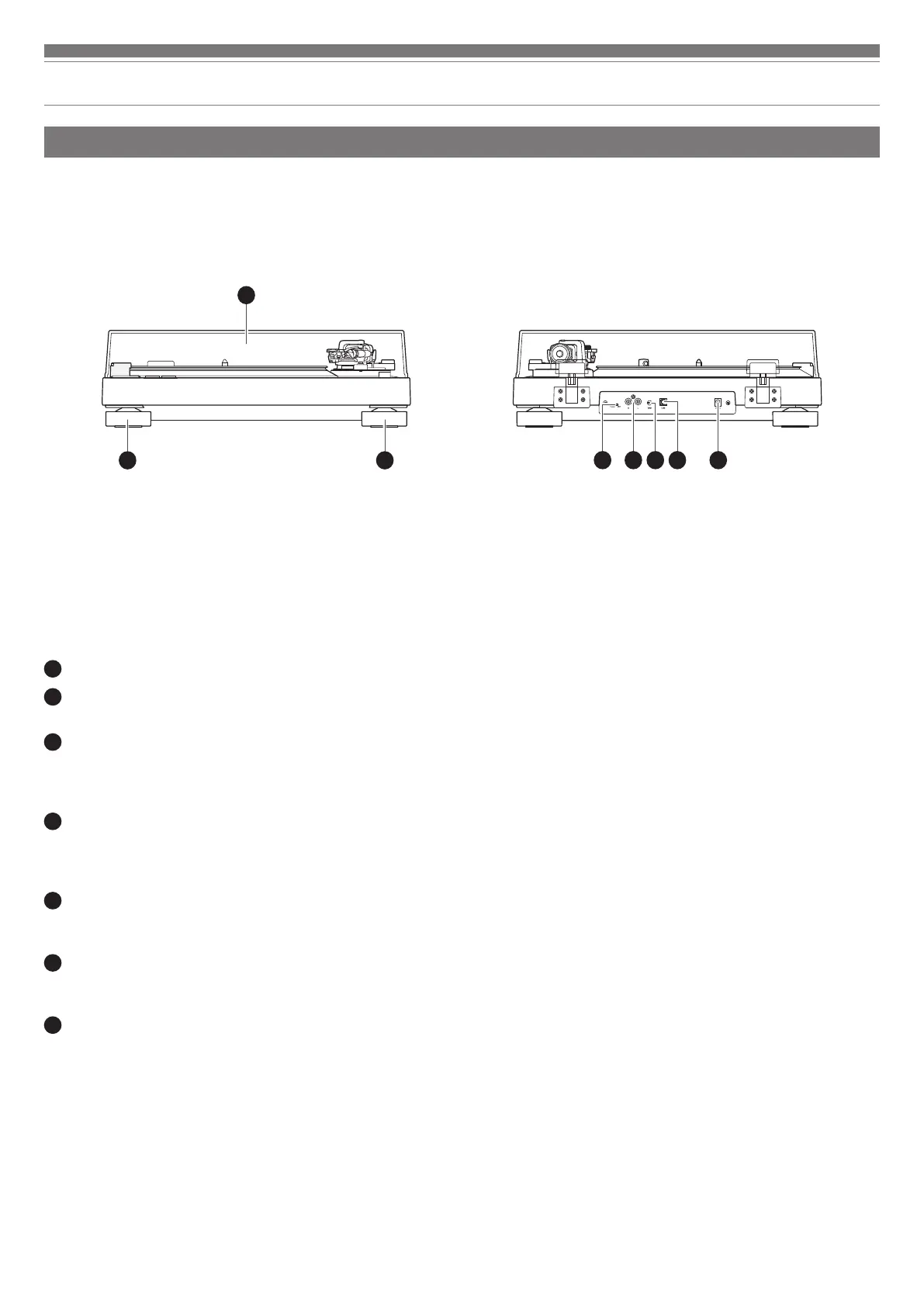

Front and rear view diagram
2
3 4 5 6 7
2
1

Audio Technica AT-LP120XUSB Specifications

General

Type	Belt-drive audio turntable
Operation	Manual
Motor type	DC servo motor
Output level	240 mV
Tone control	Yes
Product color	Silver
Wow & flutter	0.2 %
Nominal speeds	33 1/3, 45, 78 RPM
Volume control	Rotary
Starting torque	1 kg/cm
Platter material	Aluminum
Signal-to-Noise Ratio (SNR)	50 dB
Shape	S-shaped tonearm
USB ports quantity	1
Cables included	RCA, USB
Power supply type	AC
AC adapter frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	3 A
AC adapter output voltage	12 V
Power consumption (typical)	2.75 W

Weight and Dimensions

Depth	352 mm
Width	452 mm
Height	141.6 mm
Weight	8000 g
