5

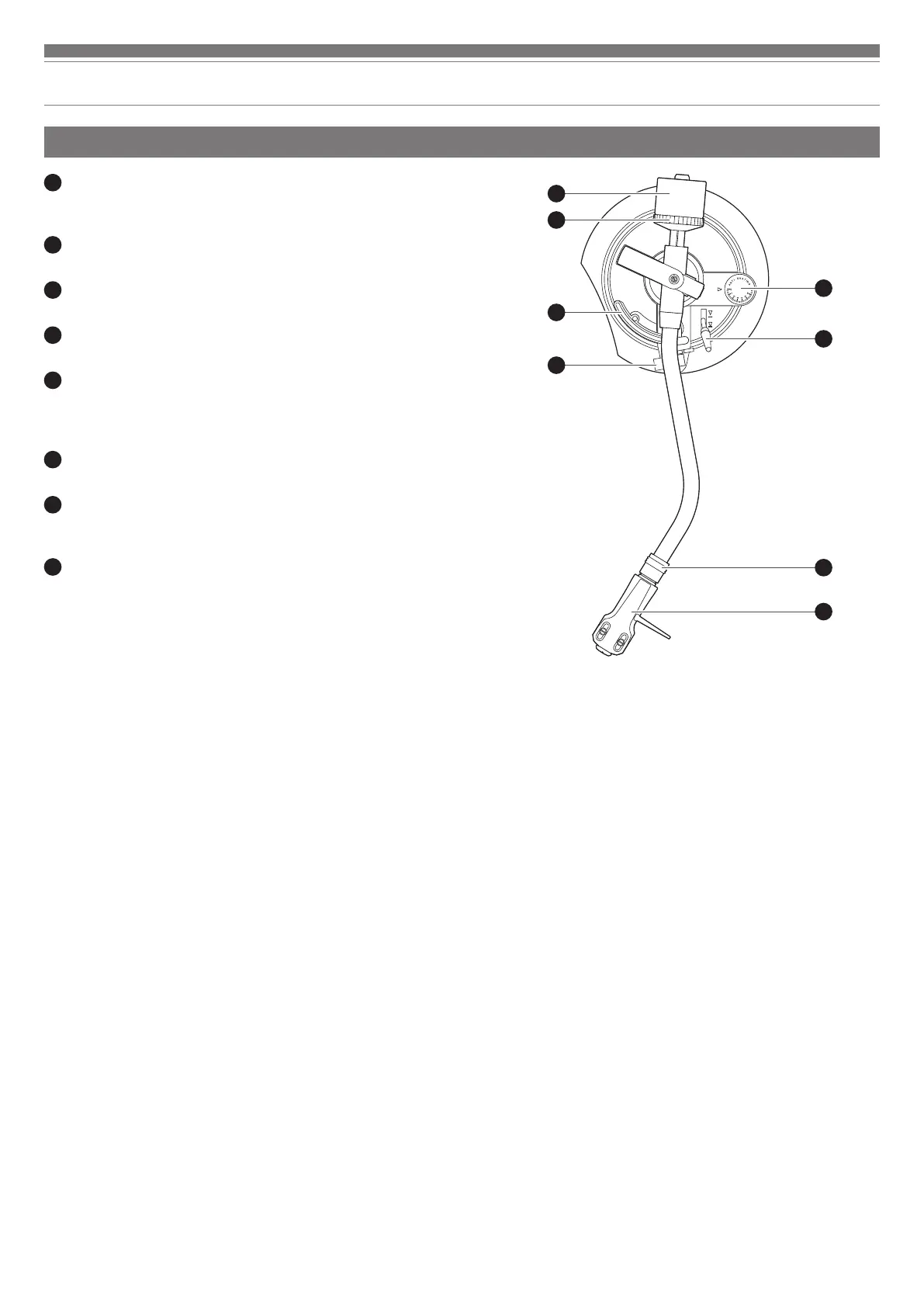

Part names and functions
Tonearm
1
Counterweight
Balances the tonearm and adjusts to provide the proper tracking
force.
2
Tracking force gauge ring
Use to adjust the tracking force.
3
Tonearm lift
Moves the tonearm vertically to and from the face of the record.
4
Tonearm rest with clamp
Use the clamp to secure the tonearm so that it does not move.
5
Anti-skate control dial
While the record is playing, a force acts on the stylus tip to pull it
inward. This force can be counteracted by setting the same values
for anti-skate and the tracking force.
6
Tonearm lift control lever
Operates the tonearm lift.
7
Locking ring
Rotate the ring to the left (counterclockwise) to secure the
headshell. To remove the headshell, rotate the ring to the right.
8
Headshell
The cartridge (AT-VM95E) is attached to the headshell (AT-HS6).
4
5
7
8
6
1
3
2
