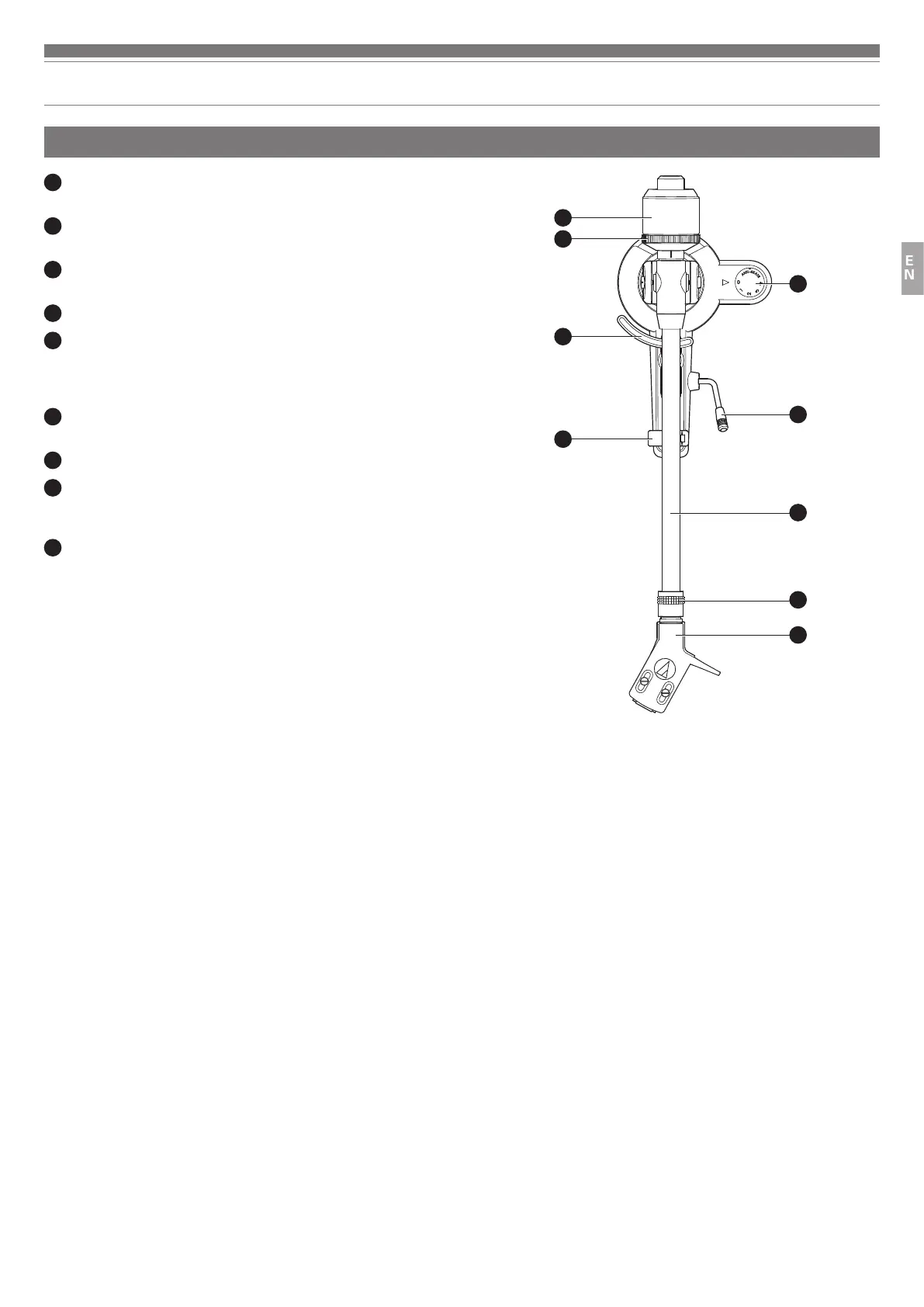

Part names and functions
Tonearm
1
2
3
5
6
8
4
9
7
1
Counterweight
Balances the tonearm and adjusts to provide the proper tracking force.
2
Tracking force gauge ring
Use to adjust the tracking force.
3
Tonearm lift
Moves the tonearm vertically to and from the face of the record.
4
Tonearm rest
5
Anti-skate control dial
While the record is playing, a force acts on the stylus tip to pull it inward.
This force can be counteracted by setting the same values for anti-skate
and the tracking force.
6
Tonearm lift control lever
Operates the tonearm lift.
7
Tonearm
8
Locking ring
Rotate the ring to the left (counterclockwise) to secure the headshell. To
remove the headshell, rotate the ring to the right.
9
Headshell and cartridge
The cartridge (AT91R) is mounted to the headshell (AT-HS3).
