3
Part names and functions

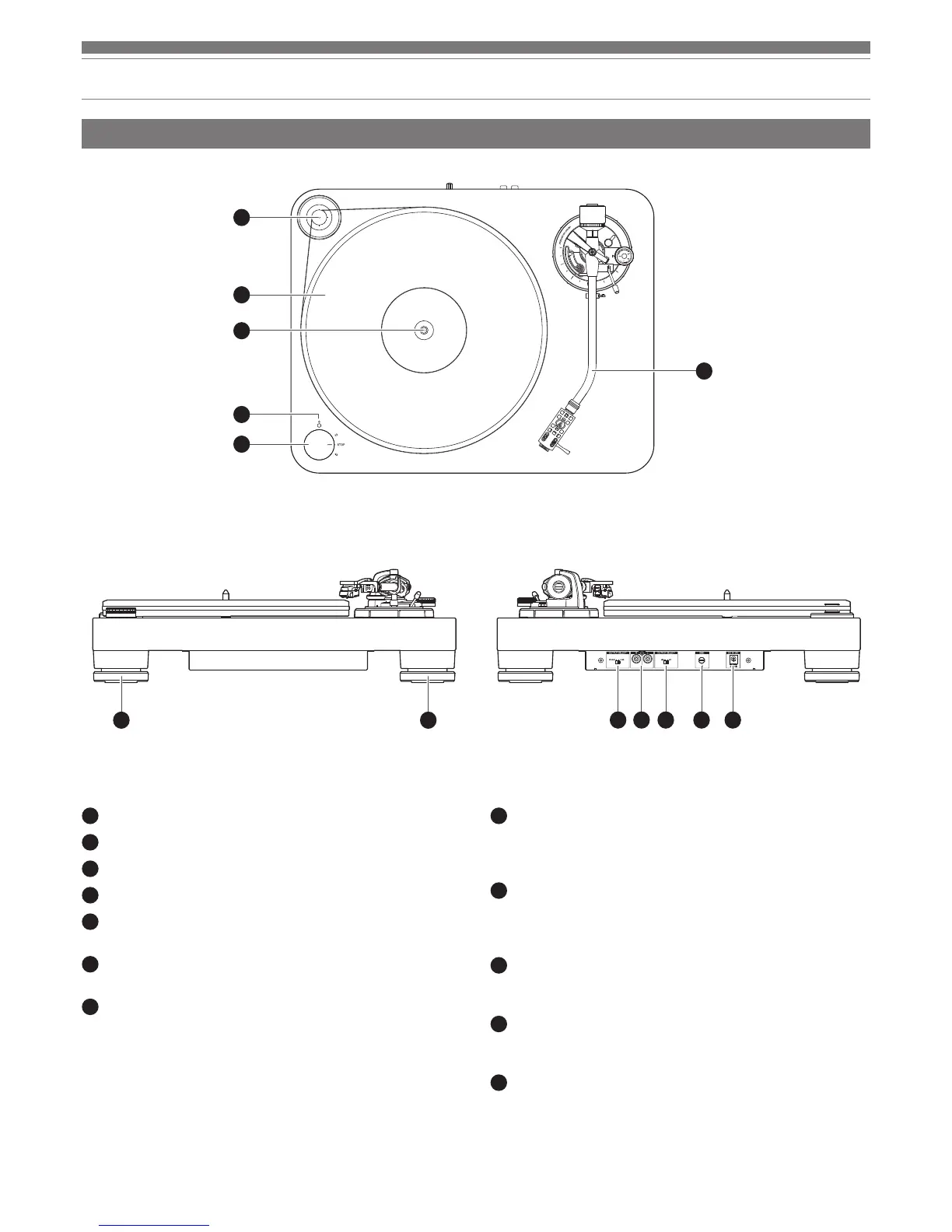

Overall diagram
8
Pre-amplifier selector switch
If connecting to an amplifier's PHONO input jack, set this switch to
the PHONO position. If connecting to the AUX jack of an amplifier,
set this switch to the LINE position.
9
Stereo output terminals
Connect the RCA audio cable. Connect it to either the amplifier's
PHONO input jack or its line input jack. The red terminal is the
right channel and the white terminal is the left channel.
10
MM (VM)/MC cartridge selector switch
If using an MM (VM) cartridge, set this switch to the MM position.
If using an MC cartridge, set this switch to the MC position.
11
Ground (earth) terminal
Connect the amplifier's ground (earth) terminal to this terminal
using the RCA audio cable's ground line.
12
Power input jack
Connect the AC adapter.
1
Motor pulley
2
Platter
3
Spindle
4
Power indicator
5
Control knob
Use to start and stop, as well as select the platter's speed.
6
Tonearm
For details, refer to “Tonearm” on p. 4.
7
Feet
Adjust the level of the product.
7 7
6
1
2
3
4
5
8 9 10 11 12
