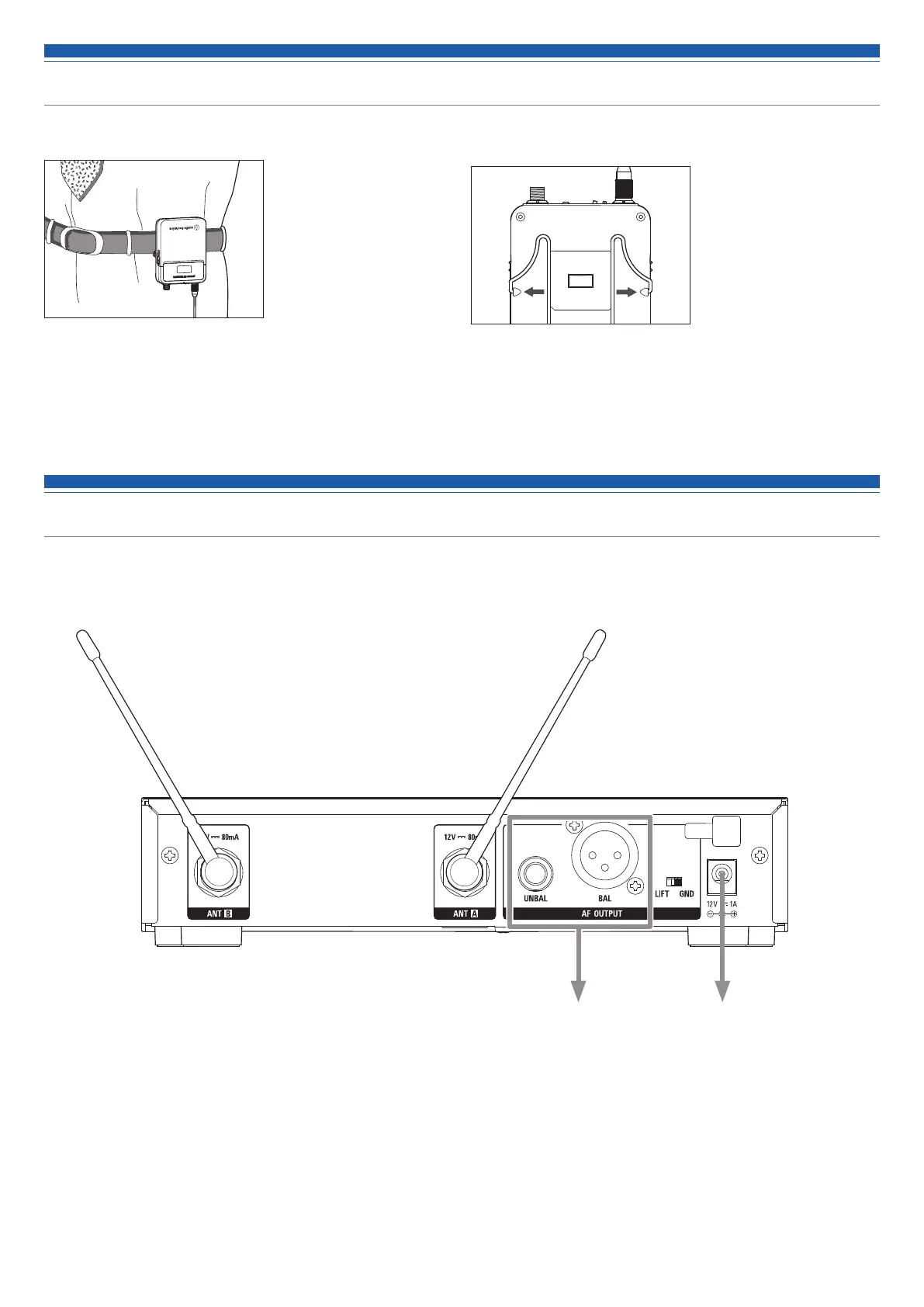

How to attach the transmitter (ATW-T3201)
The ATW-T3201 transmitter is equipped with a clip that can be used to attach the transmitter to a belt, etc.
You can reverse the direction of the input connector by
attaching the clip in the opposite direction.
Pull both sides of the clip firmly to the outside to remove
the clip from the product.
Making connections (basic connections)
This is an example of connections made when using one receiver.
When connecting more than one receiver via a distributor (sold separately), refer to the distributor's user manual.
Whip antenna Whip antenna
AC adapterMixer input

Audio Technica ATW-T3201 Specifications

General

Quantity	1
Form factor	Bodypack transmitter
Antenna type	Built-in
Display type	OLED
Product color	Black
Built-in display	Yes
Housing material	Metal
Operating frequency	60 MHz
Operating frequency type	Ultra High Frequency (UHF)
Battery type	AA
Battery voltage	1.5 V
Battery life (max)	9.5 h
Number of batteries supported	2

Weight and Dimensions

Depth	82 mm
Width	64 mm
Height	23 mm
Weight	102 g
