Part names and functions
ATW-R3210

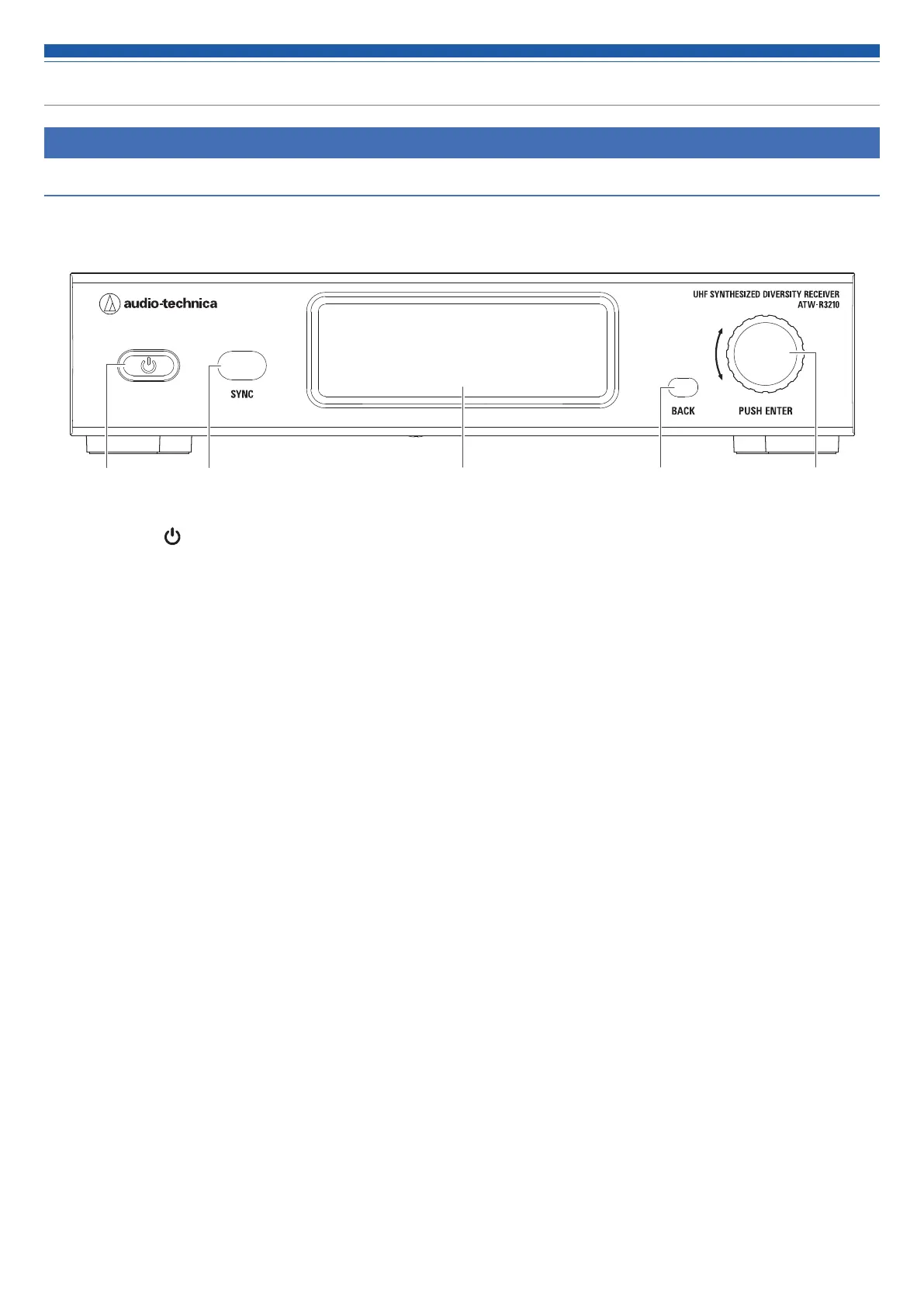

Front panel
❶ Power button ( )
Use to turn the receiver on or off.
❷ IR sync window
Use to IR SYNC with the transmitter (ATW-T3201, ATW-T3202).
❸ Display
Displays the receiver state and setting menus.
❹ BACK button
Press to take the display back one screen.
Returns to the Main screen when pressed and held.
❺ Control dial
Switches the screen when you turn the dial.
Displays the setting menu when you press the dial. Turn the dial to select a setting and press to confirm.
When you press and hold the dial, QUICK SYNC is started.
❷❶ ❹ ❺❸

Audio Technica ATW-T3201 Specifications

General

Quantity	1
Form factor	Bodypack transmitter
Antenna type	Built-in
Display type	OLED
Product color	Black
Built-in display	Yes
Housing material	Metal
Operating frequency	60 MHz
Operating frequency type	Ultra High Frequency (UHF)
Battery type	AA
Battery voltage	1.5 V
Battery life (max)	9.5 h
Number of batteries supported	2

Weight and Dimensions

Depth	82 mm
Width	64 mm
Height	23 mm
Weight	102 g
