AudioBahn A4002J - Wiring Diagram; A2002 J; A4002 J; A8002 J

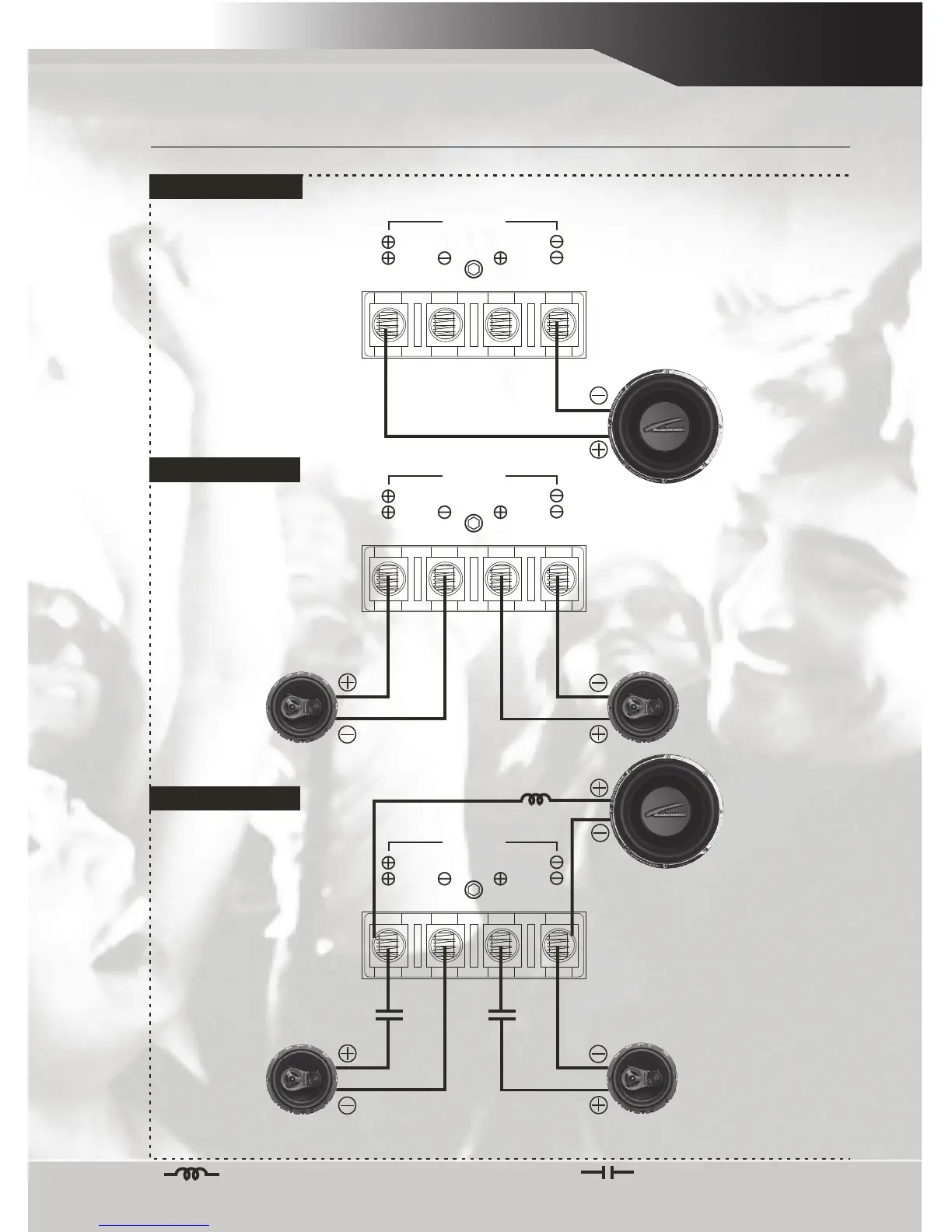

A2002J / A4002J / A8002J
STEREO MODE
TRI MODE
L
R
B R I D G E D
LEFT SPEAKER
2~8 OHM
RIGHT SPEAKER
2~8 OHM
L
R
B R I D G E D
SUBWOOFER
4~8 OHM
L
R
B R I D G E D
LEFT SPEAKER
4~8 OHM
RIGHT SPEAKER
4~8 OHM
BRIDGED
4~8 OHM
MONO MODE
: I N D U C T O R L O W P A S S F I L T E R
: C A P A C I T O R H I G H P A S S F I L T E R
WIRING DIAGRAM
20
