- 5 -

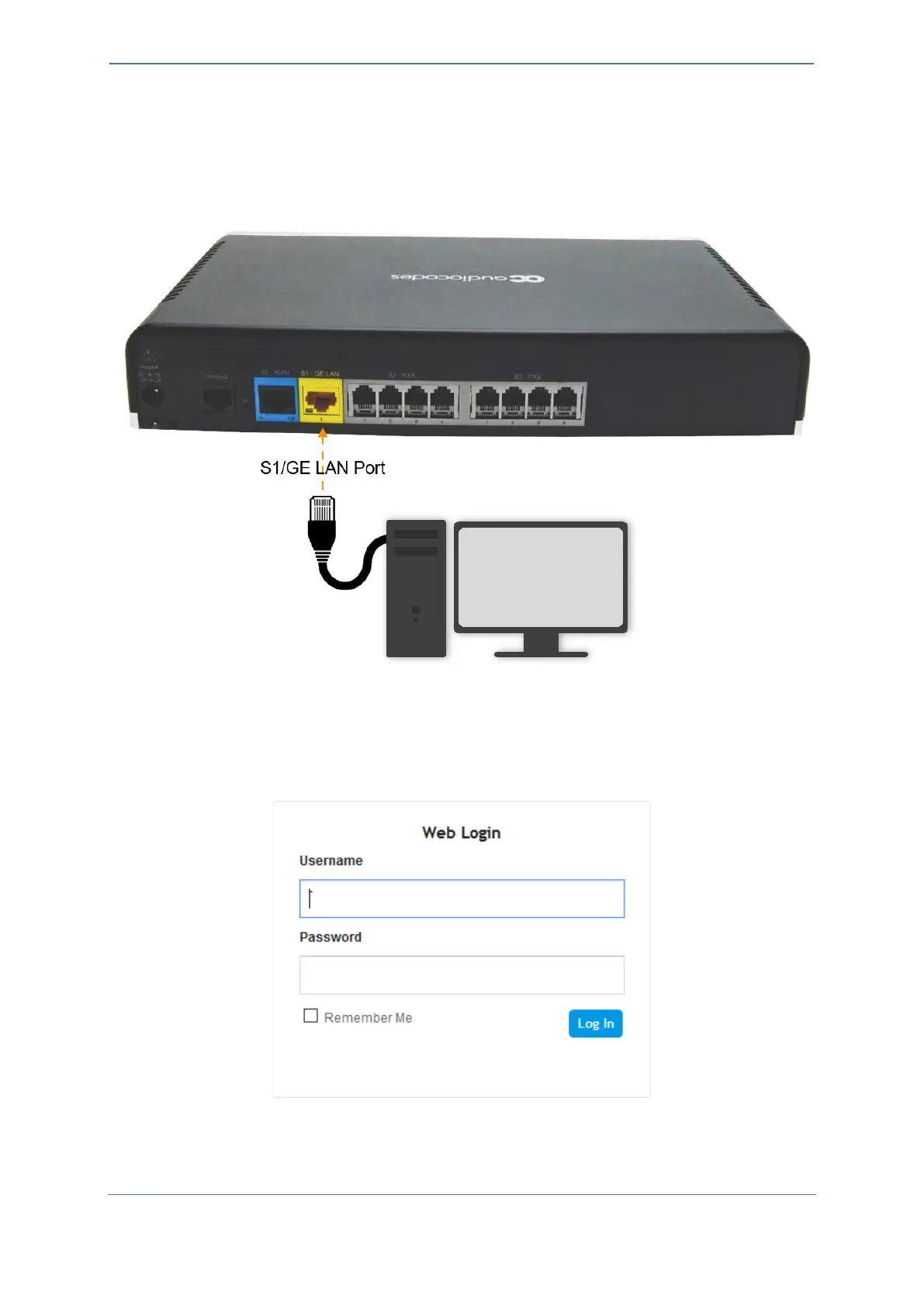

1.2.2 Accessing the Device Using the Default LAN IP Address
To access the device using the default LAN IP address:
1.
Connect the LAN Port directly to your computer's network interface using a straight-
through Ethernet cable:
Make sure that your computer is configured to automatically obtain an IP address. The device
has an embedded DHCP server, which by default, allocates IP addresses to connected
computers.
2.
On your computer, start a Web browser and in the URL address field, enter the device's
default IP address (see table above); the Web interface's Web Login screen appears:
3.
In the 'Username' and 'Password' fields, enter the case-sensitive, default login username
(
Admin
) and password (
Admin
).
4.
Click
Log In
.
