AudioCodes Mediant 800 Quick Setup Guide

2 | Page

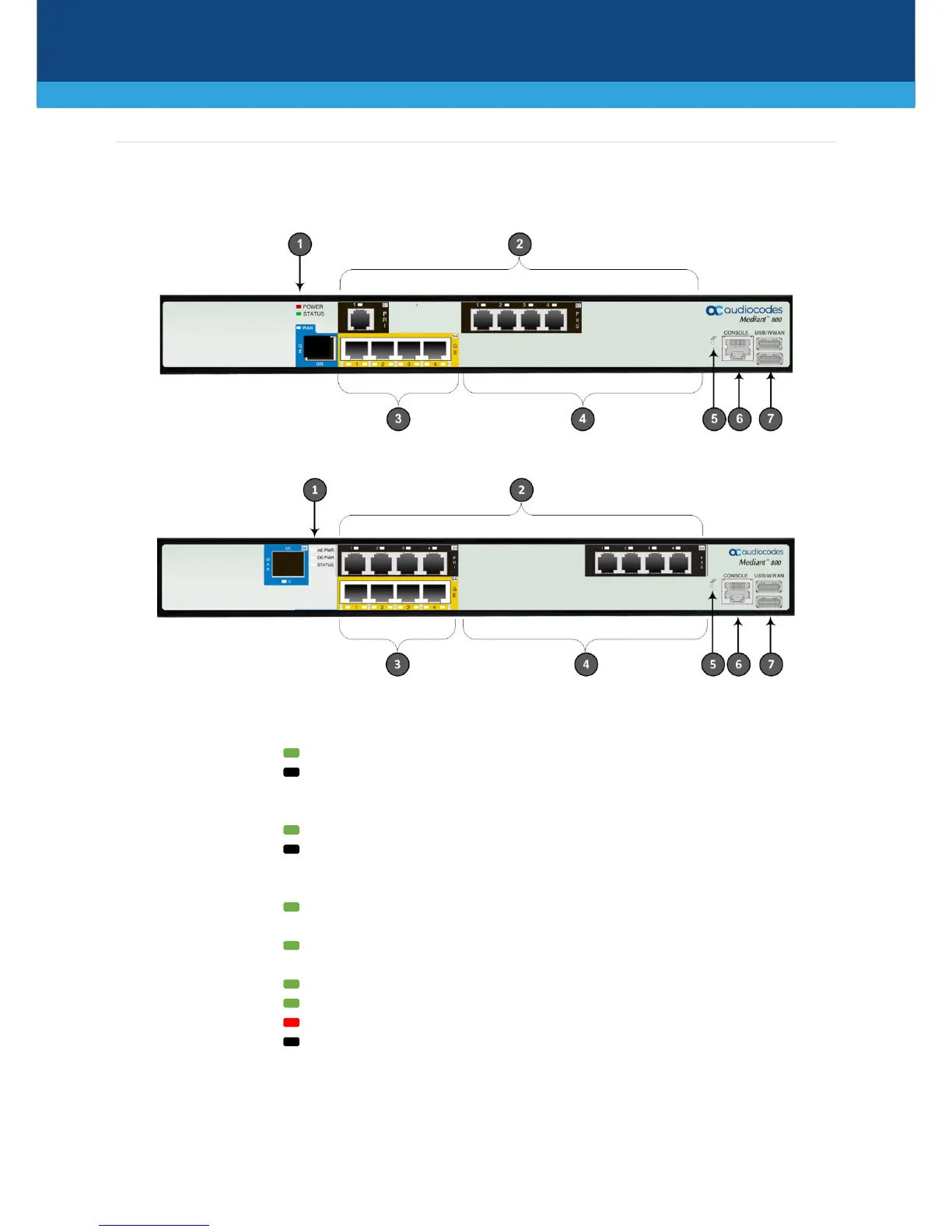

Physical Description of Front Panel
Mediant 800 Rev. B
Mediant 800 Rev. C
[The number and type of port interfaces depend on your ordered hardware configuration.]
1
POWER (Rev. B)
AC PWR (Rev. C)
LED indicating AC power status:
Green On
AC power is received by device.
Off
No power.
DC PWR (Rev. C)
LED indicating DC power status:
Green On
DC power is received by device.
Off
No power.
STATUS
LED indicating operating status:
Green On
Device is operational (and in Standalone mode for High-
Availability / HA systems).
Green Fast-Flashing
Initial rebooting stage or software upgrade (.cmp file) in
process (supported only from Version 7.2).
Green Slow-Flash
Device is in HA mode (active device).
Green Slow-Fast Flash
Device is in HA mode (redundant device).
Red On
Boot failure.
Off
Advanced rebooting stage.
2
FXS, FXO, BRI &
PRI
Telephony port interfaces, which can include any one or a combination of FXS (RJ-
11), FXO (RJ-11), ISDN BRI (RJ-45), and ISDN PRI (RJ-48) interfaces.

AudioCodes Mediant 800 Specifications

General

Protocols	SIP, H.323
Digital Interfaces	1/2 E1/T1 PRI
Management	Web, CLI, SNMP
Mounting	19-inch rack
Codecs	G.711, G.729, G.722, G.723.1
Power Supply	100-240V AC
Operating Temperature	0 to 40°C
Storage Temperature	-25 to 70°C
Humidity	10% to 90% non-condensing
