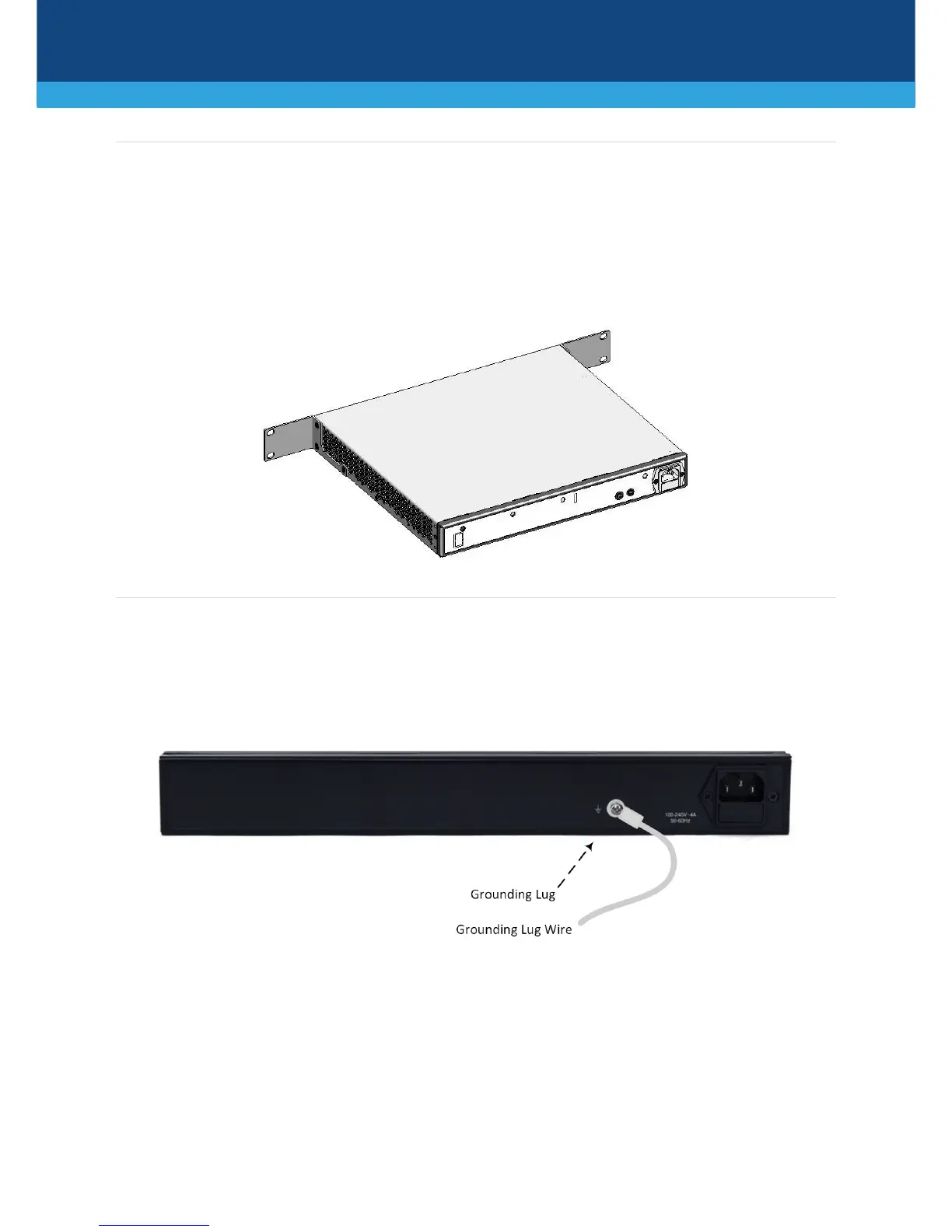

Mounting the Device
You can mount the device on a desktop using the four anti-slide bumpers (supplied), which you need to stick on
the grooves located on the underside of the device.
Alternatively, you can mount the device in a standard 19-inch rack. Rack mounting involves placing the device
on a pre-installed rack shelf (separate orderable item), and then securing the device to the rack frame using the
mounting brackets (supplied), shown attached in the figure below.
Cabling the Device to Power
1. GROUNDING: Ground (earth) the device by connecting an electrically earthed strap of 16-AWG
(minimum) wire to the device's grounding screw located on the rear panel, using the supplied washer.
Fasten the wire securely using a 6-32 UNC screw. Connect the other end of the strap to protective
earthing. This should be in accordance with regulations enforced in the country of installation.
2. Connect the device to the power source:
AC POWER: Connect the line socket of the AC power cord (supplied) to the device's AC power inlet
located on the rear panel. Connect the plug at the other end of the AC power cord to a standard
electrical outlet.
