AudioCodes Mediant 800 Quick Setup Guide

6 | Page

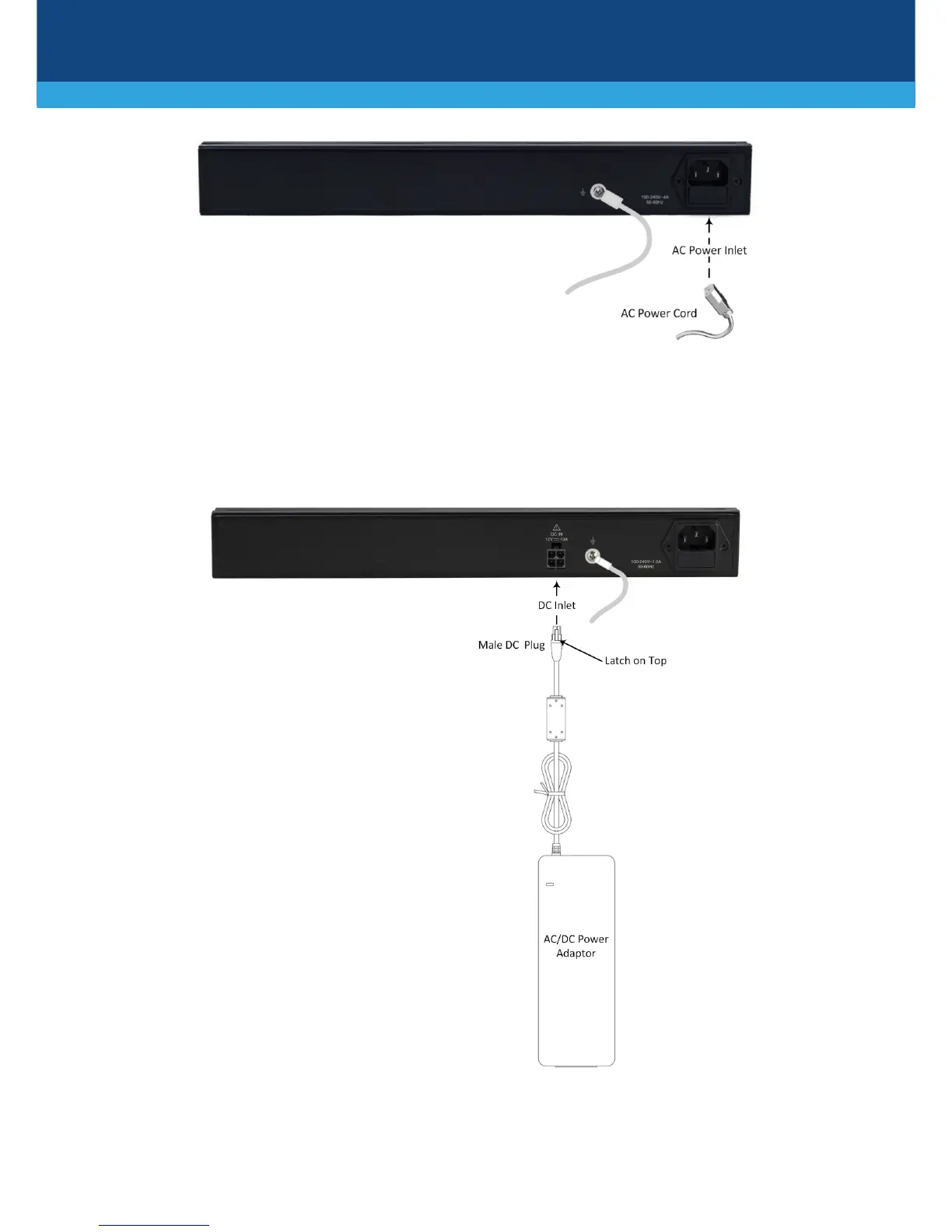

 DC Power: Insert the male DC plug into the DC inlet (DC 12V) connector located on the device's
rear panel. Make sure that the latch faces up (see figure below) and that it snaps into the inlet.
Plug the female connector located on one end of the AC power cord (supplied) into the AC/DC
power adaptor. Connect the plug at other end of the AC power cord to a standard electrical wall
outlet.
Note: DC power is a separate orderable item and applicable only to Rev. C.

AudioCodes Mediant 800 Specifications

General

Protocols	SIP, H.323
Digital Interfaces	1/2 E1/T1 PRI
Management	Web, CLI, SNMP
Mounting	19-inch rack
Codecs	G.711, G.729, G.722, G.723.1
Power Supply	100-240V AC
Operating Temperature	0 to 40°C
Storage Temperature	-25 to 70°C
Humidity	10% to 90% non-condensing
