AudioCodes Mediant 800 Quick Setup Guide

8 | Page

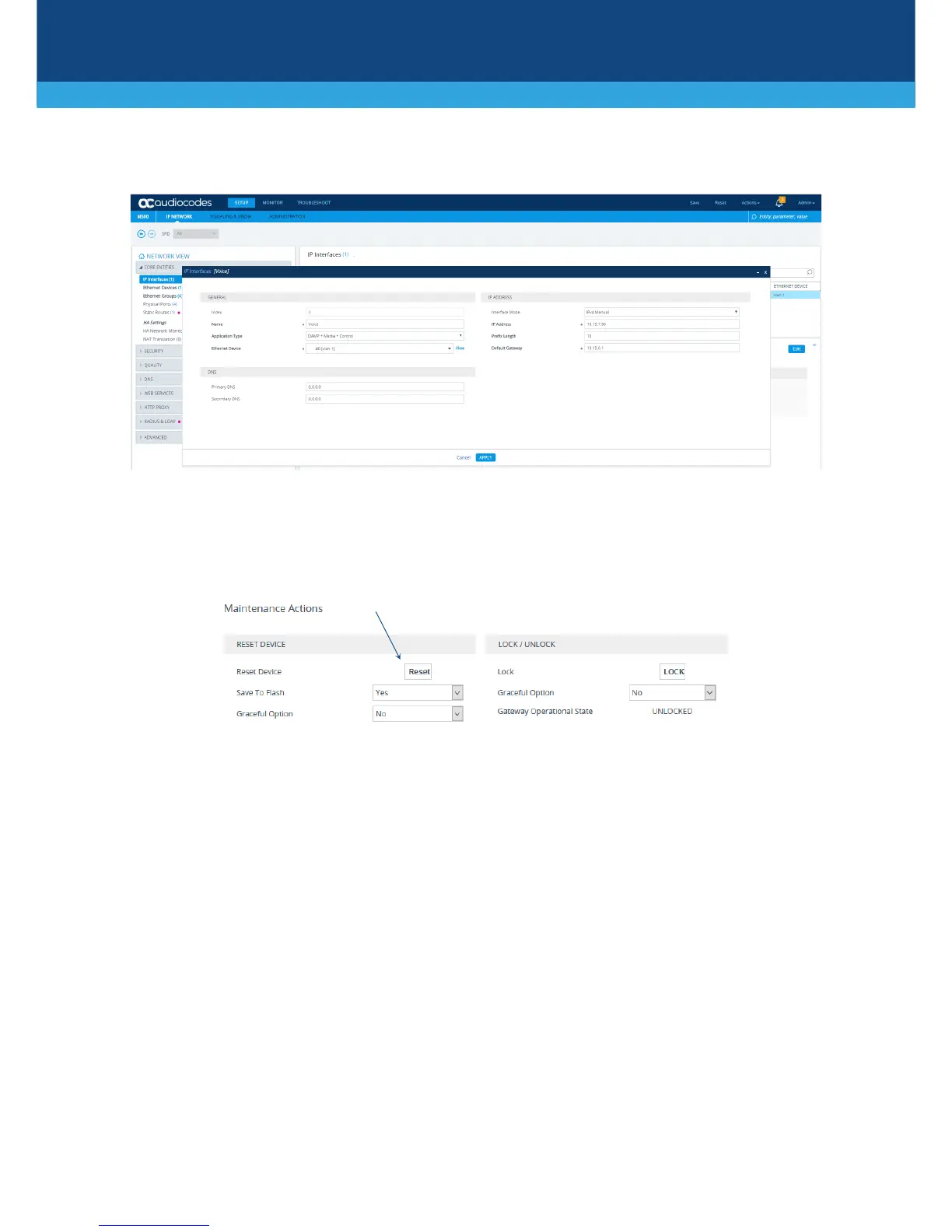

6. Select the OAMP interface ('Application Type' with OAMP + Media + Control), click Edit, and then in
the dialog box, modify the device's OAMP interface.
7. Click Apply to submit your changes.
8. On the toolbar, click Reset to access the Maintenance Actions page.
9. On the Maintenance Actions page, click Reset to save your new settings to flash memory with a device
reset.
10. Disconnect the device's Ethernet cable from the computer and connect it to your network.
11. Access the device's management interface using the newly assigned IP address.

AudioCodes Mediant 800 Specifications

General

Protocols	SIP, H.323
Digital Interfaces	1/2 E1/T1 PRI
Management	Web, CLI, SNMP
Mounting	19-inch rack
Codecs	G.711, G.729, G.722, G.723.1
Power Supply	100-240V AC
Operating Temperature	0 to 40°C
Storage Temperature	-25 to 70°C
Humidity	10% to 90% non-condensing
