Hardware Installation Manual 3. Physical Description
3.3 Rear Panel and Port Description
The device's rear panel provides the ports for cabling the device to the various interfaces.
The figure below displays the rear panel of the MP-118 device (as an example).

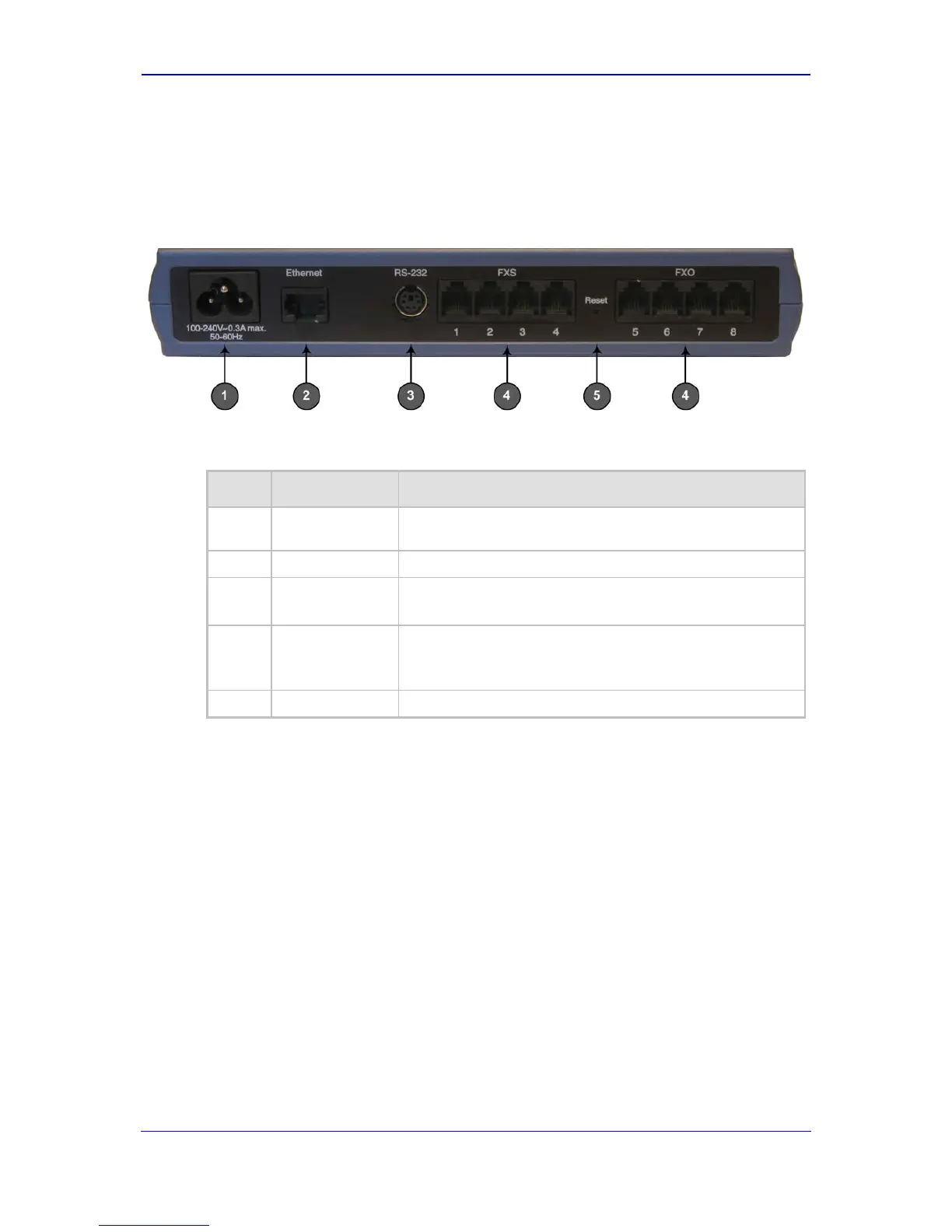

Figure 3-2: MP-11x Rear Panel (e.g., MP-118)
The table below describes the ports on the MP-11x rear panel:
Table 3-3: MP-11x Rear Panel Component Descriptions
Item # Label Component Description
1
100-240~0.3A
max. 50-60Hz
AC power supply socket.
2
Ethernet
10/100Base-TX Uplink port.
3
RS-232
RS-232 status port (requires a DB-9 to PS/2 adaptor).
Note: MP-112 does not provide a serial port.
4 FXS and/or FXO Provides two, four, or eight FXS/FXO ports (depending on
MediaPack model).
Note: MP-112 does not support FXO interfaces.
5
Reset
Reset button for resetting the device.
