5.2 Connecting MP-11x to the Ethernet Network
The procedure below describes how to connect MP-11x directly to the Ethernet network.
Cable specifications:

Cable: Crossover Ethernet cable

Connector: RJ-45

Connector Pinouts:

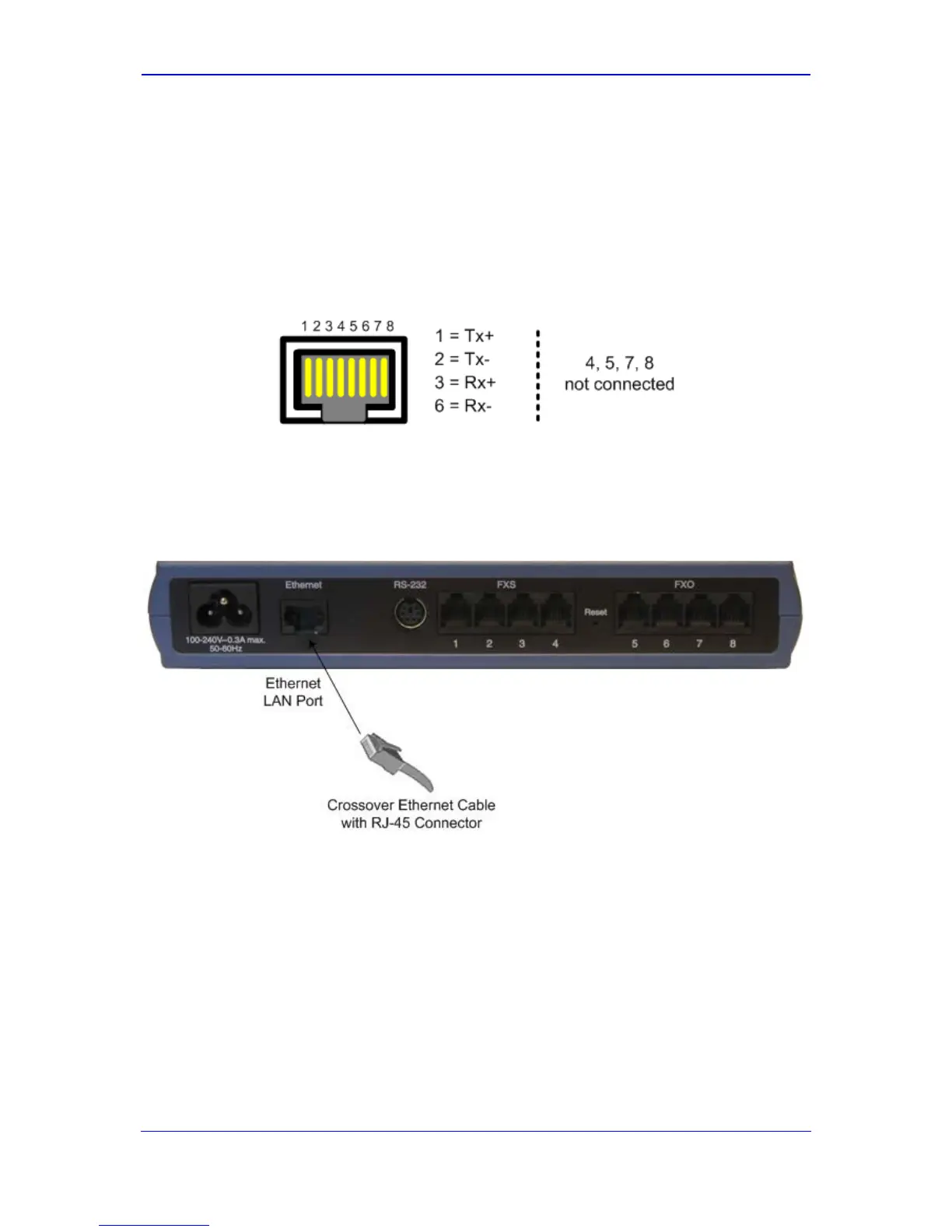

Figure 5-2: RJ-45 Connector Pinouts for Ethernet Connection
 To connect MP-11x directly to the Ethernet network:
1. Connect one end of a crossover RJ-45 Ethernet cable to the Ethernet port (labeled
Ethernet).
Figure 5-3: Connecting to the Ethernet
2. Connect the other end of the cable to the network.
