MP-1xx SIP User’s Manual 5. Configuring the MP-1xx
Version 4.4 63 March 2005
5.8.2.2 Supplementary Services
Use this screen to configure parameters that are associated with supplementary services. For
detailed information on the supplementary services, refer to Section
8.4 on page 153.
To configure the supplementary services’ parameters, take these 4
steps:
1. Open the ‘Supplementary Services’ screen (Protocol Management menu > Advanced
Parameters submenu > Supplementary Services option); the ‘Supplementary Services’
screen is displayed.

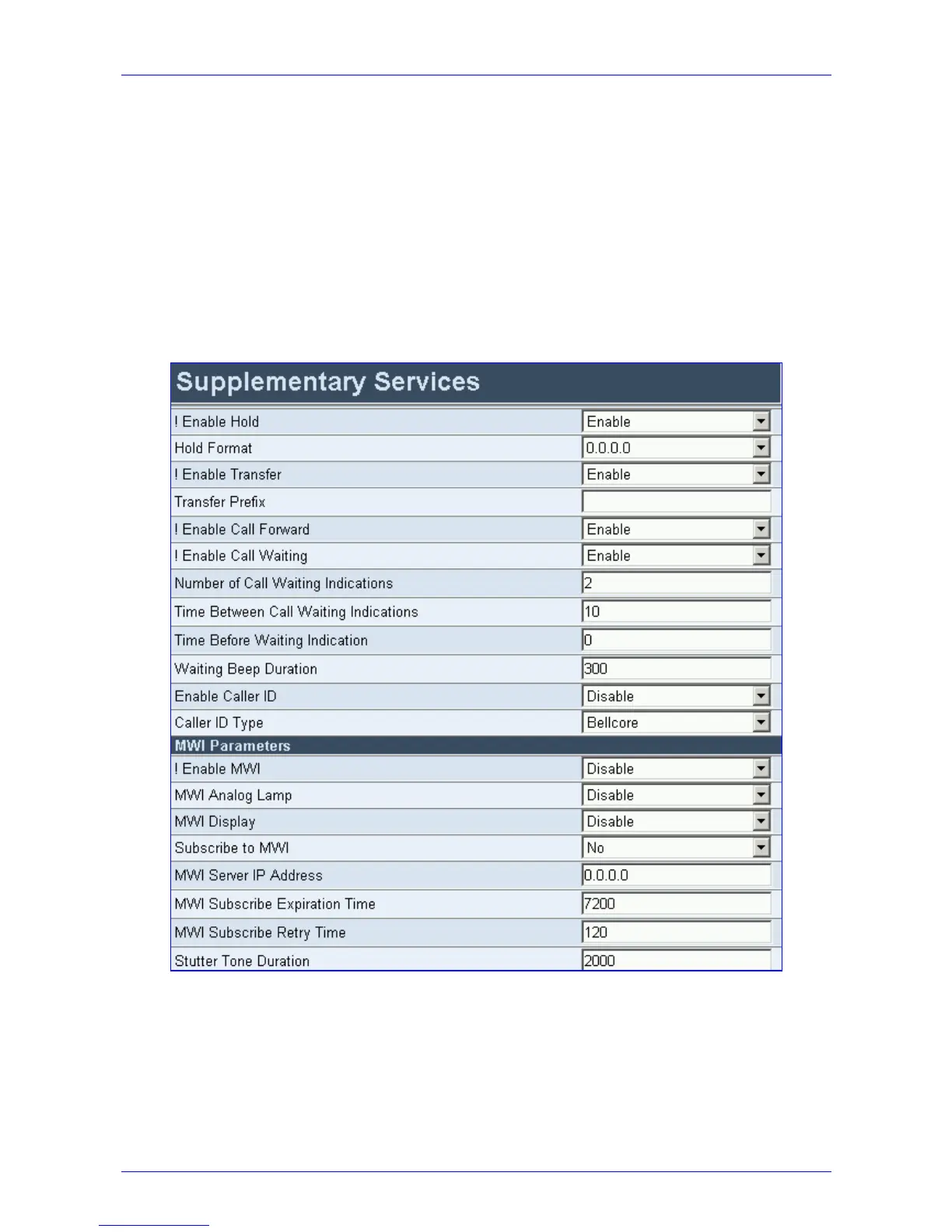

Figure
5-8: Supplementary Services Parameters Screen
2. Configure the supplementary services parameters according to Table
5-6.
3. Click the Submit button to save your changes, or click the Subscribe for MWI or Un-
Subscribe for MWI buttons to save your changes and to subscribe / unsubscribe to the MWI
server.
4. To save the changes so they are available after a power fail refer to Section
5.12 on page
139.
