4.1 Desktop Mounting
Attach the four (supplied) anti-slide bumpers to the base of MP-11x and place it on a
desktop in the desired position.
Desktop Mount Safety Instructions
When mounting the chassis on a desktop, adhere to the following safety
instructions:
• Elevated Operating Ambient - consideration should be given to installing the
equipment in an environment compatible with the maximum ambient temperature
(Tma) of 40°C (104°F).
• Reduced Air Flow - Installation of the equipment should be such that the amount
of air flow required for safe operation on the equipment is not compromised. Avoid
stacking equipment one on top of the other and ensure to keep the ventilation
openings free from cables or any objects to allow free air circulation.
• Connecting to AC Mains power - Consideration should be given to the connection
of the equipment to the supply circuit and the effect that overloading of the circuits
may have on overcurrent protection and supply wiring. Appropriate consideration
of equipment nameplate ratings should be used when addressing this concern.
• Connection to Protective Earth – To avoid injury, electrical shock and damage to
the device, connect the device to an electrical socket with protective earth.
4.2 Wall Mounting
Follow the procedure below for mounting MP-11x on a wall.
To mount MP-11x on a wall:
1. Drill four holes in the wall where you want to mount the device, using the following
dimensions:
• Horizontal distance between keyholes: 140 mm (5.51 inches)
• Vertical distance between keyholes: 101.4 mm (4 inches)

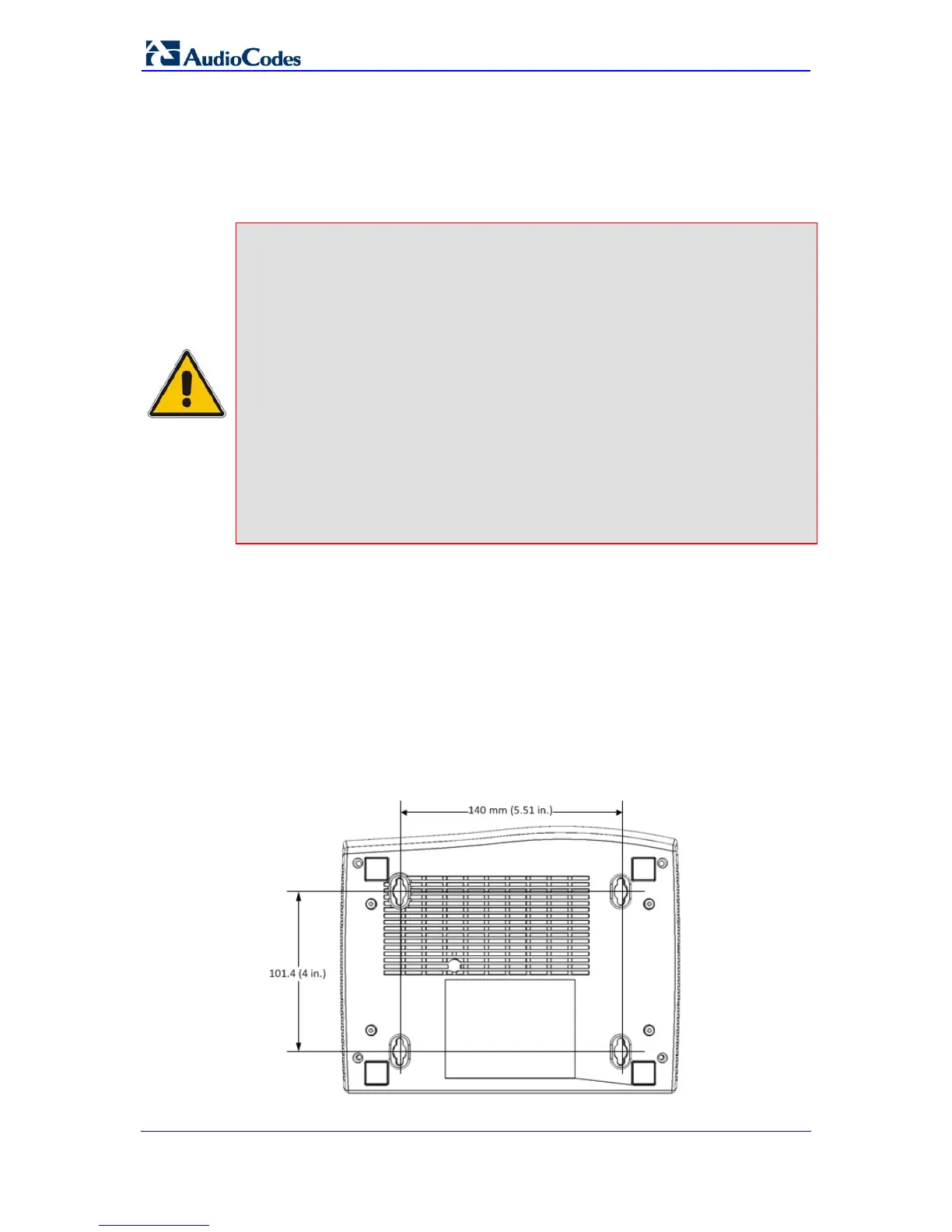

Figure 4-2: Distance between Keyholes for Wall Mounting
To Next Page
