Hardware Installation Manual 4. Mounting MP-11x

 To install MP-11x in a 19-inch rack:

1. Attach one or two MP-11x devices to the shelf using the shelf-to-device screws

(supplied).

2. Position the shelf in the rack and align its side holes with the rack frame holes.

3. Attach the shelf to the rack using four standard rack screws (not supplied).

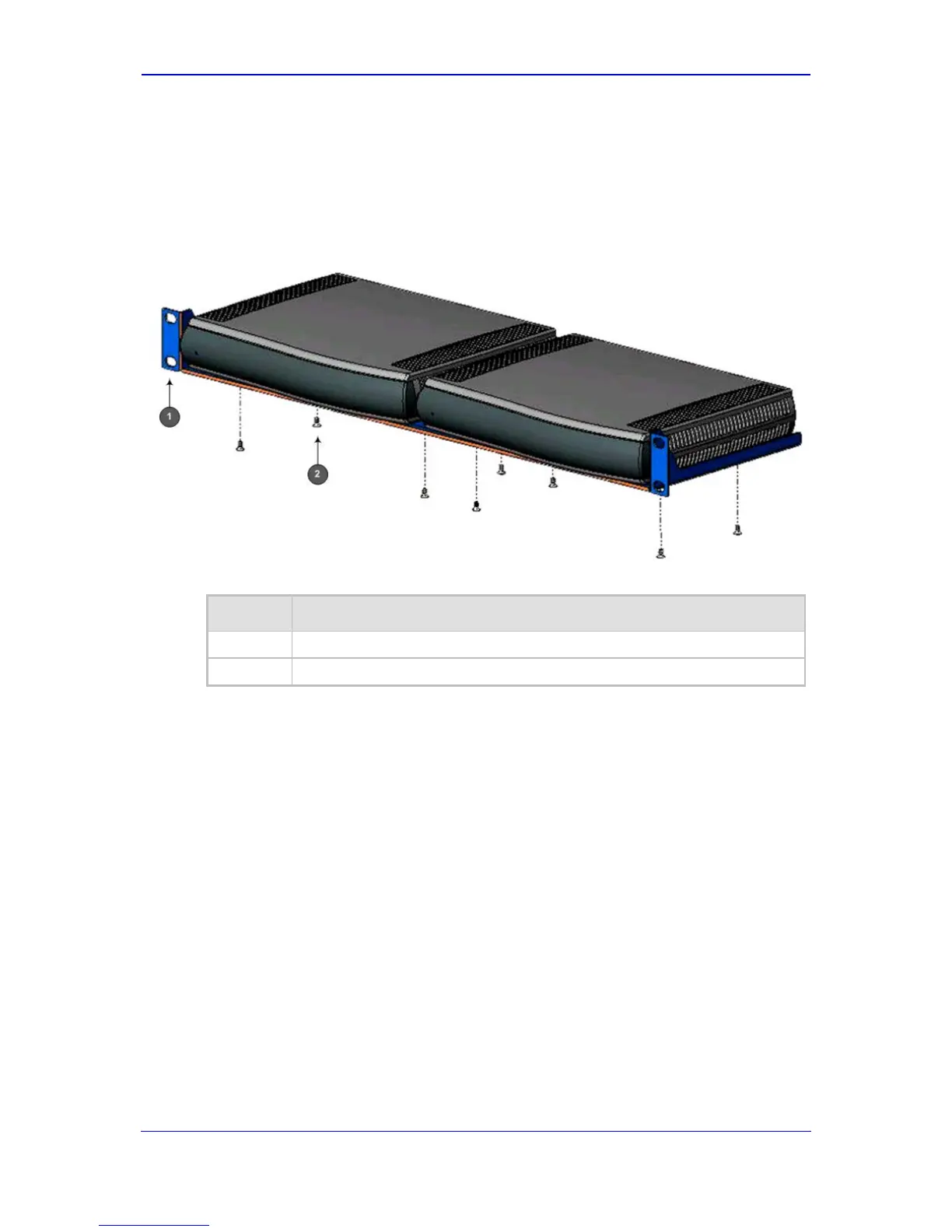

Figure 4-5: MP-11x Rack Mount Installation

Table 4-2: MP-11x Rack Mount

Item # Functionality

Standard rack holes used to attach the shelf to the rack.

Eight shelf-to-device screws.
