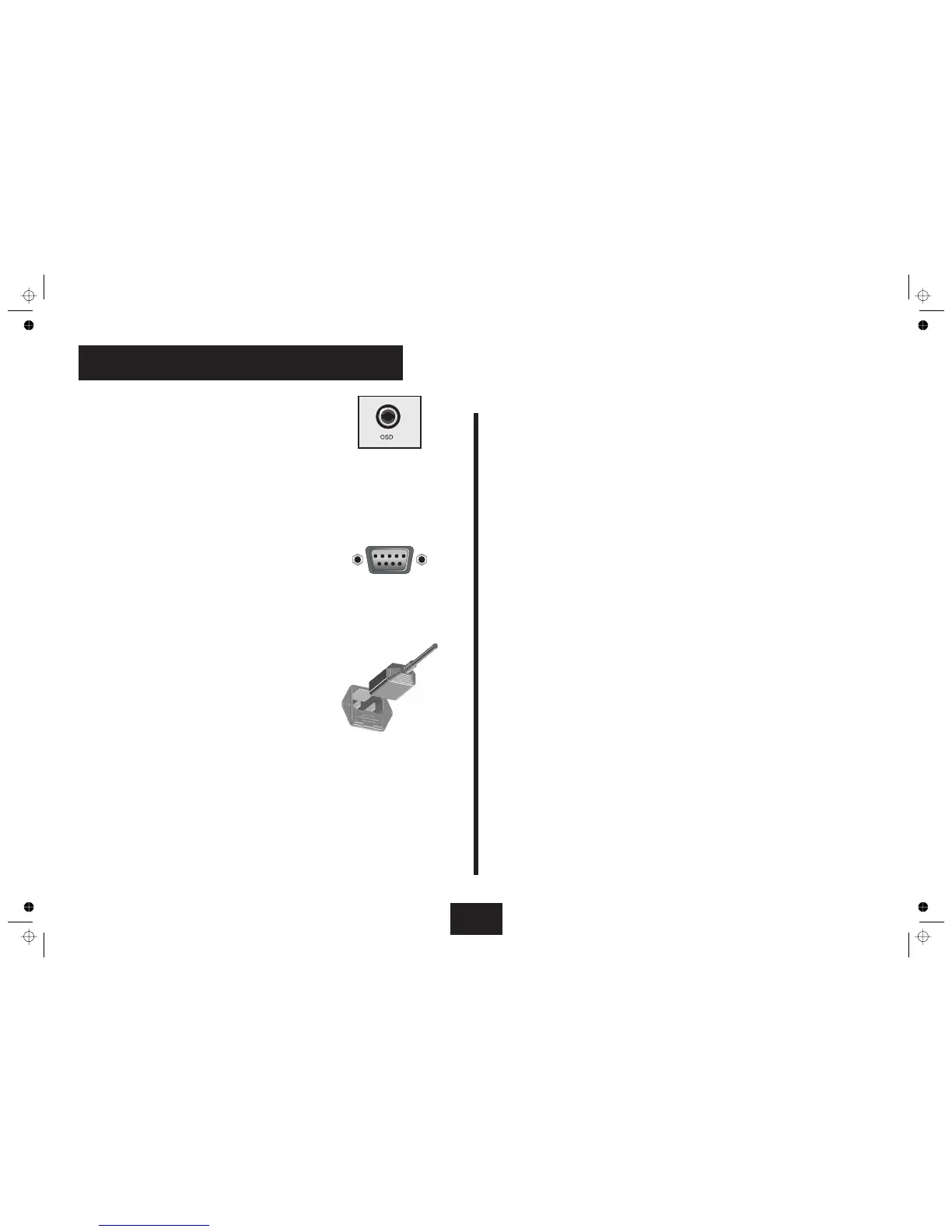

4: Other Connections
On Screen Display Connections
RS232
Mains Input
There is a composite video output labelled
Connect a single RCA video interconnect from the OSD
socket of the 8000AP to the Composite Video (CVBS) input
on your TV screen. Once you have set up your 8000AP you
may disconnect this cable as basic system parameters can be
set up from the front panel of the 8000AP.
The RS 232 connection is for applying patches and upgrades
to the software and is specifically for the use of appointed
qualified service agents. This connection should never be
used in normal operation.
Before connecting the 8000AP to the mains supply make sure
that all the other connections to your AV system have been
properly and securely made. Switch the mains supply at the
wall socket and then using the cable supplied, connect the
socket on the back of your 8000AP to an AC supply outlet.
The 8000AP has been designed to remain connected to
power at all times to optimise its sonic performance. The
8000AP will automatically switch into standby when first
connected to power.
The principal means of disconnection from the mains is the
on/off switch located on the rear panel. This must be kept
unobstructed and freely operable at all times.
OSD. This
connection is purely for viewing the Setup menu on your
TV screen.
