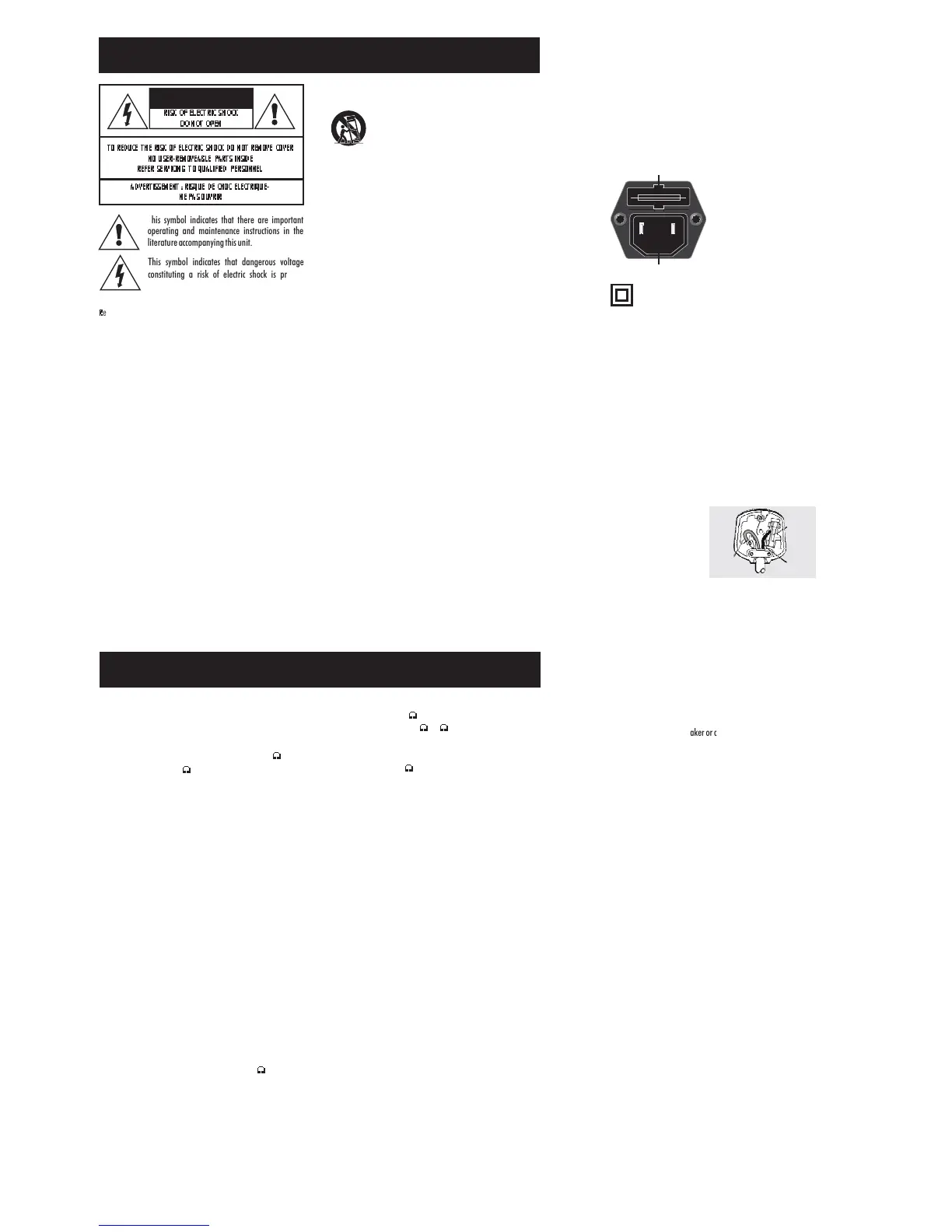

Mains supply and safety
Important notice to UK users
Mains Supply:
Power Cord:
The mains operating voltage of all Audiolab units is
shown on the rear panel. If this does not match the voltage in your area,
consultyourdealer.
The mains supply fuse is located on the rear panel of the unit. If it has
broken, check forany obvious cause before replacingthe fuse with oneof
thecorrectratingandtype. The fusevalues are:
220- 240V (UK,Korea, etc.) T2.5AL 20mm Slow Blow
100- 120V (USA,Japan, etc) T4.0AL 20mm Slow Blow
The fuse is located in a slide-in
carrier which also contains a spare
fuse. The fuse carrier can only be
pulled out after the IECpower cordis
unplugged. When the carrier is
opened the first fuseto beseen is the
spare fuse. Remove and safely
dispose of the fuse with the blown
linkbefore replacing it.
Class II constructiondouble insulated.This product must not be
connectedto earth.
An AC power cord is normally supplied with a mains plug
suitable for your area. If you have any doubts, consult your dealer about
obtaininga suitable powercord.
The appliance cord is terminated with a UK approved mains plug fitted
with a 5Afuse. If the fuseneeds to be replaced, anASTA or BSI approved
BS1362 fuse rated at 5A must be used. If you need to change the mains
plug, remove the fuse and dispose of this plug safely immediately after
cuttingit from thecord.
Connecting a Mains Plug
Thewires in themains leadare colouredin accordance withthe code:
Blue:NEUTRAL; Brown:LIVE:
As these colours may not correspond to the coloured markings identifying
theterminals in yourplug, proceedas follows:
The BLUEwire must be connected
to the terminal marked with the
letter N or coloured BLUE or
BLACK. The BROWN wire must be
connected to theterminal marked
with the letter L or coloured
BROWNor RED.
2.5A FUSE
BS 1362
BROWN
(Live)
BLUE
(Neutral)
Fuse Carrier
IEC Mains Connector
4
ead these instructions.
Keep these instructions. In the event that you pass the product to a third
partythis instruction manualshould be providedalong with theproduct.
Heedall warnings.
Followall instructions.
Donot use thisapparatus near water.
Cleanonly with drycloth.
Donot block anyventilation openings.
Installin accordance withthe manufacturer's instructions.
Do not install near any heat sources such as radiators, heat registers,
stoves,or other apparatus(including amplifiers) thatproduce heat.
Do not defeat the safety purposeof the polarized or grounding type plug.
A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. The
wider blade or the third prong are provided for your safety. If the provided
plug does not fit into youroutlet, consultan electricianfor replacement of
theobsolete outlet.
Protect the power cord from being walked on or pinched, particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
Useonly attachments/accessories specifiedby the manufacturer.
Use only with a cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
When a cart is used, use caution when moving the
cart/apparatuscombination to avoidinjury from tip-over.
Unplug this apparatus during lightning storms or when unused for long
periodsof time.
Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture,does not operatenormally, or hasbeen dropped.
To reduce the risk of fireor electrical shock, do not expose this
product to rain or moisture. The product must not be exposed to dripping
and splashing and no object filled with liquids such as a vase of flowers
shouldbe placed onthe product.
No naked flame sources such as candles should be placed on the
product.
Changes or modifications not expressly approved by the
manufacturercould void theuser's authority tooperate this device.
This equipment hasbeen tested and found tocomply with the limits for a
Class B digitial device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
or televisionreception, which can bedetermined bytuning theequipment
off and on,the user is encouragedto try to correct the interference by one
ormore of thefollowing measures:
Re-orientate or re-locate the receiving antenna. Increase the separation
between the equipment and the receiver. Connect the equipment into an
outleton a circuitdifferent from thatto which thereceiver is connected.
Consultthe dealer oran experienced radio/TVtechnician for help.
The batteries supplied with this unit should be treated
with care and not punctured or damaged. Used batteries should be
disposed of in full conformity with recycling regulations in your area.
NEVERdispose of batteriesin a fireor in thegeneral rubbish.
Warning:
Caution:
Important Note:
CAUTION!
RISK OF ELECTRIC SHOCK
DO NOT OPEN
ADVERTISSEMENT : RISQUE DE CHOC ELECTRIQUE-
NE PAS OUVRIR
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER
NO USER-REMOVEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED PERSONNEL
This symbol indicates that there are important
operating and maintenance instructions in the
literatureaccompanying this unit.
This symbol indicates that dangerous voltage
constituting a risk of electric shock is present
withinthis unit.
1: Statutory & Safety Information
Rated Output Power
Inputs
Gain
Signal To Noise Ratio
Frequency Response
Total Harmonic Distortion & Noise
Channel Balance
Channel Separation
Crosstalk
Polarity (phase)
Pre-amp Output
Headphone Output
Record Output
Muting
Accessories Supplied
Colour
Operating Temperature Range
Power Requirements
Dimensions
Weight
60 W (18 dBW) per channel into rated load impedance (8 Ohms)
withboth channels driven
CD, TUNER, AUX, VIDEO, TAPE 1, TAPE 2: 125mV/20k IHF
POWERAMP:782mV/47 k
PRE-AMP:9dB@ 1kHz
POWERAMP:29.0dB @ 1kHz.
CD,TUNER, AUX, VIDEO,TAPE1, TAPE2:
Betterthan 80dB(IHF,rel. 0.5 Vpre-amp output)
POWERAMP:betterthan 80dB(IHF,rel. O dBW)
CD,TUNER, AUX, VIDEO,TAPE1, TAPE2 andPOWER AMP:
20Hz-20 kHz ±0.5dB: 1Hz-65 kHz -3dB.
Lessthan 0.07 %
Within1 dB
Betterthan 60 dB@ 1 kHzany input
Betterthan 80 dB@ 1 kHz
Non-invertingfor all inputsand outputs
PREOUT 1 andPRE OUT 2:Output Impedance 100
MaximumOutput >7.3 V RMS
Outputimpedance: 330
(Suitablefor headphones 8 -2k impedance)
VIDEOOUT,TAPE1 OUT, TAPE2 OUT:
Outputimpedance: 1 k .
Gainfrom input torecord output 0dB (x1)
Mutingcontrolled manually orautomatically
ACPowerCord
InstructionManual
8000RCRemote Controlwith 2 xAA batteries
Silver
10-35°C
(Dependingon Region)
50-60Hz 100 V, 110-120 V, and 220-240 V models available
MaximumPowerConsumption: 440VA
(WXHXD)
445x74x335mm - includingfeet, terminals andcontrols
445x 64 x302 mm- excludingfeet, terminals andcontrols
Net:7.4 kg
Shipping:8.8 kg
Audiolab reserves the right to alter design and specification
withoutnotice. Specification mayvary for differentcountries.
Audiolabis a memberof the InternationalAudio Group.
9
9
9
9
99
9
6: Specifications 8000S
Power Amplifier Protection Circuits
Short Circuit Protection:
DC Offset Protection:
Thermal Protection:
If the output terminals are connected together or there
is a short causedby afaulty speaker or connecting lead,the amplifierwill muteand
un-muteuntil the faultcondition is removed.
If there isan internal or external faultwhich may cause DC
voltage to be presented to the loudspeaker, the amplifier will mute and stay muted
untilthe fault isremoved.
If the amplifier is driven excessively for long periods, or the
output devices are pushed beyond their safe operating area, the amplifier will
switchoff and thenswitch back onagain when ithas cooled down.
Inall cases, ifthe amplifier doesnot respond toremedial action, consultyour dealer.
