Applications at a Glance…
1) Easily add excellent TV sound
2) Plan future upgrades with amplifier Zone B output

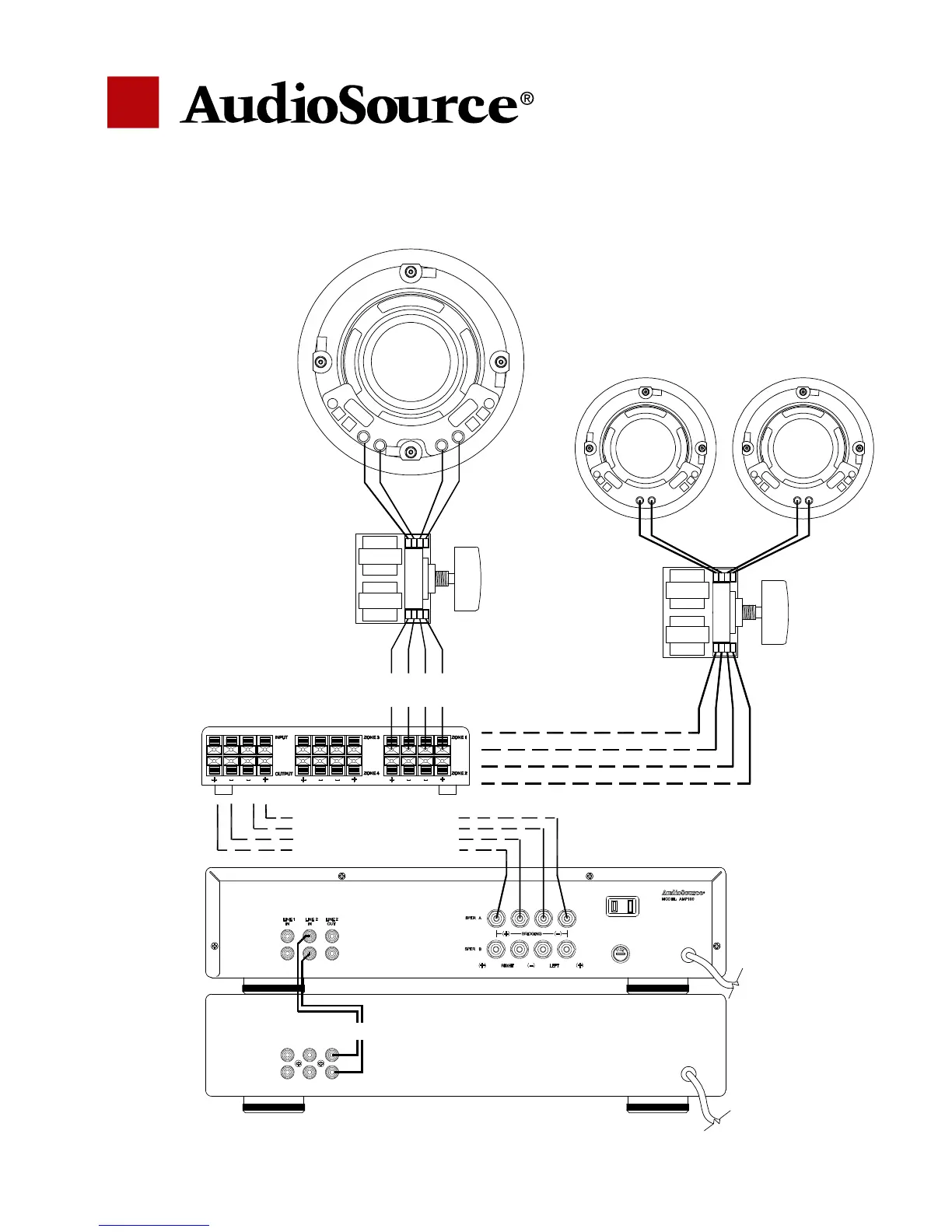

Whole house distributed audio is a snap with the added power of AudioSource AMP Series
power amplifiers. Just add a selector and/or some impedance matching volume controls and
connect to all the desired audio zones you want!
Line 2 IN
(Primary Input)
Audio Out
Amplifier
AMP 100
AMP 102
AMP 110
AMP 210
AMP 310
Source:
Receiver
MP3
CD
PC
Satellite Radio
Amplifier Zone A Output
to Speaker Selector
AE4SW-AE6SW
ZONE 1 - 6
Output to Volume Controls
DUAL MONO SPEAKER ZONES
Kitchen
Bathroom
Hallway
Entry
Master Closet
Laundry Room
Pantry
Dual Mono Speaker Models:
AC6CD
AC8CD
STEREO CEILING
SPEAKER ZONES
Bedrooms
Living Room
Dining Room
Study
Kitchen
Garage
IMPEDANCE MATCHING
VOLUME CONTROLS
Models:
AE100VC
VMT-100
Ceiling Speaker Models:
AC5C
AC6C
AC8C
AE5C
AE6C
AE8C
1) Connect any source, including whole house systems
2) Scale to any number of zones by adding another amp (Line 2 OUT), or another
speaker selector (ZONE B OUT).
