128-8776
6 of 8

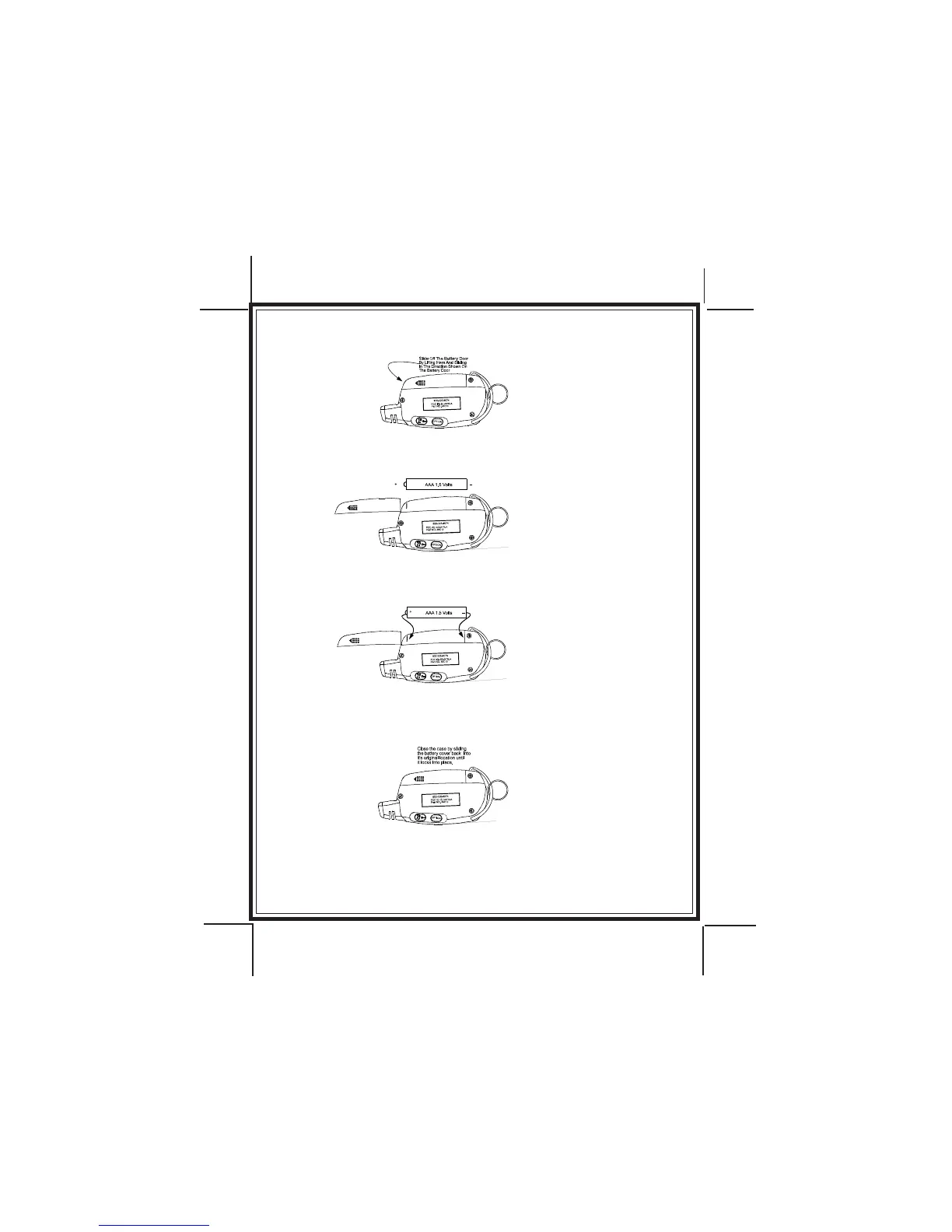

To replace the transmitter battery:
1. Slightly lift the battery cover where shown and slide in the direction noted
on the cover.
2. Remove the discharged battery noting the orientation of the contacts.
Properly dispose of the discharged battery.
3. Install a fresh AAA battery being certain to align negative to negative and
positive to positive as shown.
4. Replace battery cover by sliding into it’s original location until it is fully seated.
6
