Audiovox CarStream - Connection Diagram: Bluetooth & Satellite

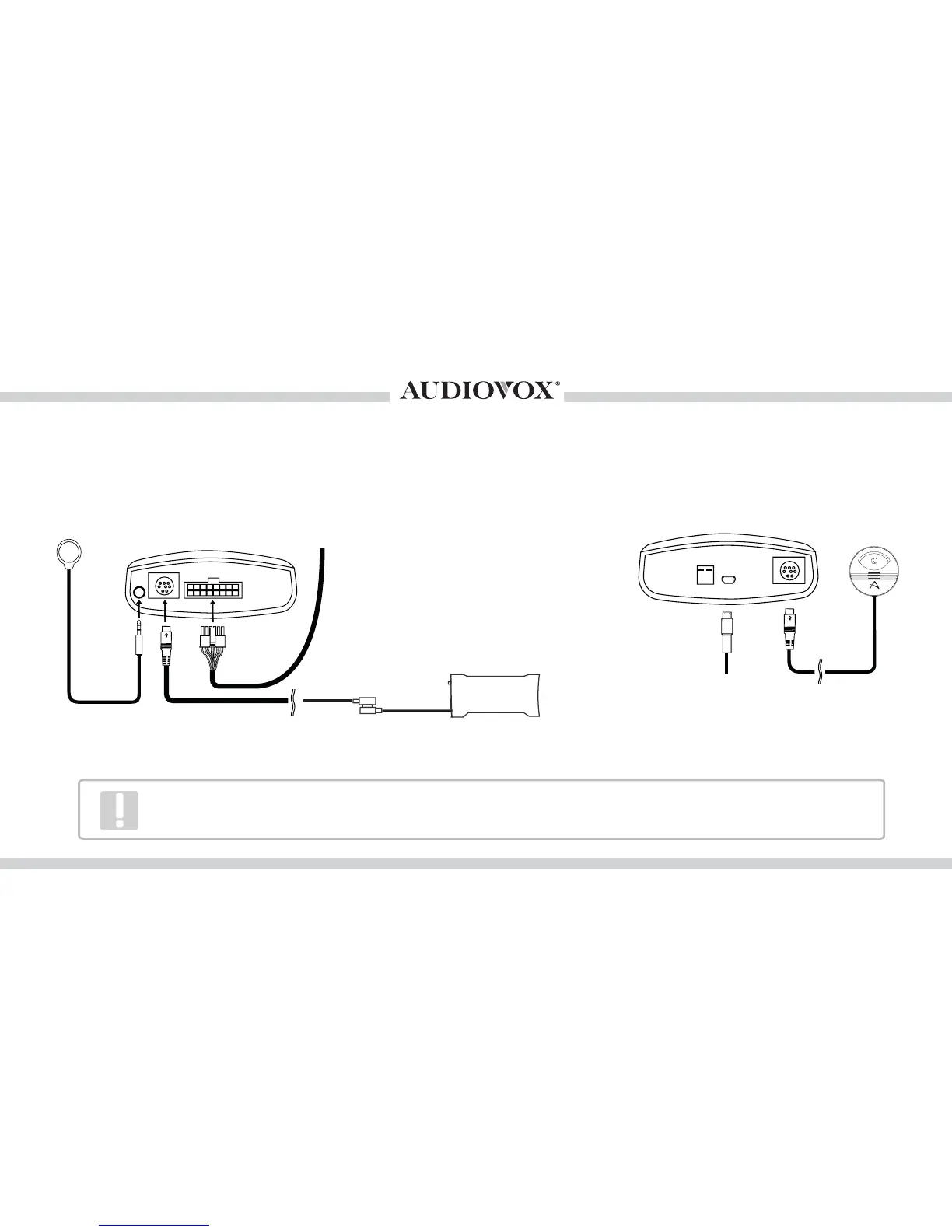

Connection diagram - Bluetooth and Satellite inputs
11
*Do not connect the Bluetooth module under any curcumstance to the SIRIUS connector!
Improper connection will cause permananet damage to the Bluetooth / Interface module.
IR Receiver
(optional)
CarStream Module
(front)
CarStream Module
(back)
Bluetooth Module
Vehicle Connector
Use Legacy SIRIUS
SCC1 Tuner
or
VEHICLE TUNER
SiriusXM Vehicle Tuner
(Not included)
Adapter cable
AACCSATCBL
(optional)
Upgrade Port
USB to PC
or MAC computer
