Audison SR Series User Manual

User’s Manual
49
LEVELS (INPUT SENSITIVITY)
0.32 V
(Max)
8 V
(Min)
FULL RANGE
40k Hz
Hz
HI- PASS @ 12 dB/Oct.
50 500
x1
Hz
HI- PASS @ 12 dB/Oct.
50 700
x1
Hz
HI- PASS @ 12 dB/Oct.
500 5k
x10
A Ch MODE
FULL RANGE
40k Hz
B Ch MODE
BAND @ 12 dB/Oct.
50
500
700 5000
HI-PASS
B Ch
LO-PASS
A Ch
C Ch FILTER MODE
AMP OUT
FULL RANGE
40k Hz
PASS MODE
FULL HI LO
PASS MODE
FULL HI LO
AMP OUT
HI-PASS @ 12 dB/Oct.
Hz 50 700
PASS MODE
FULL HI LO
AMP OUT
LO-PASS @ 12 dB/Oct.
Hz50 700
Hz

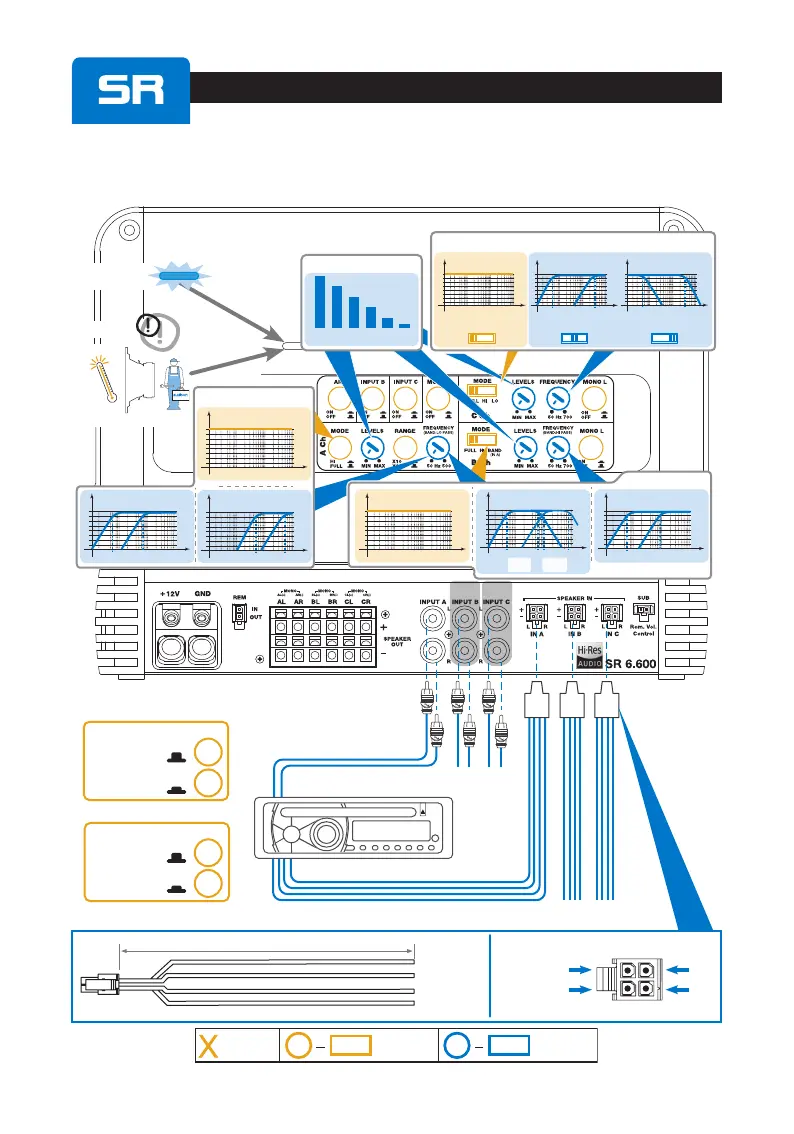

SR 6.600
**
****
Adjustment
CONTROLS
Not
AVAILABLE
::
Set-up
CONTROLS
:
graygray/black
whitewhite/black
FRONT VIEW
gray
gray/black
white
white/black
Wire size: 20 AWG
320mm / 12.6 in
POWER ON
LEDBlue
LED Red
CHECK
INPUT C
OFF
If using INPUT A
only, select:
ON
If using INPUT C
select:
**
NOTE
INPUT B
If using INPUT B
select:
ON
*
NOTE
If using INPUT A
only, select:
OFF
SPEAKER IN
A Ch
SPEAKER IN
B Ch
SPEAKER IN
C Ch
HI-LEVEL OUT
PRE OUT
PRE IN
A Ch
PRE IN
B CH
PRE IN
C Ch
FOR EACH INPUT
(A Ch - B Ch - C Ch )
USE PRE-IN
OR SPEAKER IN
NOT BOTH
L
R
R
L
SOURCE
