Audison SR Series User Manual

User’s Manual
42
1: Power supply cable 2: Speakers cable
Applied power Cable diameter
Connection length
*Current Draw I (A)
Cable Length (m)
B
D C
A
E
A B C D E
SR 1.500
264 234 155 135 47,5
mm
10.39 9.21 6.1 5.31 1.87
in.
SR 4.300
190 160 155 135 47,5
mm
7.48 6.3 6.1 5.31 1.87
in.
SR 4.500
264 234 155 135 47,5
mm
10.39 9.21 6.1 5.31 1.87
in.
SR 5.600
294 264 155 135 47,5
mm
11.57 10.39 6.1 5.31 1.87
in.
SR 6.600
314 284 155 135 47.5
mm
12.36 11.18 6.1 5.31 1.87
in.
2

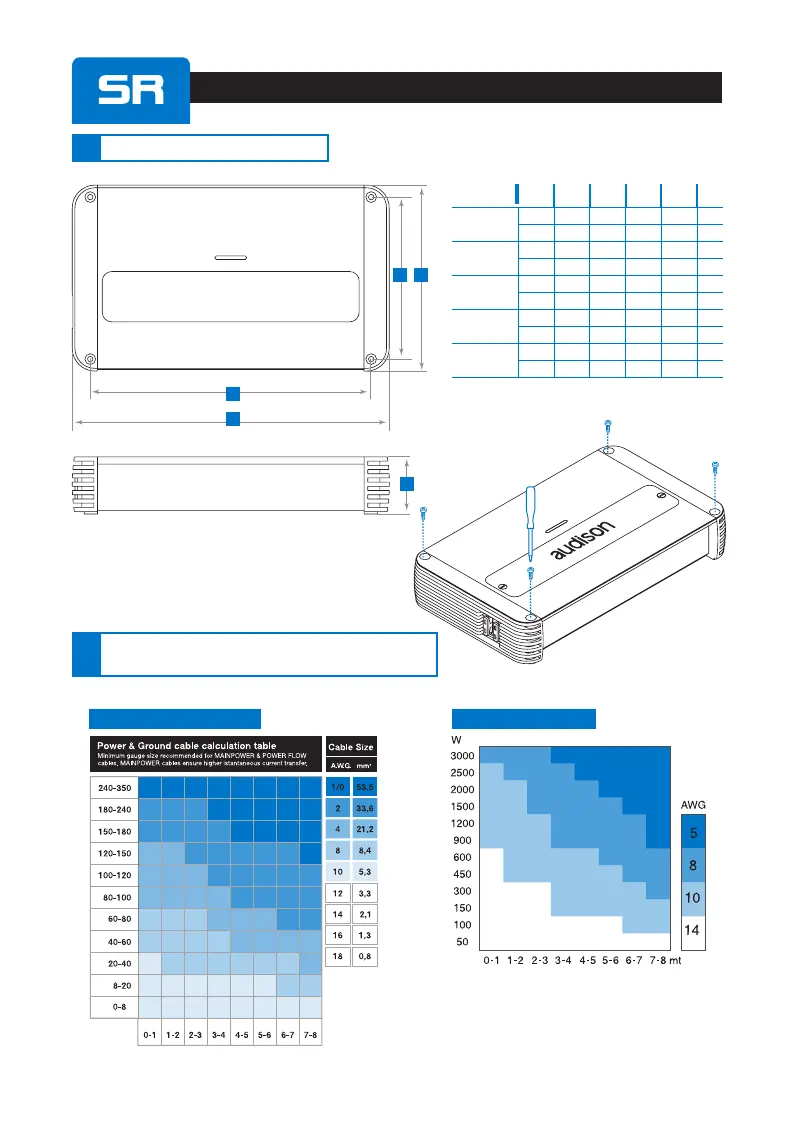

INSTALLATION AND SIZES
3
CABLE SIZE CALCULATION TABLES:
1: Power supply cable / 2: Speakers cable.

Audison SR Series Specifications

General

Brand	Audison
Model	SR Series
Category	Car Stereo System
Language	English
