Audison SR Series User Manual

User’s Manual
43
APPLY A FUSE CLOSE
TO BATTERY
POSITIVE POLE
TO PROTECT
BATTERY CABLE
REMOTE
REMOTE
OUT
SOURCE
BATTERY
12 V
FUSE
GND
GND
WARNING
MAX 20 cm / 7.9 in.
BATTERY
12 V
GND
GND
FUSE
SR 1.500
2 x 35A
SR 4.300
1 x 30A
SR 4.500
2 x 25A
SR 5.600
2 x 25A
SR 6.600
2 x 30A
BATTERY
12 V
FUSE HOLDER
GND
GND
GND
4

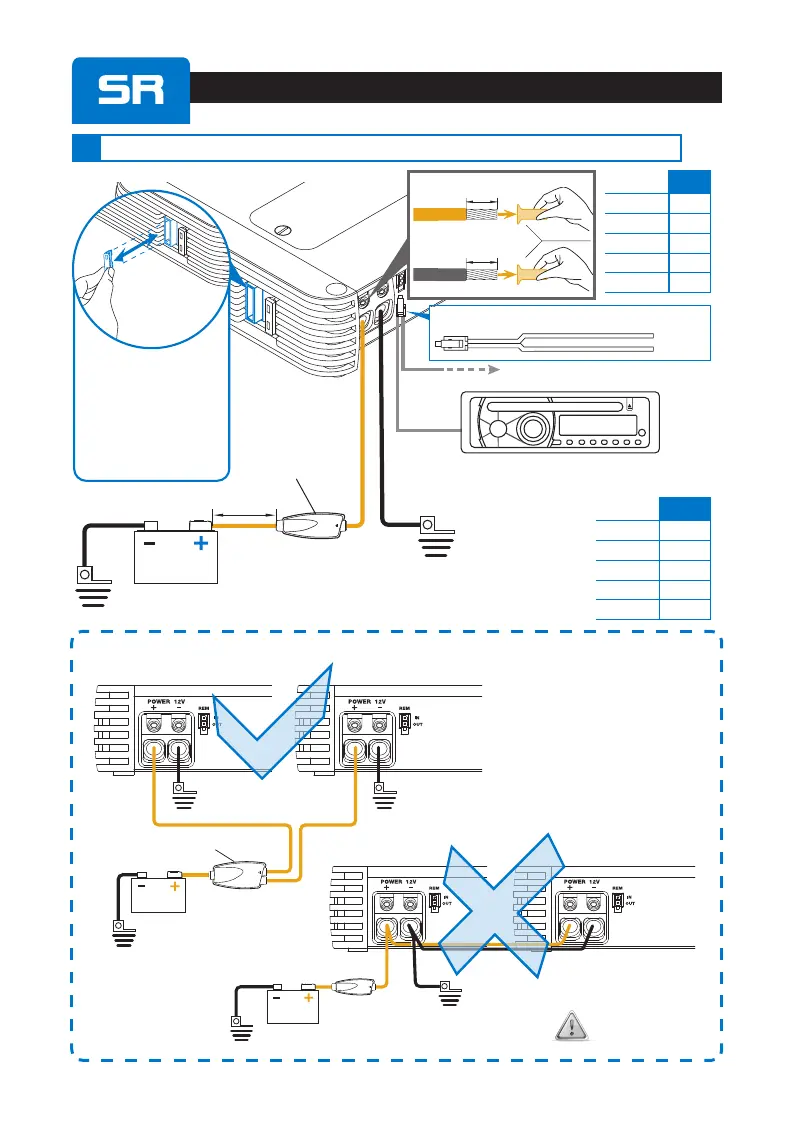

POWER SUPPLY and REMOTE IN CONNECTION / FUSE REPLACEMENT
Rem OUT
Rem IN
REMOTE CABLE CONNECTION
FUSE
REPLACEMENT
WARNING:
Firmlypresscontacts
ofeachfuseintro
theirfuse-holderclips.
MULTIPLE POWER SUPPLY CONNECTION
AMP 1
AMP 1
AMP 2
AMP 2
POSITIVE
AWG
AWG
NEGATIVE
15 mm / 0.6 in.
15 mm / 0.6 in.
POWER SUPPLY
Ferrules
AWG
SR 1.500
4
SR 4.300
6
SR 4.500
4
SR 5.600
4
SR 6.600
4
