auer HTi70 6 - 6.6 - Sensor Data Curve Charts; 6.7 - Modifications, Decommissioning, and Disposal

- MANUAL HTi
70
6 & 8 KW HEAT PUMPS -
15
0
50
100
150
200
250
300
350
-40 -30 -20 -10 0 10 20
°C
k:

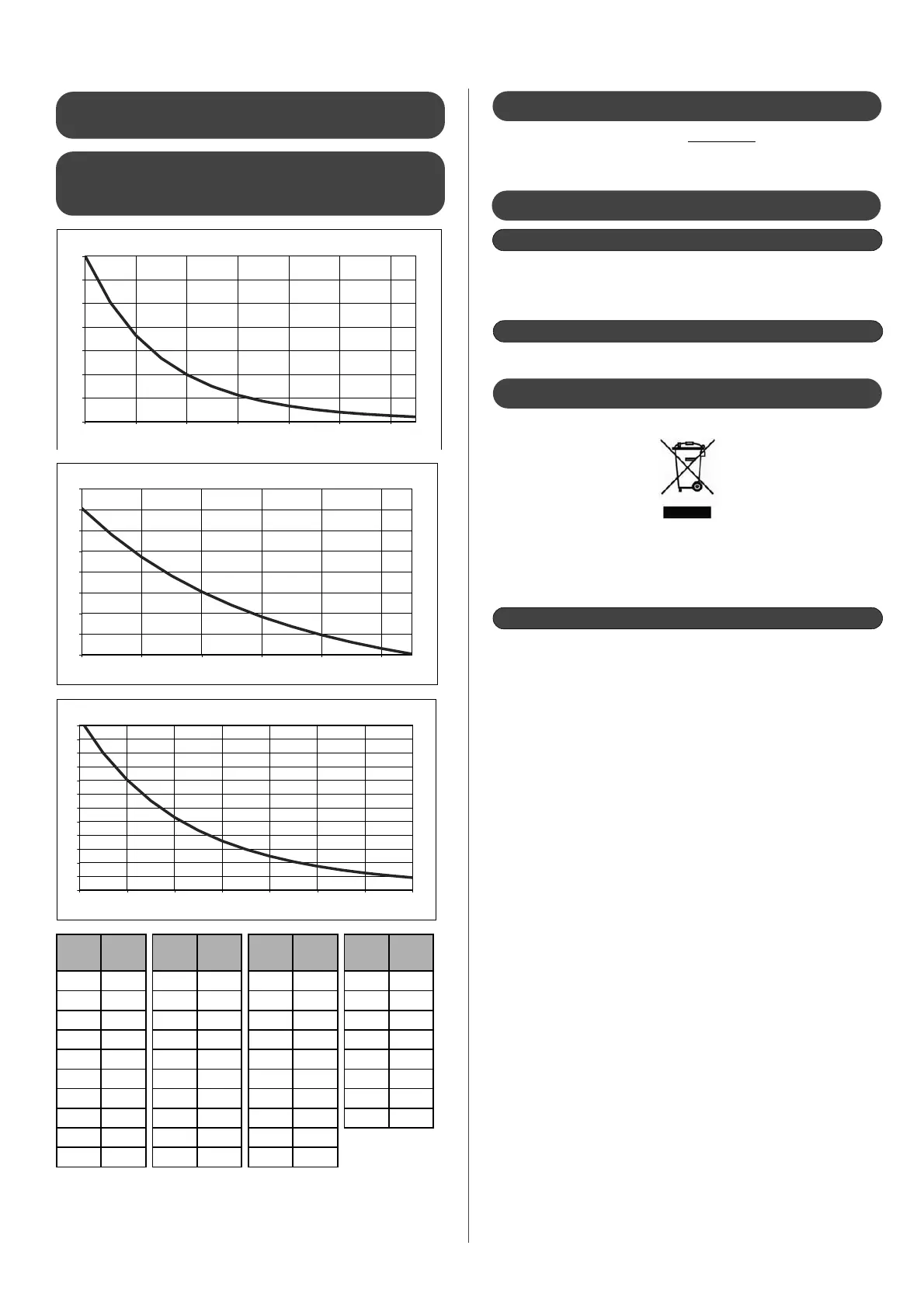

6.6 - Sensor data curve charts
6.6.1 - Water inlet and outlet - de-icing sensor
- air intake sensor - sensors installed on
compressors 1 and 2 -
0,2
0,3
0,4
0,5
0,6
0,7
0,8
0,9
1,0
90 100 110 120 130 140
°C
k:
Temp.
(°C)
Value of
the sensor
(KOhms)
Temp.
(°C)
(KOhms)
Temp.
(°C)
(KOhms)
Temp.
(°C)
(KOhms)
-40 351.078 10 20.017 60 2.472 110 0.504
-35 251.277 15 15.768 65 2.068 115 0.439
-30 182.451 20 12.513 70 1.739 120 0.384
-25 133.827 25 10.000 75 1.469 125 0.336
-20 99.221 30 8.045 80 1.246 130 0.296
-15 74.316 35 6.514 85 1.061 135 0.261
-10 56.202 40 5.306 90 0.908 140 0.231
-5 42.894 45 4.348 95 0.779 145 0.204
0 33.024 50 3.583 100 0.672
5 25.607 55 2.968 105 0.581
Value of
Value of
Value of
the sensor the sensor the sensor
0
1
2
3
4
5
6
7
8
9
10
11
12
20 30 40 50 60 70 80 90
°C
k:
6.7 - Modi cation
Any modi cation of the device is prohibited. Any replacement of
components must be done by a professional with original parts
from the manufacturer.
6.8 - Decommissioning
In the event of a prolonged absence with a power cut to the
housing and product, ask a quali ed professional to drain the
product or protect it from freezing.
6.8.1- Interim Decommissioning of Product
6.8.2- Final decommissioning of the product
Turn off the product to a specialized installer.
6.9 - Recycling and Disposal
Entrust the disposal of the packaging to the installer who installed
the product.
The above symbol requires:
- Do not dispose of the product with the household waste.
- Dispose of the product at a collection point for used electrical
and electronic equipment.
The product contains refrigerant R290 (propane).
- Routinely dispose of refrigerant to qualifi ed personnel.
-Follow the general safety conditions.
6.9.1- Disposal of refrigerant
