5.1 - Standard con guration
5 - INSTALLATION
• The Heat pump must be installed outside exclusively.
• Avoid any obstruction of the airfl ow of the ventilator.
Ensure that there is nothing blocking the exchanger’s air circulation. Ensure that the Heat pump is placed so that
it is sheltered from dominant winds.
It is prohibited to install the Heat pump:
• In a non-ventilated room.
•
Near sources of excessive heat, combustible
materials, or near ventilation points of adjacent
buildings.
•
Near a kitchen or workshop exhaust ducts; this
can result in a mixture of oil and air settling onto
the heat exchanger fi ns which could hamper its
performance.
•
In an area with fl ammable gaz, acidic substances,
or alkalines which could cause irreversible
damage to the copper-aluminium heat
exchanger.
PROHIBITED INSTALLATION
• Avoid installing the Heat pump in a
location subject to noise reverberation such
as near windows or near the corners of buildings.
• As the condensates draining trough slopes
downward, the Heat pump must be installed on a
level base.
• The Heat pump must be easily accessible so as to
facilitate access for inspections and maintenance.
IMPORTANT INSTALLATION RULES

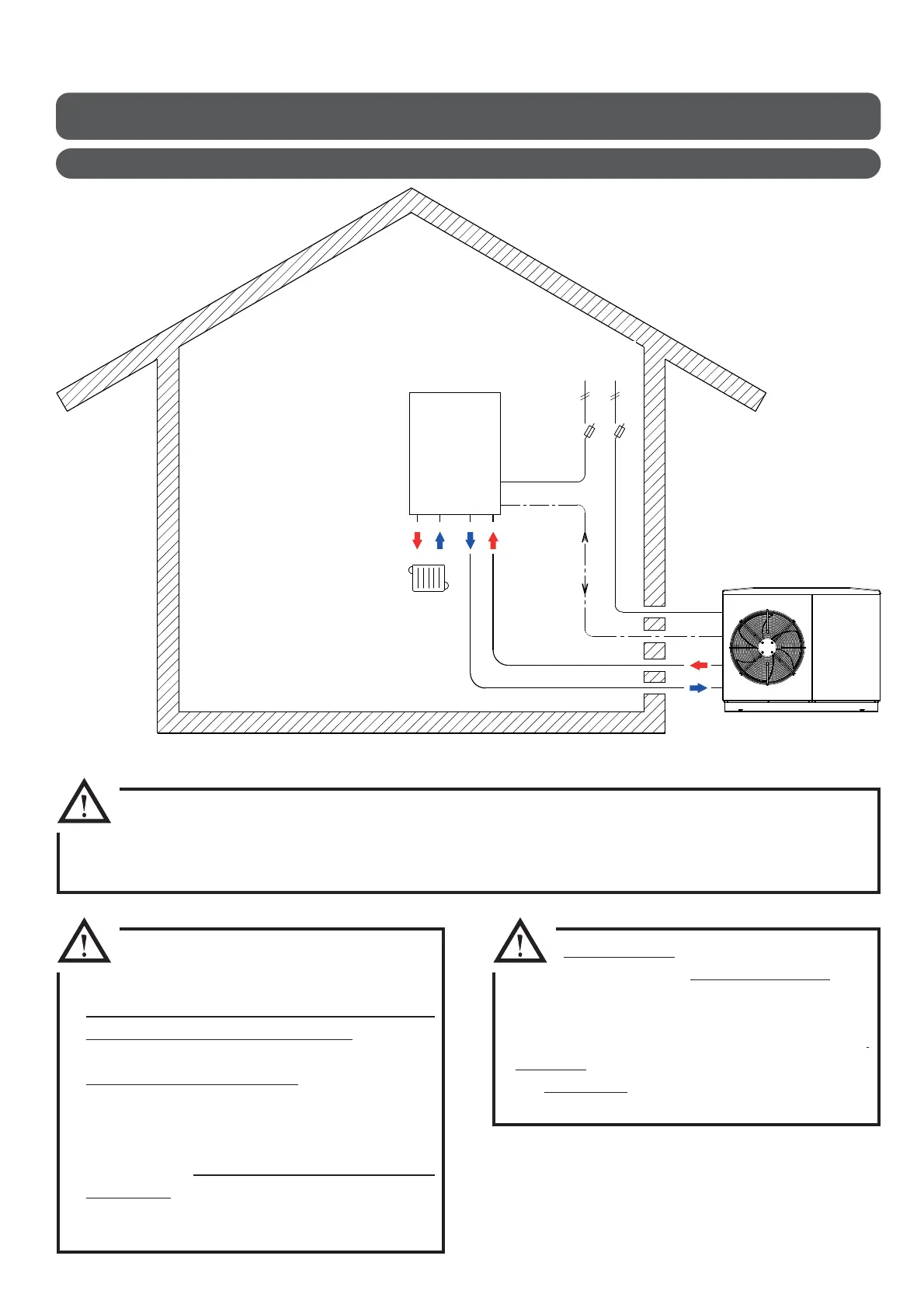

Pilot
HTi
70
heat pump
2 electrical supplies
230V single phase
hydraulic
connection
communication
cable
2-core sheathed
