Aura VENOM-D41DSP - Connection

WARNING
DO NOT OPEN
Entrance for connecting the radio antenna
(not included in the kit)

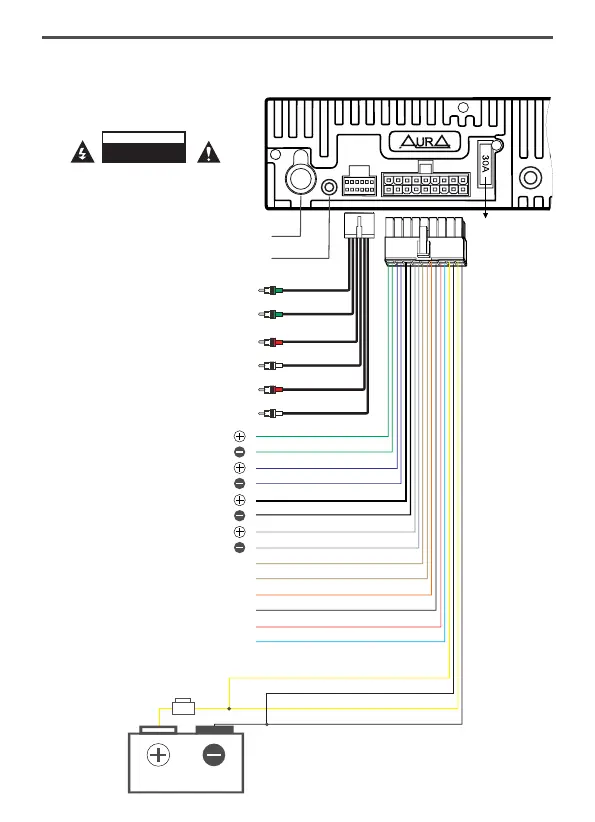

Connection
fuse
5
Blue (3)
Red (12)
Black (4)
Orange (13)
Brown (5)
Brown / black (14)
Gray / black (6)
Gray (15)
White / Black (7)
White (16)
Purple / black (8)
Purple (17)
Green (18)
Green / Black (9)
1
1018
9
The rear left channel
The rear right channel
Front left channel
Front right channel
Connection of buttons on the steering wheel (SWC K1)
Connection of buttons on the steering wheel (SWC K2)
Connection of buttons on the steering wheel (mass)
Managing wire +12V. (remote)
+12V. With the assigned ass
To the switch of the overall lights (+12v.)
Battery
WARNING! Yellow (11 and 10) and black (2 and 1) power wires must be connected directly to the
corresponding battery terminals using a copper cable with a cross section of at least 4 mm (12GA)!
Connecting to the standard wiring or to the standard ISO connector is not allowed!
Entrance for connecting an external microphone
(Aura AMM-Mic1, is not included)
Yellow (10)
Yellow (11)
Black (1)
Black (2)
30A
Fuse
2
4mm
2
4mm
2
Subwoofer, right channel
Subwoofer, left channel
Front left channel
Front right channel
The rear right channel
The rear left channel
IMPORTANT! It is necessary to install an additional fuse
with a face value of 30a no further than 30cm from a plus
battery terminal!
SUB R
SUB L
REAR R
REAR L
FRONT R
FRONT L
