AUSA CH 200 - Greasing Points; Rear Axle and Drive Joints Greasing; Mast and Cylinders Greasing

36
CH 200 / CH 250
Greasing
points

Greasing points
Rear axle
1 nipple in the frame articulation axle.
2 WD models:(fig.1)
1 nipples in axle articulation
2 nipples, 1 on each wheel kingpin.
4 WD models:
4 nipples, 2 on each articulation of the wheel reduction gears.
Universal drive joints (only 4 WD models) (fig.2 and 3)
2 nipples on each joint (figs. 3 and 4).
Mast support (fig.4)
2 nipples, 1 on each articulation mast axle (fig. 5)
Tilting cylinders (fig.5)
2 nipples, 1 on each articulation axle (fig. 6)

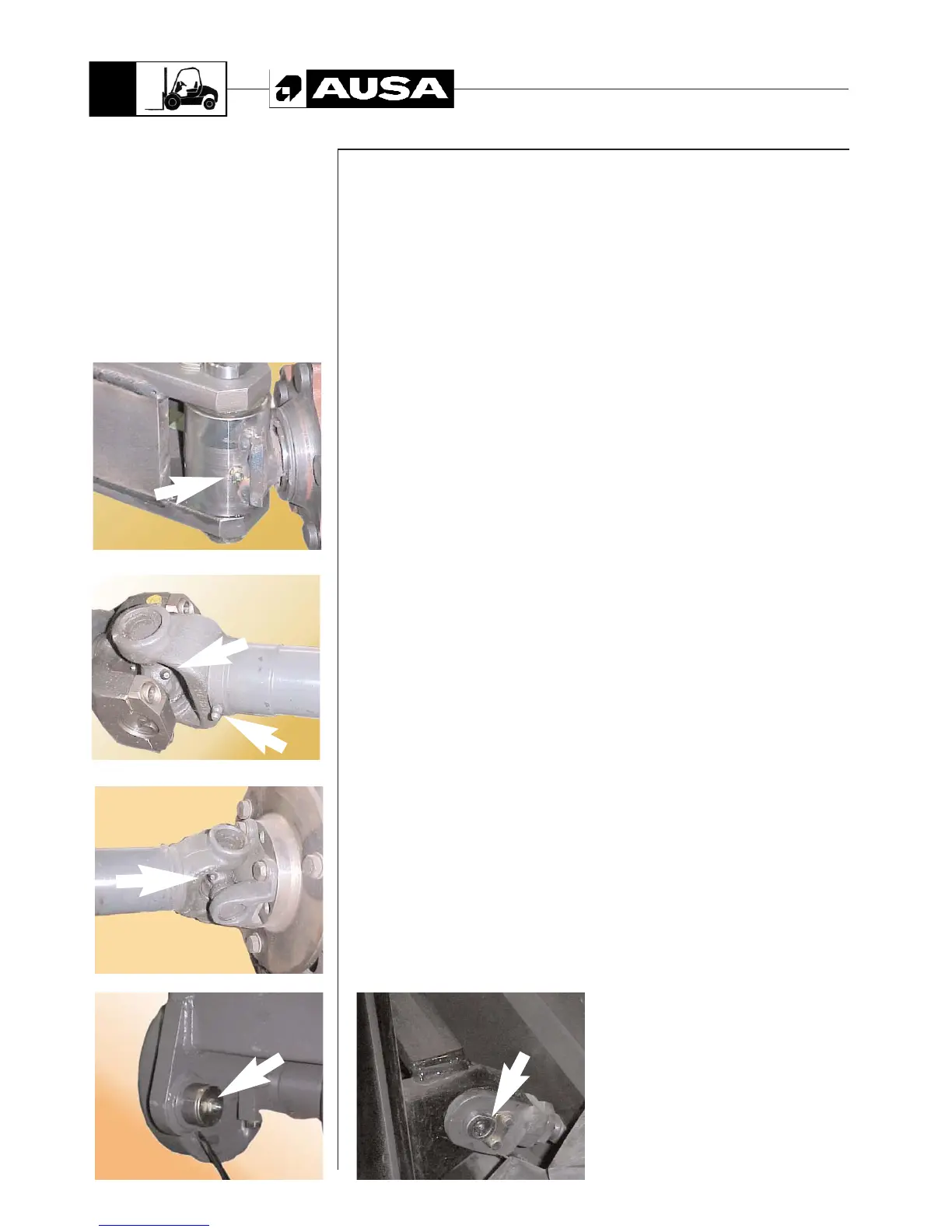

(fig. 3)
