8

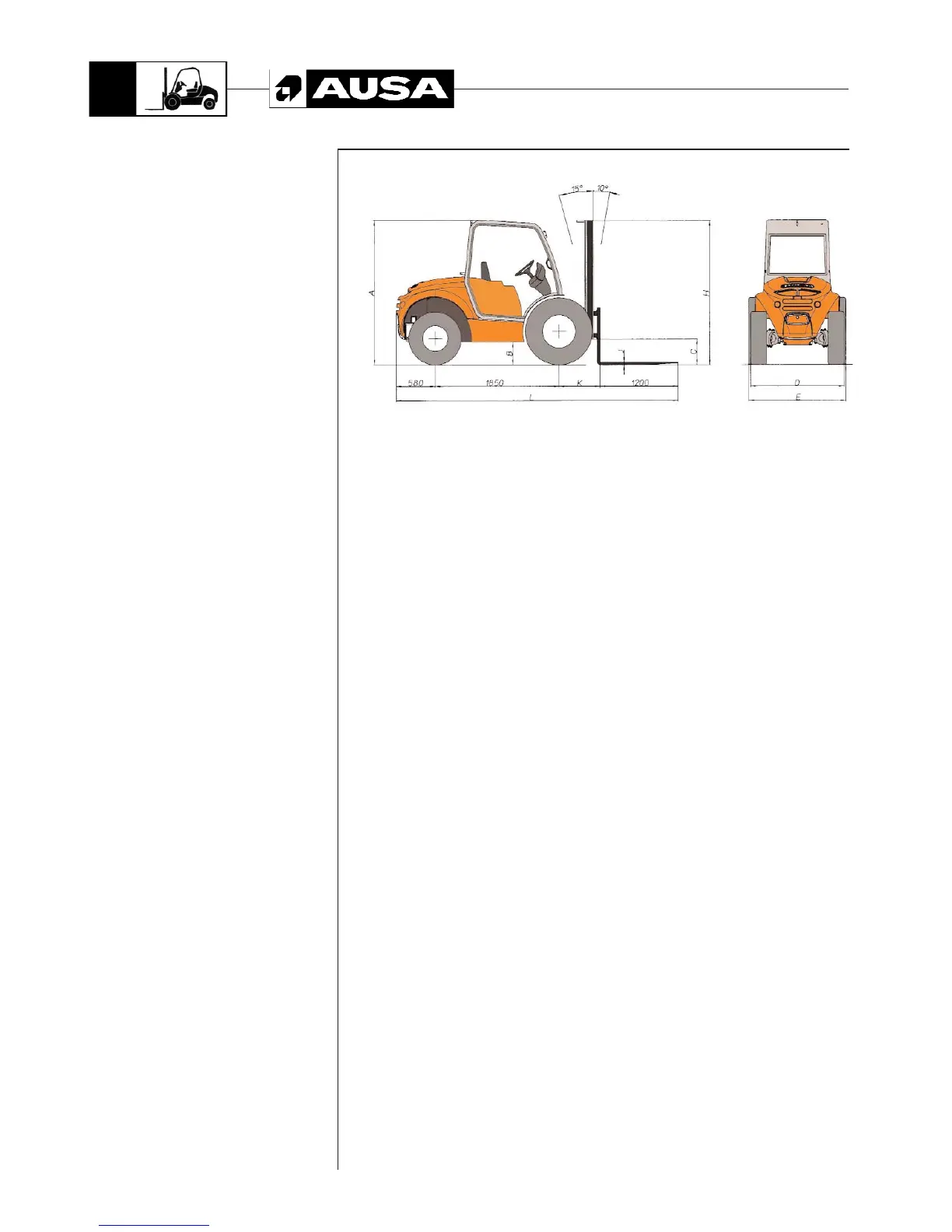

CH 200 / CH 250
Technical
characteristics
Diesel engine
Four cylinders, four stroke, water-cooled. Electrical starter. Mixed radiator (water/oil).
CH 200: Isuzu 4LE2 - Tier II - Power 51HP (37.5 Kw in accordance with DIN 70020) or 46 HP
(34.5 kw at 2,700 rpm in accordance with DIN 6270B).
CH 250: KUBOTA V2003T - Power 62.9 HP (46.3kw in accordance with DIN 70020) or 42.6 HP
(42.6kw at 2,700 rpm in accordance with DIN 6270B).
See the engine instructions handbook.
Transmission
Hydrostatic system with variable flow pump.
Both models with 2 wheel drive version (2WD) and 4 wheel drive version (4WD).
CH 200: Hydrostatic motor of two speeds selected by electrical switch. 4,713 PSI(325 bar).
CH 250: Hydrostatic motor of variable flow. 6,091 PSI (420 bar)
Directional control
Forward / Backward direction selected by an electric switch underneath of the joystick. When a
direction is selected, the arrow lamp indicator light on.
Steering
Hydraulic powered with one double acting hydraulic cylinder on the rear axle.
Working pressure: 2320 PSI (160 bar).
Service Pressures:
CH 200
Compact :
Front. 10.0/75-15.3; 96 PSI (6,5 bar). Rear. 6.50-10; 65 PSI (4,5 bar).
CH 200 :
Front. 11.5/80-15.3; 65 PSI (4,5 bar). Rear. 7.00-12; 123 PSI (8,5 bar).
CH 200x4 :
Front. 11.5/80-15.3; 65 PSI (4,5 bar). Rear. 27x10-12; 123 PSI (8,5 bar).
CH 250 :
Front. 12.5/80-18; 65 PSI (4,5 bar). Rear. 7.00-12; 123 PSI (8,5 bar).
CH 250x4 :
Front. 12.5/80-18; 65 PSI (4,5 bar). Rear. 10.0/75-15.3; 51 PSI (3,5 bar).
Brakes
Service brake. Multidisc sealed hydraulic brake.
Parking brake. Multidisc sealed brake spring applied, hydraulically released.
Hydraulic circuit
One double gear pump for steering system and load function system driven by hydrostatic
pump. Two spool valve block. Maximum load lowering speed controlled by check valve.
Service pressure:
CH 200: 2610 PSI (180 bar).
CH 250: 3190 PSI (220 bar).
Hydraulic tank capacity: 12.4 US gal or 10.34 UK gal (47 liters).
