Original instructions Dynamic Series description

AUTEC Dynamic Series

LIDYNE00-02.fm Part A: Description, warnings and instructions

A - 1

ENG

DYNAMIC SERIES

Part A: Description, warnings and instructions

1 Dynamic Series description

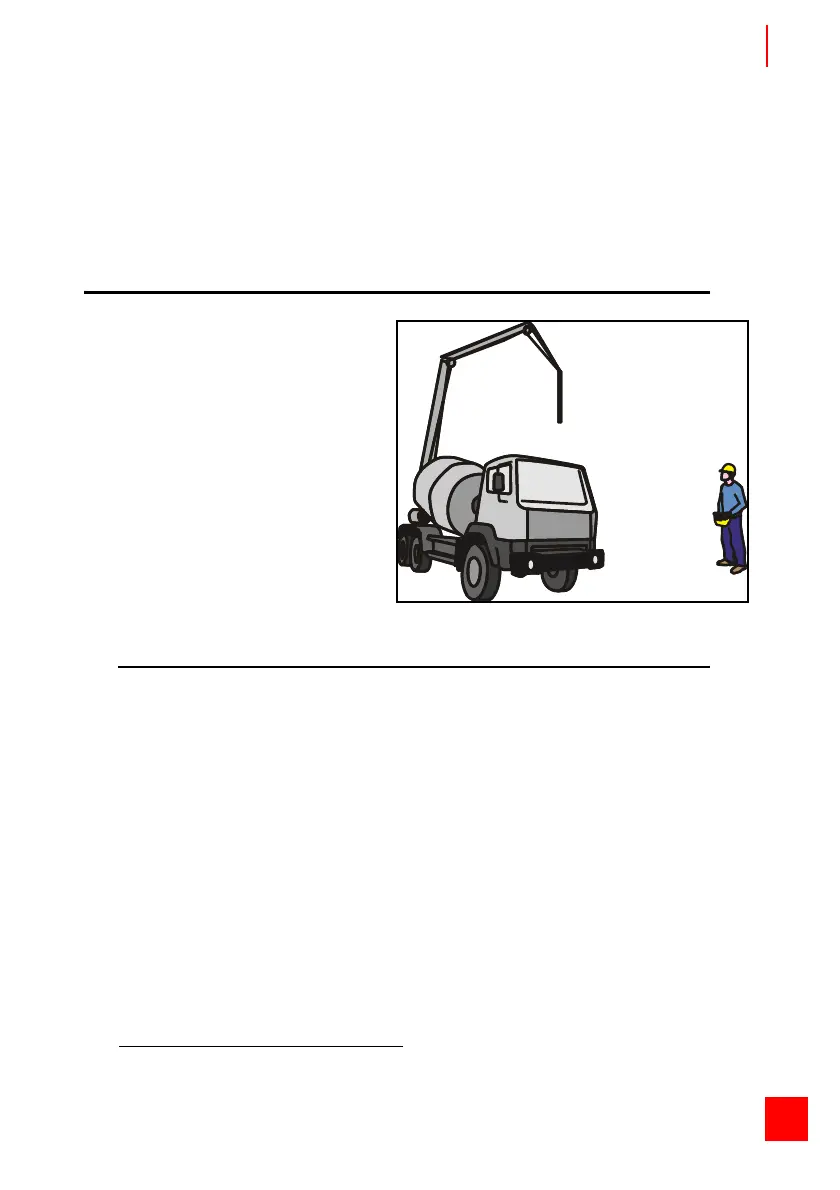

Autec Dynamic series industrial

radio remote controls are used to

control machines from a dis-

tance, without physical connec-

tions (i.e. wires or connecting

cables) between the user and the

machine.

Each of these industrial radio re-

mote controls consists of a porta-

ble transmitting unit, from which

the user can remotely control the

machine, and a receiving unit in-

stalled on board the machine it-

self.

1.1 Technical data

Command response time ................................................................................. 80 - 130 ms

Active stop cut-in time (typical) ............................................................................. < 130 ms

Active stop cut-in time (maximum)........................................................................... 200 ms

Passive stop cut-in time

............................................................................... 0.5 / 1.2 / 2 s

Hamming distance ........................................................................................................ ≥ 15

Probability of undetected error.................................................................................. < 10

-15

Typical working range ................................................................................... 100 m (330 ft)

Working range with Low Power function.......................................................... 30 m (100 ft)

Performance Level of safety functions according to EN ISO 13849-1 / EN IEC 62061:

STOP protection ....................................................................... PL e / SIL 3 (4-wire wiring)

STOP protection ....................................................................... PL d / SIL 2 (2-wire wiring)

Protection against unintended movements from the standstill position (UMFS) .................

........................................................................................................................... PL d / SIL 2

1. Passive stop cut-in time is set by the machine manufacturer (see technical data sheet)
