3. Tap the needed service in the SAS function list. The list may vary by
vehicle.
Steering Angle Sensor Calibration
This function allows users to perform steering angle sensor calibration
and clear records. Available function options vary by vehicle.
1) Tap Steering Angle Sensor Calibration from the SAS function
menu to enter the function screen.
2) Follow the on-screen instructions to set the ignition on/off as guided.
The vehicle battery voltage signal should be in the range of 12.5 to
13.5 volts to proceed with this service, otherwise the scan tablet will
display a warning message.
3) Make sure the steering wheel is in the center position and the front
wheels are straight. Then tap OK to proceed.

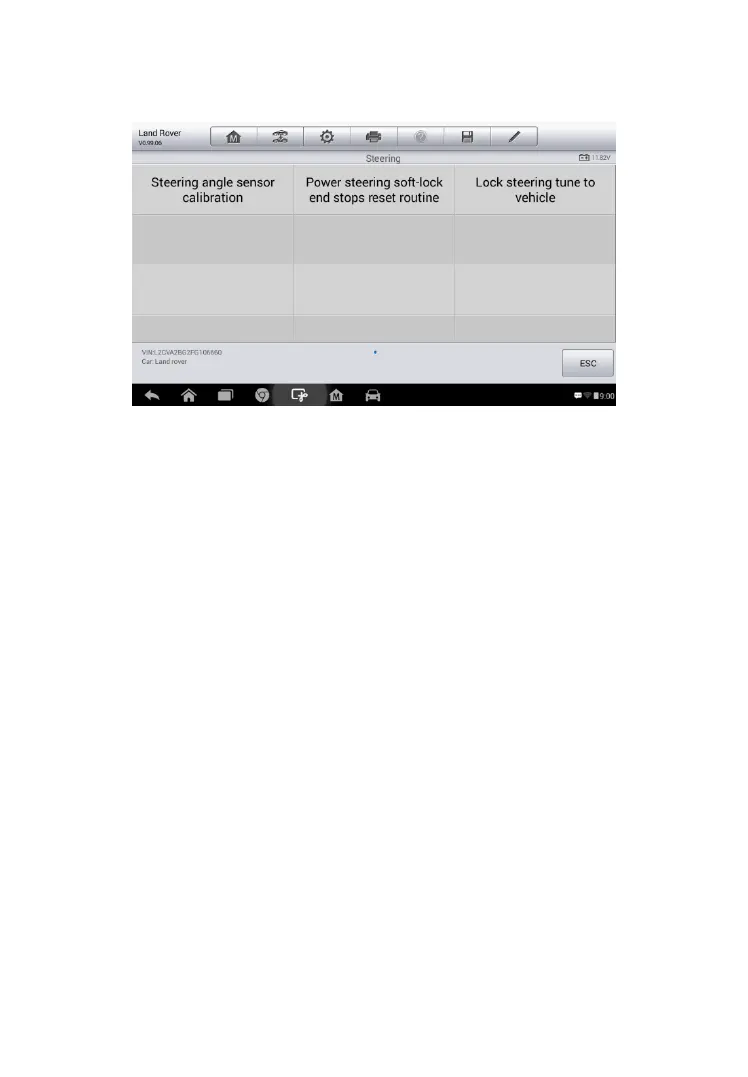

Figure 5-18 Sample SAS Function Menu
