145
4) Read the DTCs to check the calibration of the angle sensor. If DTC PBM-
U210054 has been generated, the calibration has failed. Tap Start to
check the DTCs.

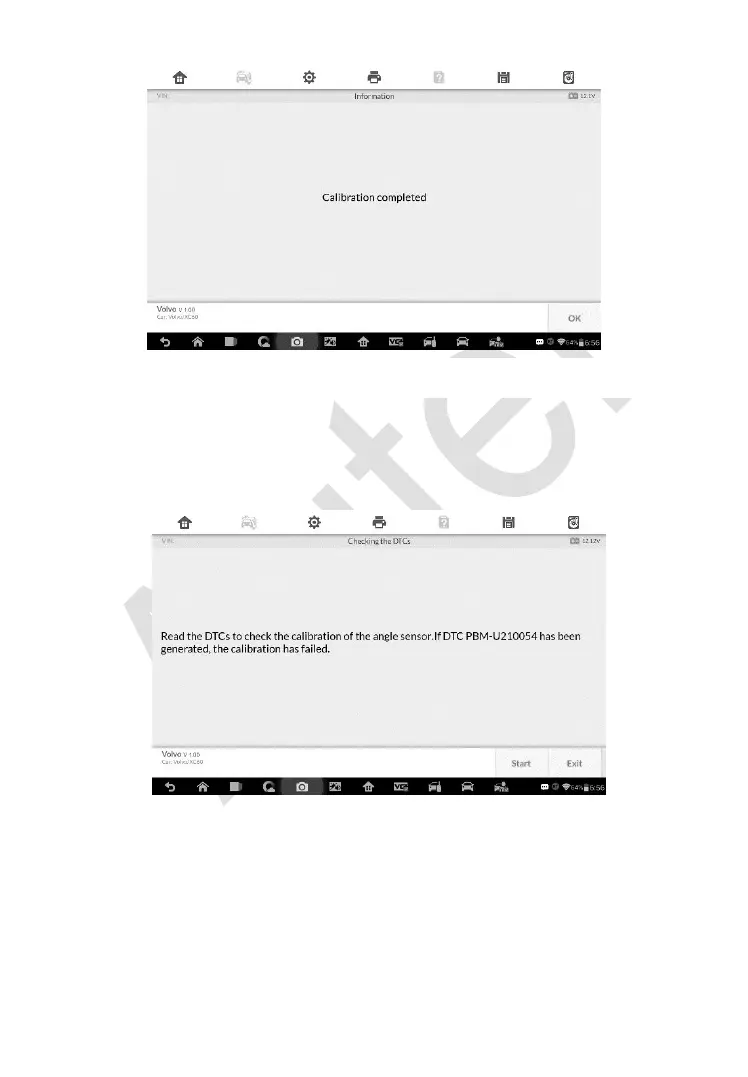

Figure 7-7 Sample Calibration of the Angle Sensor Screen 3
Figure 7-8 Sample Calibration of the Angle Sensor Screen 4
