Auto Crane 3203 PR - Hydraulic Control Valve

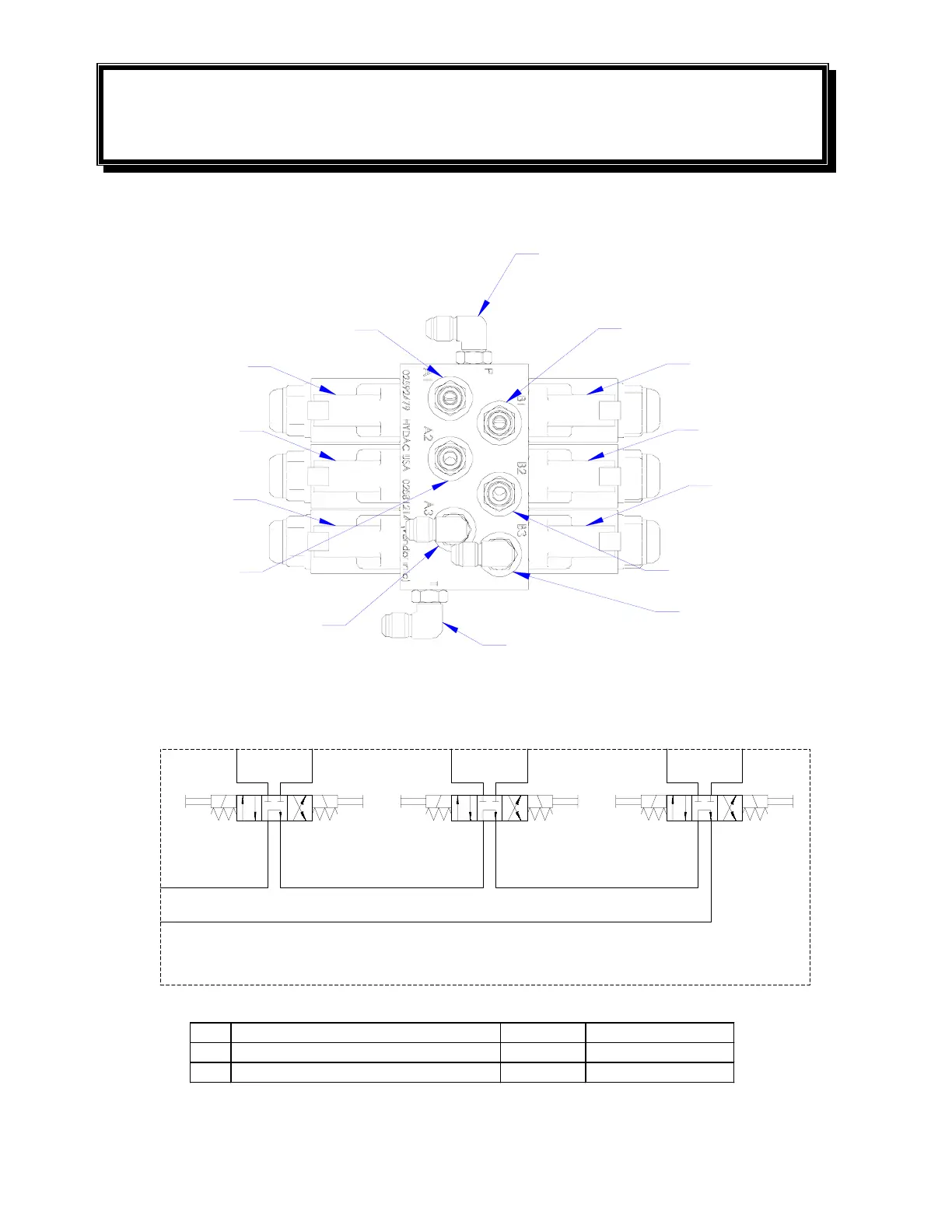

HYDRAULIC CONTROL VALVE
3203 SERIES
7-1.0.0
5/22/2003
RETRAC T C OIL
BOOM UP COIL
ROTATE CCW
COIL
EXTEND COIL
BOOM DOWN COL
ROTATE CW
COIL
EXTEND PORT
(EXT)
RETRACT PORT
(RET)
INSIDE PORT ON
POWER UNIT
(PRESSURE)
TO OUTSIDE PORT ON
POWER UNIT (RETURN)
TO REAR MOTOR
PORT (CCW)
TO FRONT MOTOR
PORT (CW)
BOOM DOWN
PORT (RET)
BOOM UP
PORT (EXT)
A1
(SAE-6)
A2
(SAE-6)
B1
(SAE-6)
B2
(SAE-6)
A3
(SAE-6)
B3
(SAE-6)
P
(6-SAE)
T
(6-SAE)
QTY DESCRIPTION A/C P/N HYDAC P/N
3 SPOOL VALVE, 4WK06G-12X-0-0-N 320826001
6 SOLENOID COIL, 12DN-50-1836 320826002 03091665
