Auto Crane 3203 PR - General and Traveling Block Assemblies

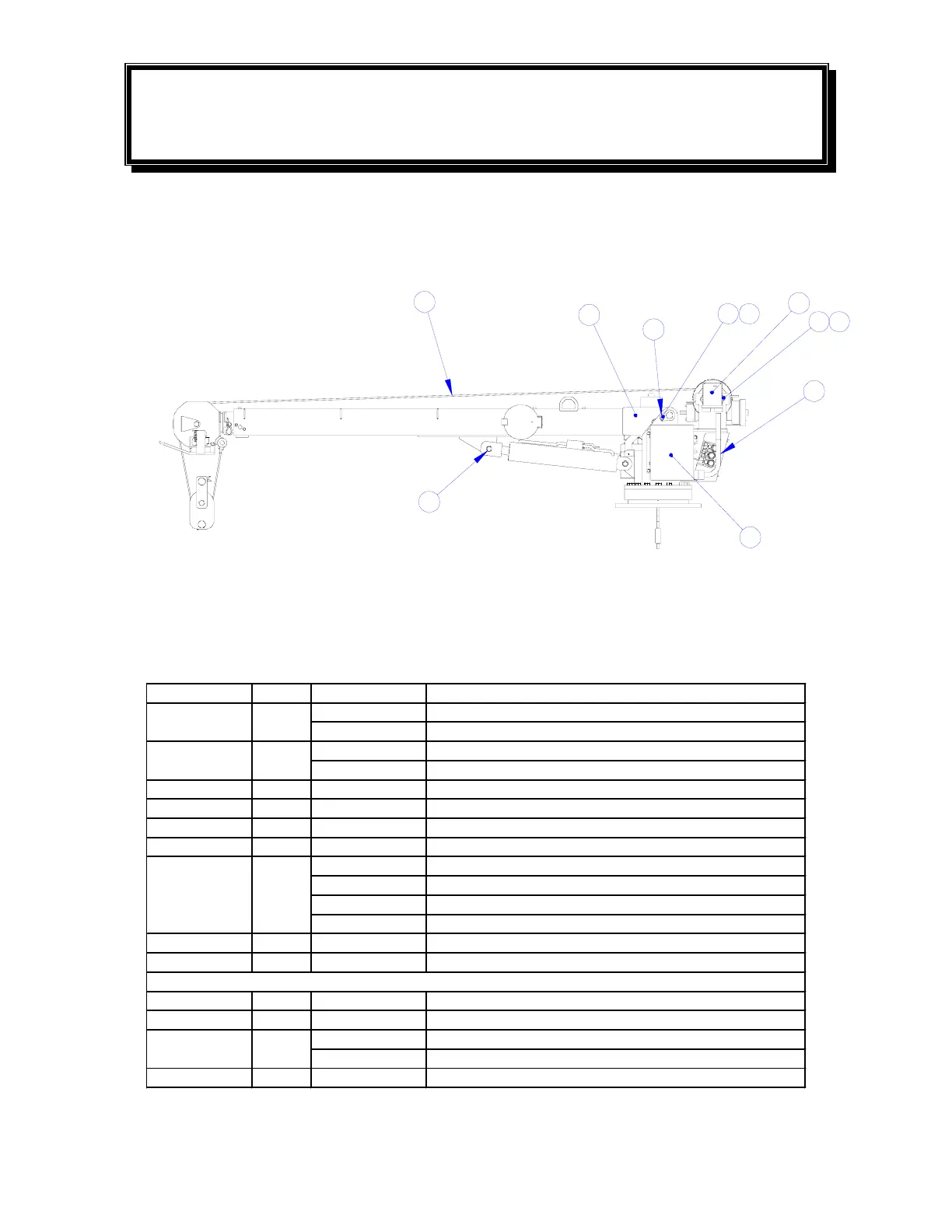

GENERAL ASSEMBLY
3203 SERIES
5-11.0.0
07/10/2003
2
1
3
8 9
4
5
12
10 11
13
ITEM NO. QTY. PART NO. DESCRIPTION
320900000 PEDESTAL ASSEMBLY PR/PRD
320840000 PEDESTAL ASSEMBLY PRX/PRXD
320910000 BOOM ASSEMBLY PR/PRD
320830000 BOOM ASSEMBLY PRX/PRXD
3 1 320823000 PIVOT PIN
4 1 320824000 PIN, LIFT CYLINDER
5 1 320338 CABLE
6 1 320911000 DECAL LAYOUT 3203
320901000 SHIP KIT 3203 PR
320902000 SHIP KIT 3203 PRD
320915000 SHIP KIT 3203 PRX
320916000 SHIP KIT 3203 PRXD
8 2 021100 WASHER SPLK 3/8
9 2 008400 SCW HEX HD 3/8-16 UNC X 3/4 GR 5
10 2 020200 WASHER SPLIT LOCK 1/4
11 2 005500 SCW HH 0.25-20 X 0.75
320920005 RECEIVER, KAR-TECH PRX
320920006 RECEIVER, KAR-TECH PR
13 1 320920003 WIRE HARNESS, KAR-TECH RECEIVER
12 1
71
REMAINING ITEMS ON 'D' MODELS ONLY
1
2
1
1
