Auto Crane 3203 PR - Control Systems; Relay Panel and Wiring

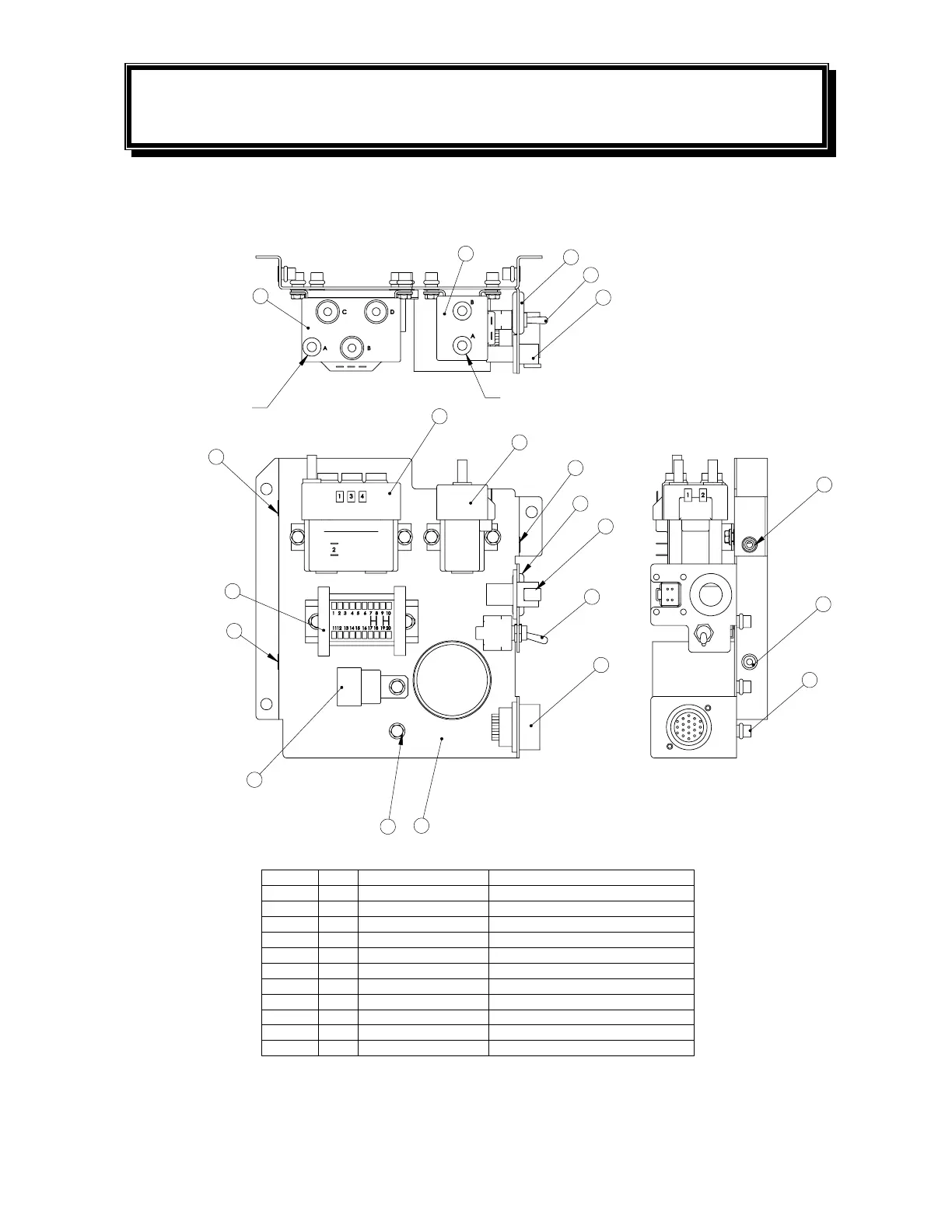

RELAY PANEL ASSEMBLY
3203 SERIES
6-5.0.0
5/22/2003
4
5
3
2
1
7
9
11
10
8
6
6
6
2
3
10
11
9
BOOTS REQUIRED
A, C & D
BOOTS REQUIRED
A & B
6
6
6
ITEM NO. QTY. PART NO. DESCRIPTION
1 1 320919000 RELAY PANEL WELDMENT
2 1 320589 RELAY, HOIST
3 1 320584 RELAY, POWER UNIT
4 1 320355 RELAY, BOSCH
5 1 320804 MODIFIED TERMINAL STRIP 10
6 11 736272 NUTSERT .25UNC X .027-.165 GRIP
7 1 366095 PLUG, 19 PIN
8 8 360493000 SCW WHIZ-LK 1/4NCX 1/2
9 1 360768001 DEUTSCH DT04-4P-L012
10 1 371024 GROMET 3/4" I.D.
11 1 750090 TOGGLE SWITCH (ON-ON)
